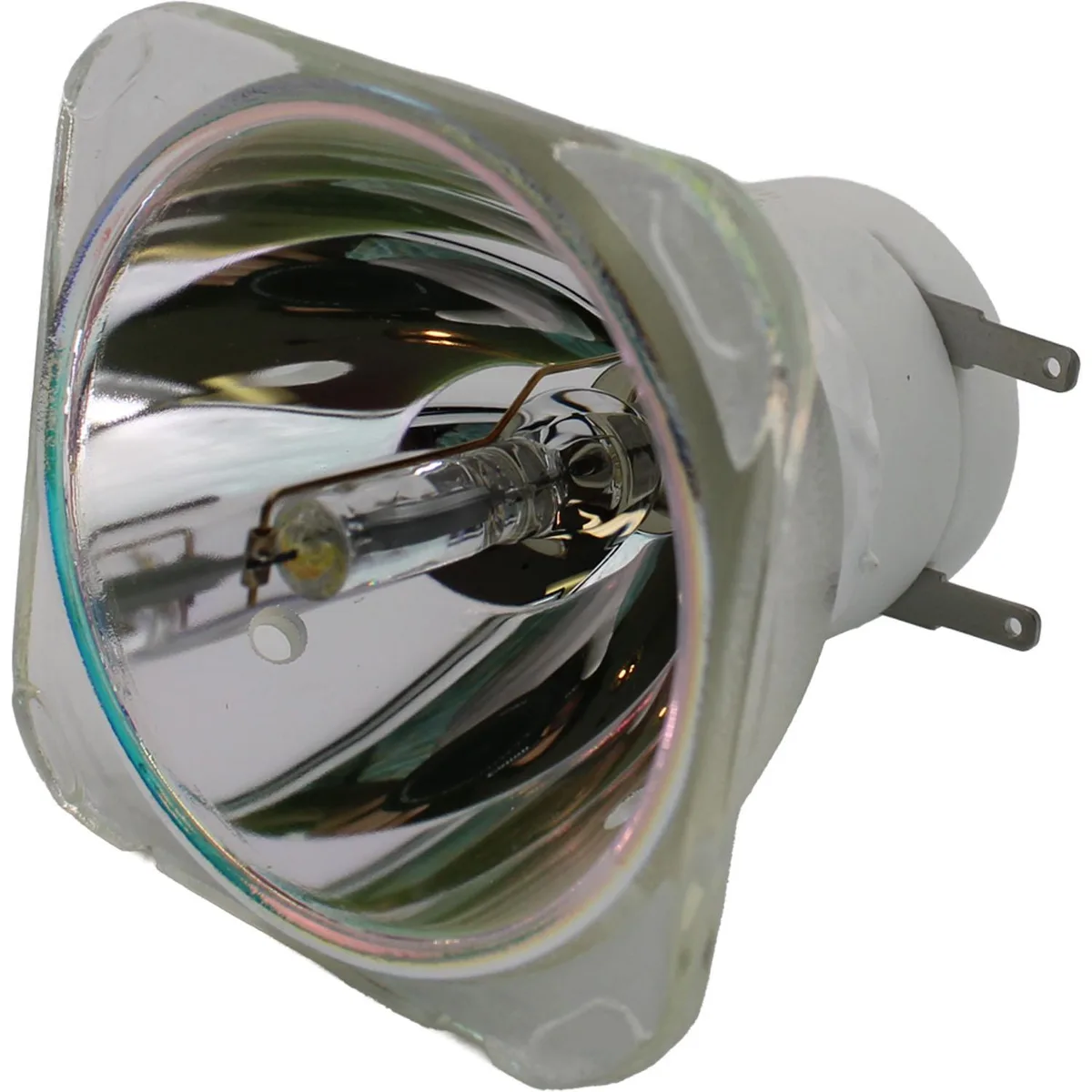

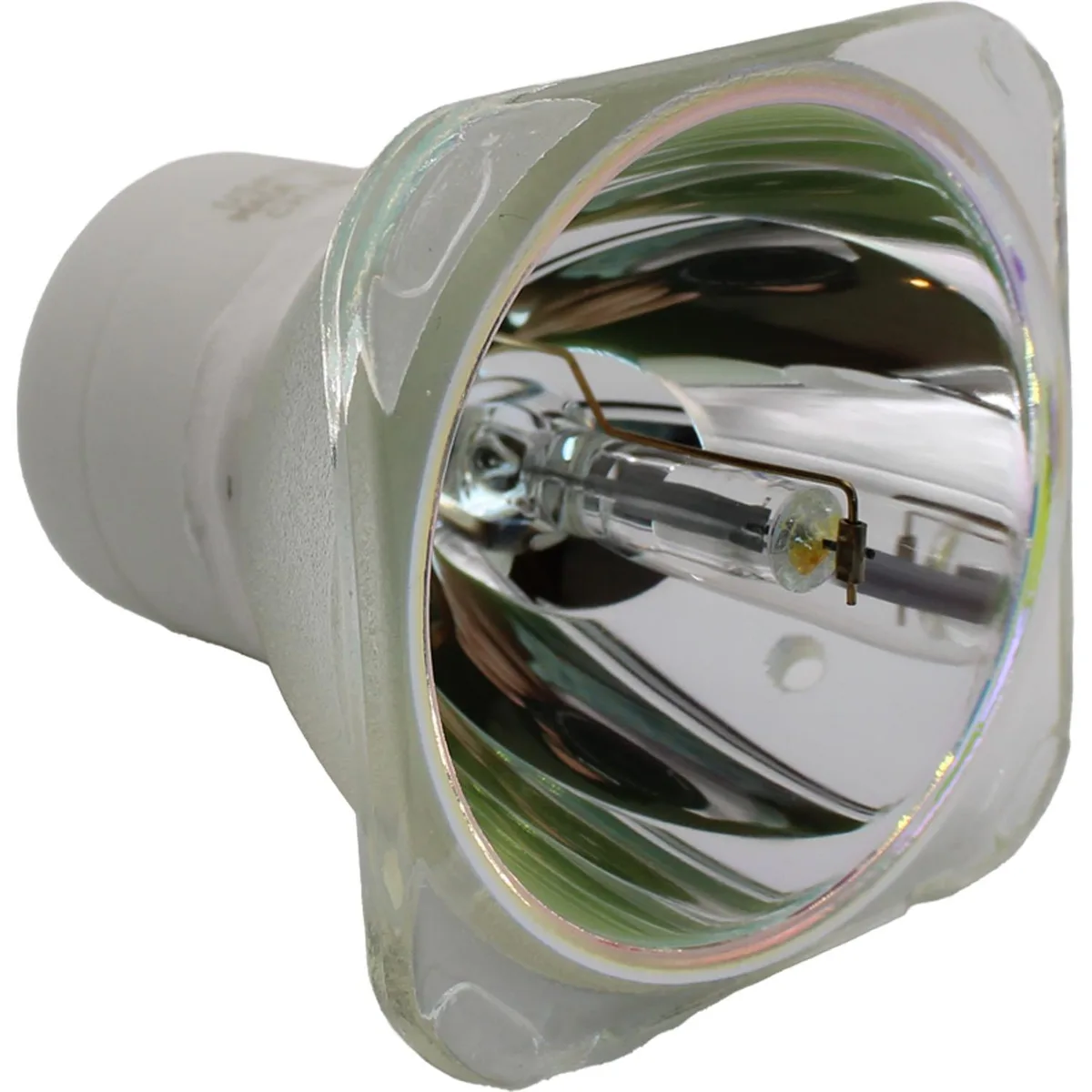

Compact high-pressure arc lamp with metallic electrodes and ceramic base, 51 by 56 millimetres

Jaspertronics

Jaspertronics Artfox Sky Beam 5R-LAMP 189W 8000lm 8000K

SKU CH-DW0A-8N2PN

High-pressure short-arc stage lamp delivering 8000 lm at 8000K for moving-head fixtures

  • TypeProject Lamp
  • ColorAssorted
  • High-pressure short arc delivers 8000 lm output
  • 8000 K colour temperature suits stage and concert use
  • 189 W at 75 V powers moving-head fixtures
  • 9 mm arc gap enables precise beam control
  • 2000 h rated life supports extended performance

Replacement Lamp for Artfox Sky Beam 5R Fixtures

The Jaspertronics Artfox Sky Beam 5R-LAMP is a high-pressure short-arc discharge lamp designed as a direct replacement for the Artfox Sky Beam 5R moving head. It operates at 189 watts and 75 volts with a 0.9 mm arc gap. The lamp produces 8000 lumens at a colour temperature of 8000K for stage and concert use.

Sustained Output and Thermal Stability

During continuous operation the lamp maintains its rated 8000 lumen output and 8000K colour point thanks to the short-arc design and universal burn position. The 34.5 mm working distance ensures consistent optical alignment within the fixture's reflector system. Average rated life reaches 2000 hours under normal cycling conditions.

Cross-Reference Compatibility Decides Fit

The single specification that determines whether this is the correct part is the manufacturer cross-reference list, which includes Clay Paky Sharpy, Elation Platinum Beam 5R series, Martin Rush MH3, and multiple Artfox models. Fixtures not listed will not strike or align correctly with this lamp.

Highlights

  • High-pressure short arc delivers 8000 lm output
  • 8000 K colour temperature suits stage and concert use
  • 189 W at 75 V powers moving-head fixtures
  • 9 mm arc gap enables precise beam control
  • 2000 h rated life supports extended performance

Specifications

BrandJaspertronics
ModelArtfox Sky Beam 5R-LAMP
Part NumberArtfox Sky Beam 5R-LAMP
TypeProject Lamp
ColorAssorted

Questions about this item

How much heat and power does the 189 W, 75 V lamp generate during continuous stage use?

The lamp draws 189 watts at 75 volts and produces a high-pressure short arc that runs very hot; fixtures must provide forced-air cooling rated for this wattage.

Which moving-head fixture and socket does this 5R lamp with a 34.5 mm working distance require?

It fits moving-head fixtures that accept a 5R short-arc lamp with a 34.5 mm working distance, such as the Artfox Sky Beam 5R and listed compatible models.

Will this 8000 K, 8000 lm lamp match the colour and output of older 5R lamps already in my rig?

Yes — it delivers 8000 lumens at 8000 K with a 0.9 mm arc gap, matching the colour temperature and output of other 5R lamps in the same fixtures.
