Jaspertronics
Jaspertronics Artfox Scan Light 5R-LAMP 189W 8000lm 8000K 2000h
High-pressure short-arc stage lamp delivering 8000 lm at 8000 K from 189 W with a 2000-hour rated life
- TypeProject Lamp
- ColorAssorted
- High 8000 lm output for bright stage projection
- 8000K color temperature delivers crisp white light
- 189W power draw balances output and efficiency
- 2000h rated life supports extended show runs
- Universal burn position allows flexible fixture mounting

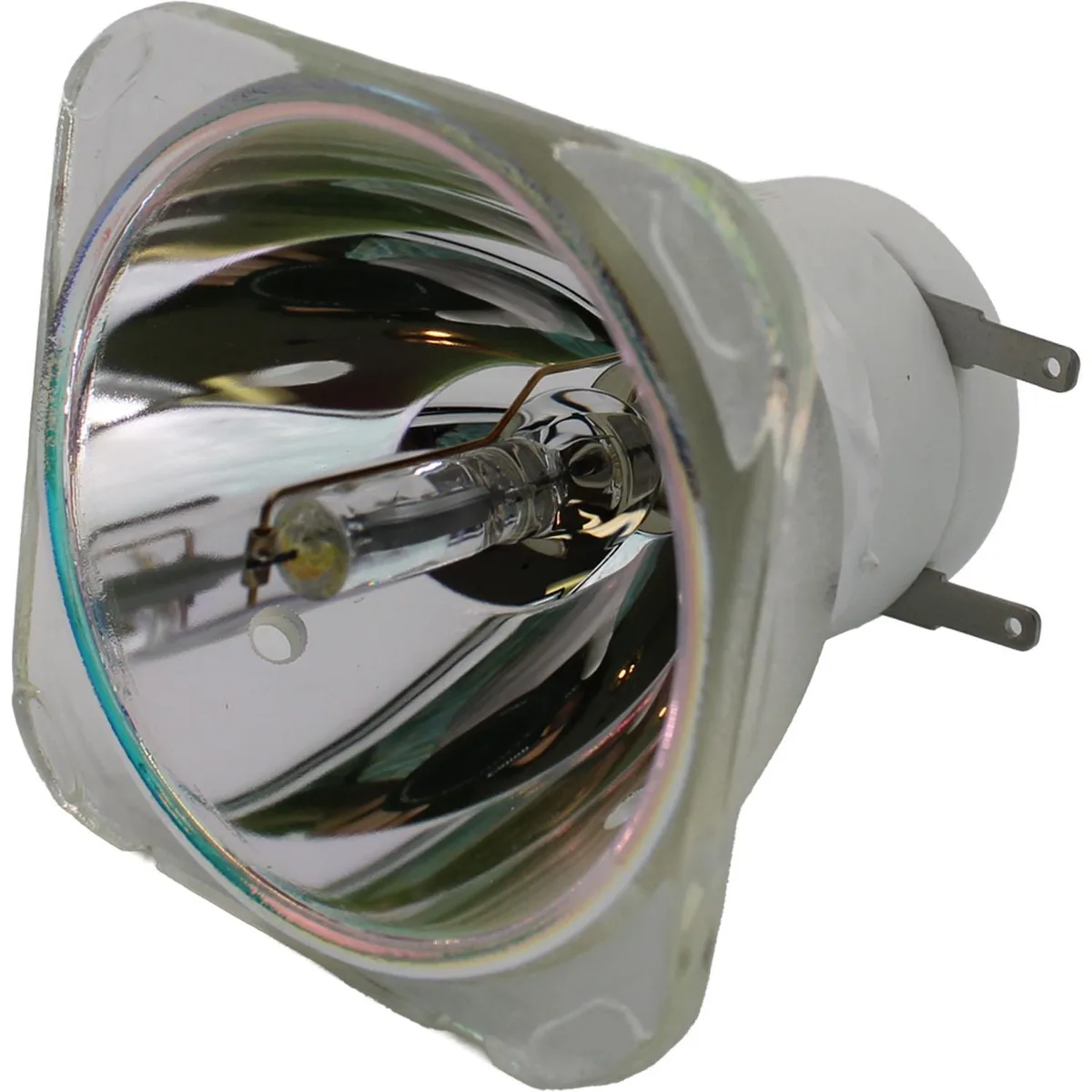

Replacement Lamp for Artfox Scan Light 5R
This 189 W high-pressure short-arc discharge lamp is a direct replacement for the Artfox Scan Light 5R moving-head fixture. It delivers 8000 lumens at a cool 8000 K colour temperature, making it suitable for stage, concert and nightclub lighting applications where high output and a crisp white beam are required.
Universal Burn Position and Compact Arc
The lamp operates in any burn position, simplifying installation in moving-head units that rotate through multiple axes. Its 0.9 mm arc gap and 34.5 mm working distance match the optical system of compatible fixtures, so alignment is straightforward when the lamp is seated correctly in the reflector assembly.
2000-Hour Rated Life with High Output Headroom
At the rated 2000 hours the lamp maintains its 8000 lm output and 8000 K colour point for typical show cycles. Beyond that interval lumen depreciation and colour shift increase, so operators planning extended runs or continuous daily use should schedule a replacement before output drops below design requirements.
Highlights
- High 8000 lm output for bright stage projection
- 8000K color temperature delivers crisp white light
- 189W power draw balances output and efficiency
- 2000h rated life supports extended show runs
- Universal burn position allows flexible fixture mounting
Specifications
| Brand | Jaspertronics |
|---|---|
| Model | Artfox Scan Light 5R-LAMP |
| Part Number | Artfox Scan Light 5R-LAMP |
| Type | Project Lamp |
| Color | Assorted |
Questions about this item
How can I verify the lamp is operating correctly after installation?
The lamp should reach its rated 8000 lm output at 8000K colour temperature when powered at 189 W and 75 V; a stable arc at the 0.9 mm gap with universal burn position indicates proper function.
What comes in the box and what must be purchased separately?
The package contains the U-Stage 5R high-pressure short-arc lamp (part 5002464) only; a compatible moving-head fixture such as the Artfox Scan Light 5R or any listed Clay Paky, Elation, Martin, Mega Lite, ADJ or Moown model must be supplied separately.
Which version of this lamp should I choose for my fixture?
Select the 189 W, 8000 lm, 8000K, 2000 h rated-life version (product code 5002464) when your moving head requires a 5R-class lamp with a 34.5 mm working distance and 51 x 56 mm overall dimensions.
