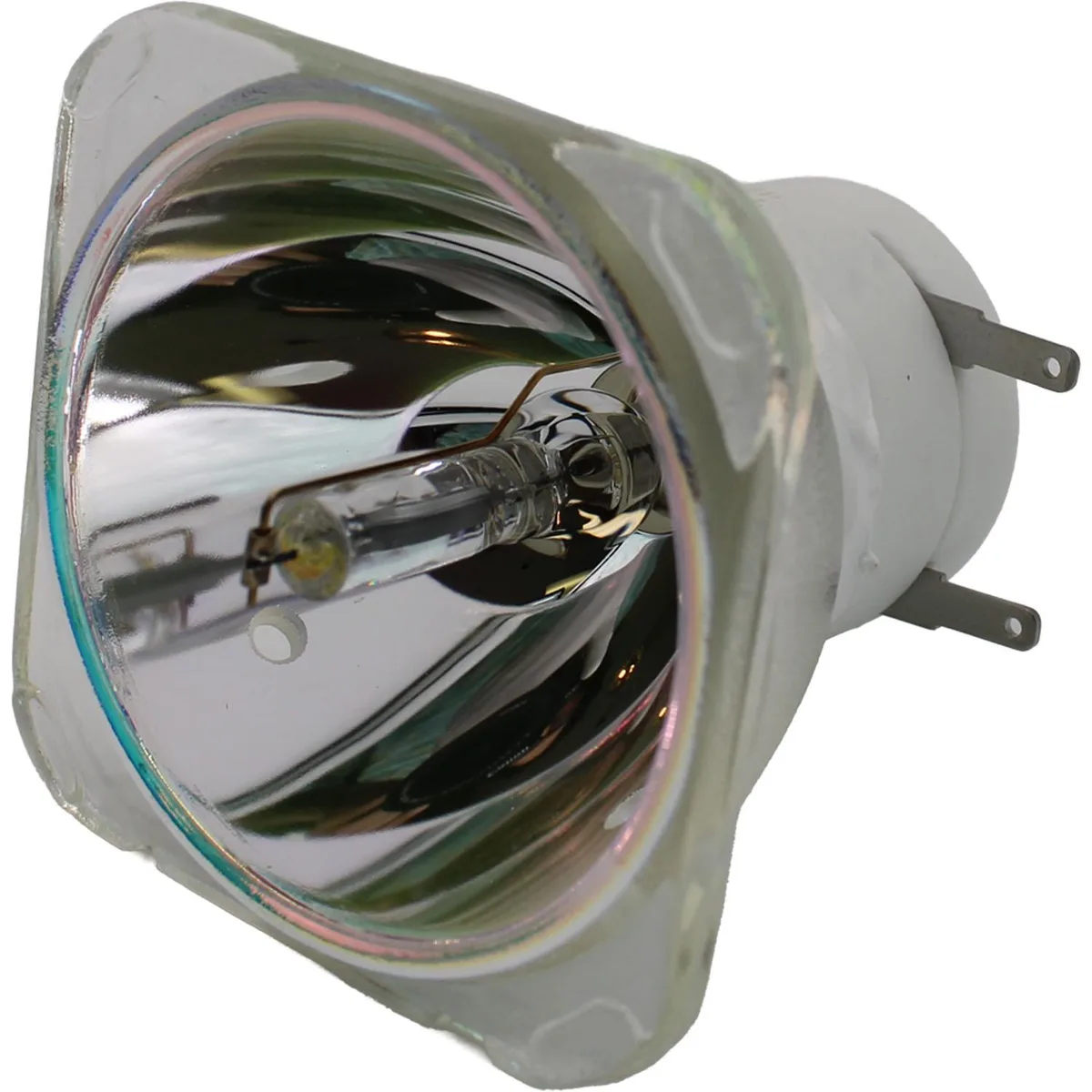

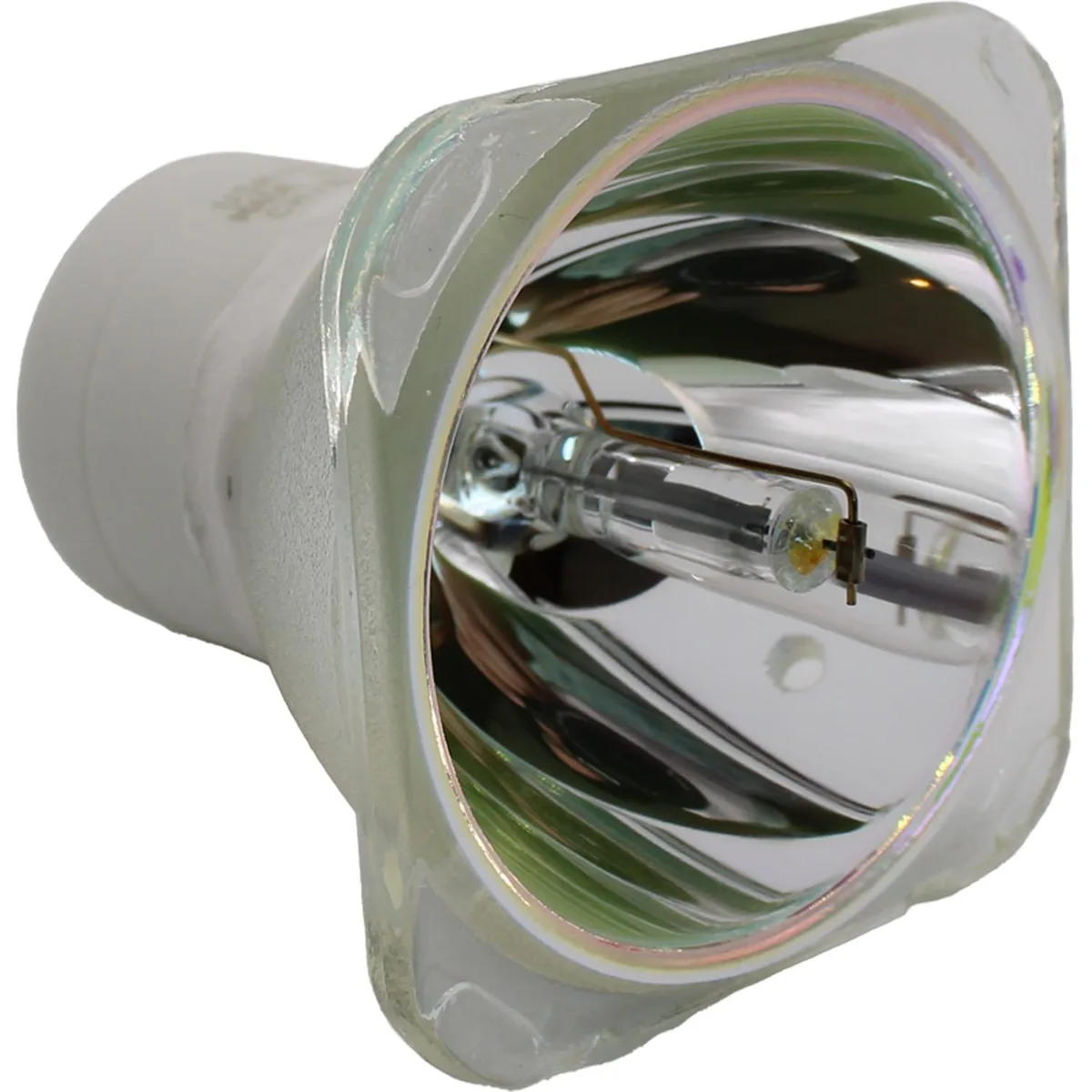

Compact high-pressure short arc stage lamp with metal base and quartz envelope, 51 by 56 mm

Jaspertronics

Jaspertronics ADJ Ninja 5RX-LAMP 189W 8000K 2000h

SKU CH-XYQ1-GHJ5B

High-pressure short-arc stage lamp delivering 8000 lumen at 8000K with a 2000-hour rated life

  • TypeProject Lamp
  • ColorAssorted
  • 8000 lumen output for bright stage illumination
  • 8000K colour temperature delivers crisp white light
  • 189W high-pressure short arc lamp technology
  • 2000 hour rated life reduces replacement frequency
  • Universal burn position allows flexible fixture mounting

Stage-ready discharge lamp

The Jaspertronics ADJ Ninja 5RX-LAMP is a high-pressure short-arc discharge lamp built for professional moving-head fixtures. It delivers 8000 lumens at an 8000K colour temperature from a 189W arc with a 0.9mm gap. The lamp operates at 75V and is rated for 2000 hours of service in stage, concert and nightclub environments.

Universal burn position and thermal profile

Rated for universal burn position, the lamp maintains stable output regardless of fixture orientation during a show. Its compact 51 x 56mm envelope and 34.5mm working distance allow it to fit the optical systems of the listed moving heads without additional spacing. The 189W power draw is concentrated in the short arc, so the fixture’s cooling system must handle the sustained thermal load.

Direct replacement for 5R moving heads

This lamp replaces the U-Stage NSL-189 5R in fixtures such as the ADJ Ninja 5RX, Vizi Spot 5RX and Vizi Beam 5RX, plus the listed Clay Paky, Elation, Martin and Mega Lite models. The upgrade is worth it when an existing 5R lamp has reached its 2000-hour rating or shows output decline, restoring full intensity and colour consistency for the next production cycle. Buyers needing a different wattage or base type should look elsewhere.

Highlights

  • 8000 lumen output for bright stage illumination
  • 8000K colour temperature delivers crisp white light
  • 189W high-pressure short arc lamp technology
  • 2000 hour rated life reduces replacement frequency
  • Universal burn position allows flexible fixture mounting

Specifications

BrandJaspertronics
ModelADJ Ninja 5RX-LAMP
Part NumberADJ Ninja 5RX-LAMP
TypeProject Lamp
ColorAssorted

Questions about this item

How do I install the Jaspertronics ADJ Ninja 5RX-LAMP 189W 8000K 2000h into a moving head fixture, and what step is often missed?

Align the lamp base with the fixture socket, insert firmly until seated, and ensure the 34.5 mm working distance matches the optical path; the step often missed is verifying the universal burn position suits the fixture orientation.

What maintenance or replacement will the Jaspertronics ADJ Ninja 5RX-LAMP 189W 8000K 2000h need later?

Replace the lamp after approximately 2000 hours of operation; no other user-serviceable parts exist inside the sealed arc tube assembly.

What limit appears first when running the Jaspertronics ADJ Ninja 5RX-LAMP 189W 8000K 2000h continuously at full output?

The 2000-hour rated life is the primary limit; lumen output and colour stability will degrade as the arc gap erodes toward end of life.
