Jaspertronics

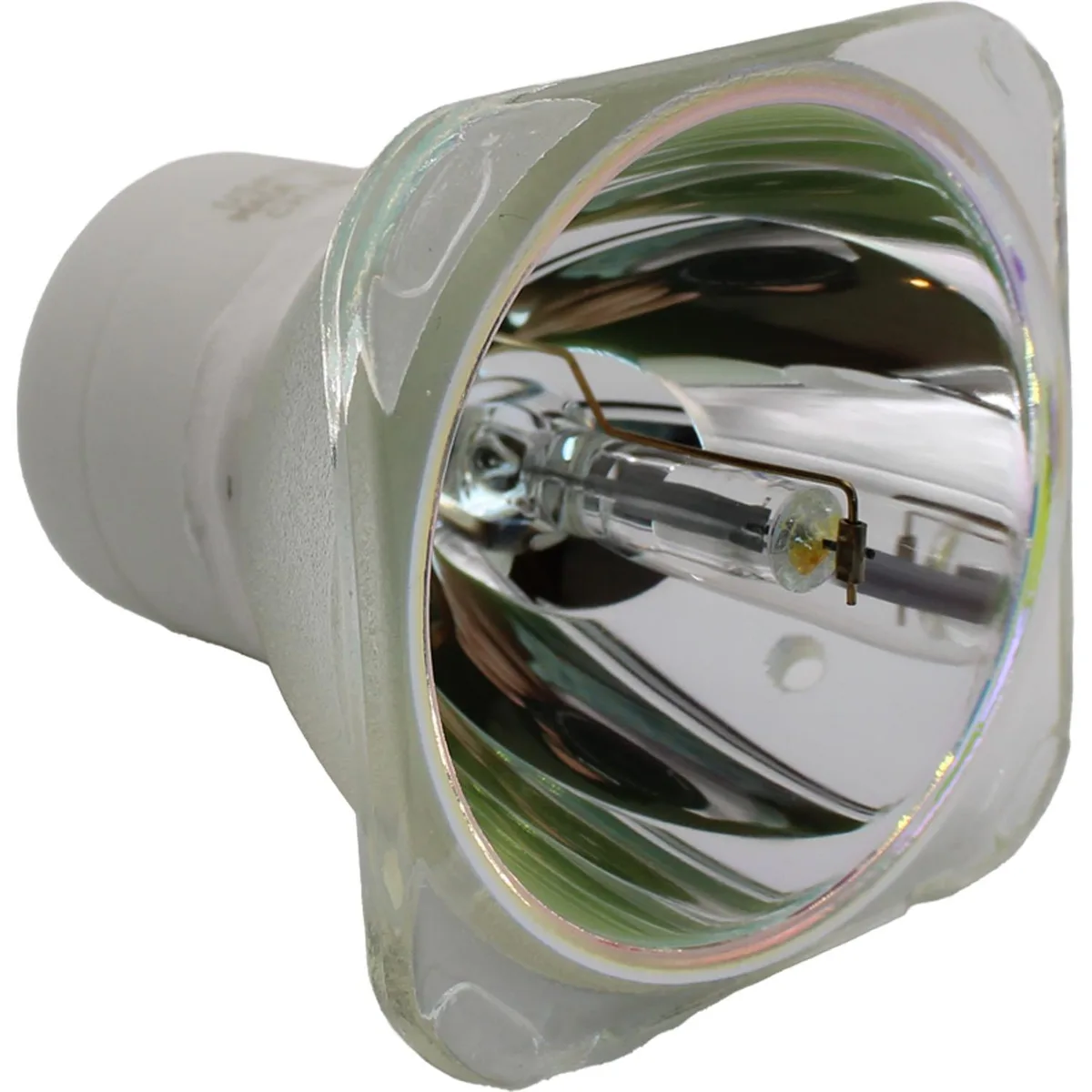

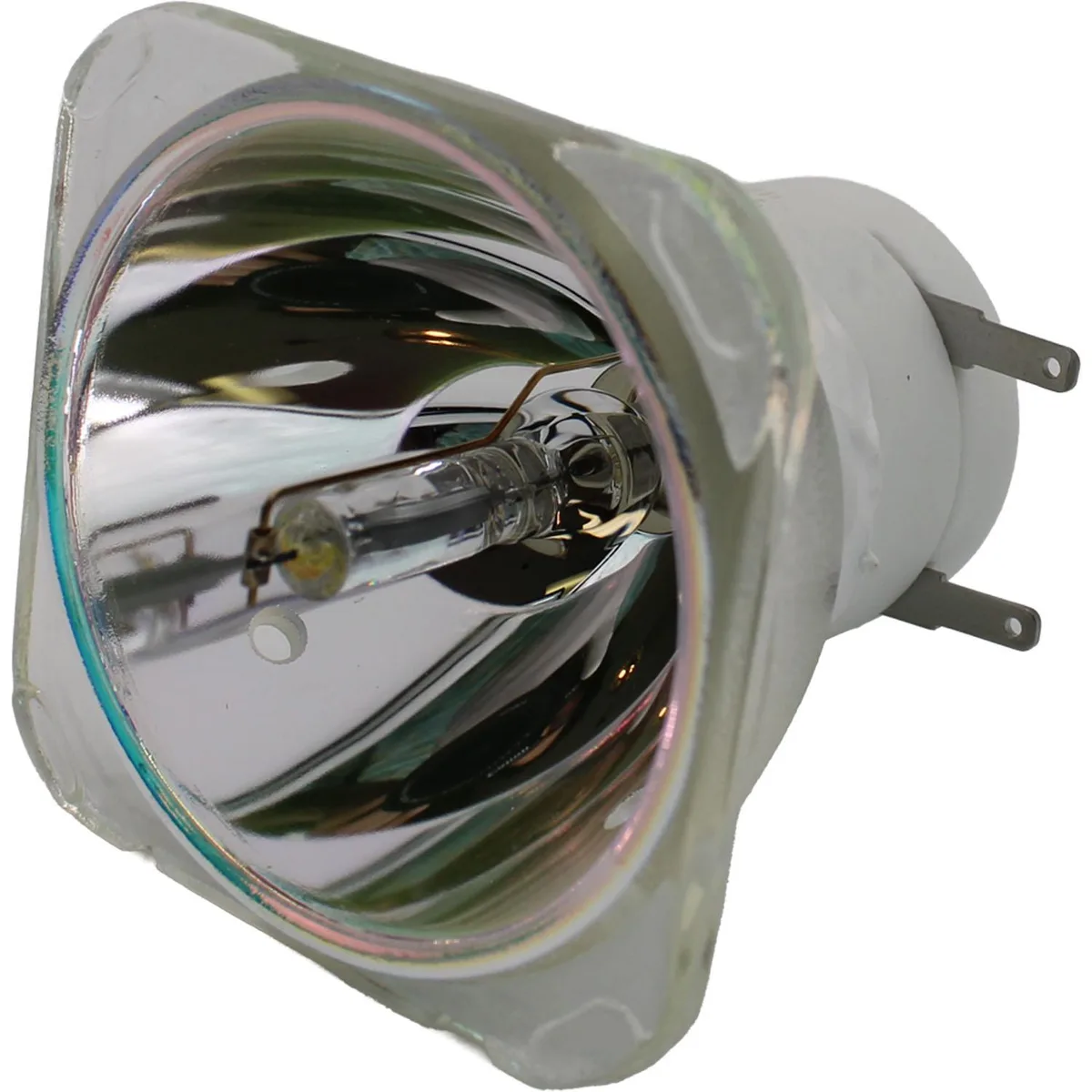

Jaspertronics 5R High Pressure Stage Lamp 189W 8000lm 8000K
High-pressure short-arc stage lamp delivering 8000 lm at 8000K with a 2000-hour rated life for compatible moving-head fixtures
- TypeProject Lamp
- ColorAssorted
- 8000 lm output delivers intense stage brightness
- 189W high-pressure arc lamp optimised for moving-head fixtures
- 8000K colour temperature produces crisp cool-white light
- 2000-hour rated life supports extended show runs
- Universal burn position allows flexible fixture mounting
Jaspertronics 5R Stage Lamp – Compatible Fixtures
The Jaspertronics 5R high-pressure short-arc lamp serves moving-head fixtures such as the Elation Platinum Spot 5R, Clay Paky Sharpy and ADJ Vizi Beam 5RX. It delivers a 8000 lumen output at a colour temperature of 8000K from a 189W arc operating at 75V. The lamp is rated for an average life of 2000 hours and accepts a universal burn position.
Sustained Output Behaviour
During continuous operation the 0.9 mm arc gap maintains stable high-pressure discharge, keeping lumen output consistent across the rated 2000-hour lifespan. The 34.5 mm working distance ensures the optical path remains aligned in fast-moving heads without intensity drop-off. Universal burn position allows any fixture orientation without affecting arc stability or colour rendering.
Thermal and Power Profile
The lamp draws 189W at 75V, concentrating heat within the compact 51 x 56 mm envelope. High-pressure short-arc design requires forced-air cooling in the host fixture to maintain the 2000-hour rating. Power consumption remains steady during extended shows, and the universal burn position prevents hot-spot formation regardless of fixture tilt.
Highlights
- 8000 lm output delivers intense stage brightness
- 189W high-pressure arc lamp optimised for moving-head fixtures
- 8000K colour temperature produces crisp cool-white light
- 2000-hour rated life supports extended show runs
- Universal burn position allows flexible fixture mounting
Specifications
| Brand | Jaspertronics |
|---|---|
| Model | Elation Platinum Spot 5R-LAMP |
| Part Number | Elation Platinum Spot 5R-LAMP |
| Type | Project Lamp |
| Color | Assorted |
Questions about this item
How much heat and power does the 189W 8000K lamp produce during continuous stage use?
The lamp draws 189 watts at 75 volts with a 0.9 mm arc gap, delivering 8000 lumens at 8000K colour temperature; universal burn position allows any orientation for consistent thermal performance.
What fixture or socket must I already own to install this 5R discharge lamp?
It fits moving-head fixtures that accept a 5R high-pressure short-arc lamp with a 34.5 mm working distance and 51 x 56 mm envelope, including Elation Platinum Spot 5R, Clay Paky Sharpy and listed ADJ, Martin, Mega Lite and Artfox models.
Will the 5R lamp work reliably alongside older 2R or 7R fixtures in the same rig?
The 5R lamp is rated for 2000 hours average life at 189W output; mixing with different wattage fixtures is possible but each fixture must be designed for the 5R specification to maintain correct optical alignment and power supply matching.
