Jaspertronics

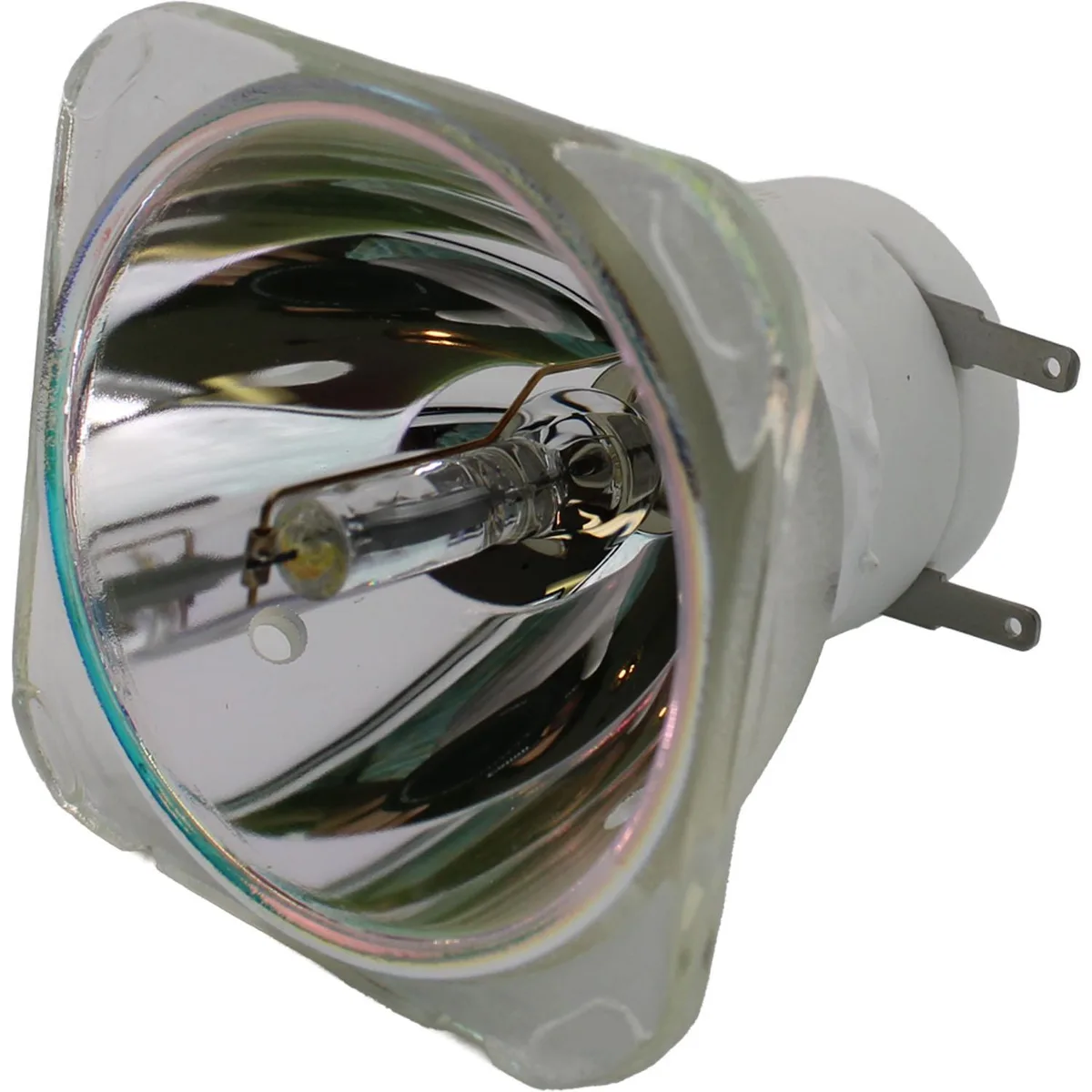

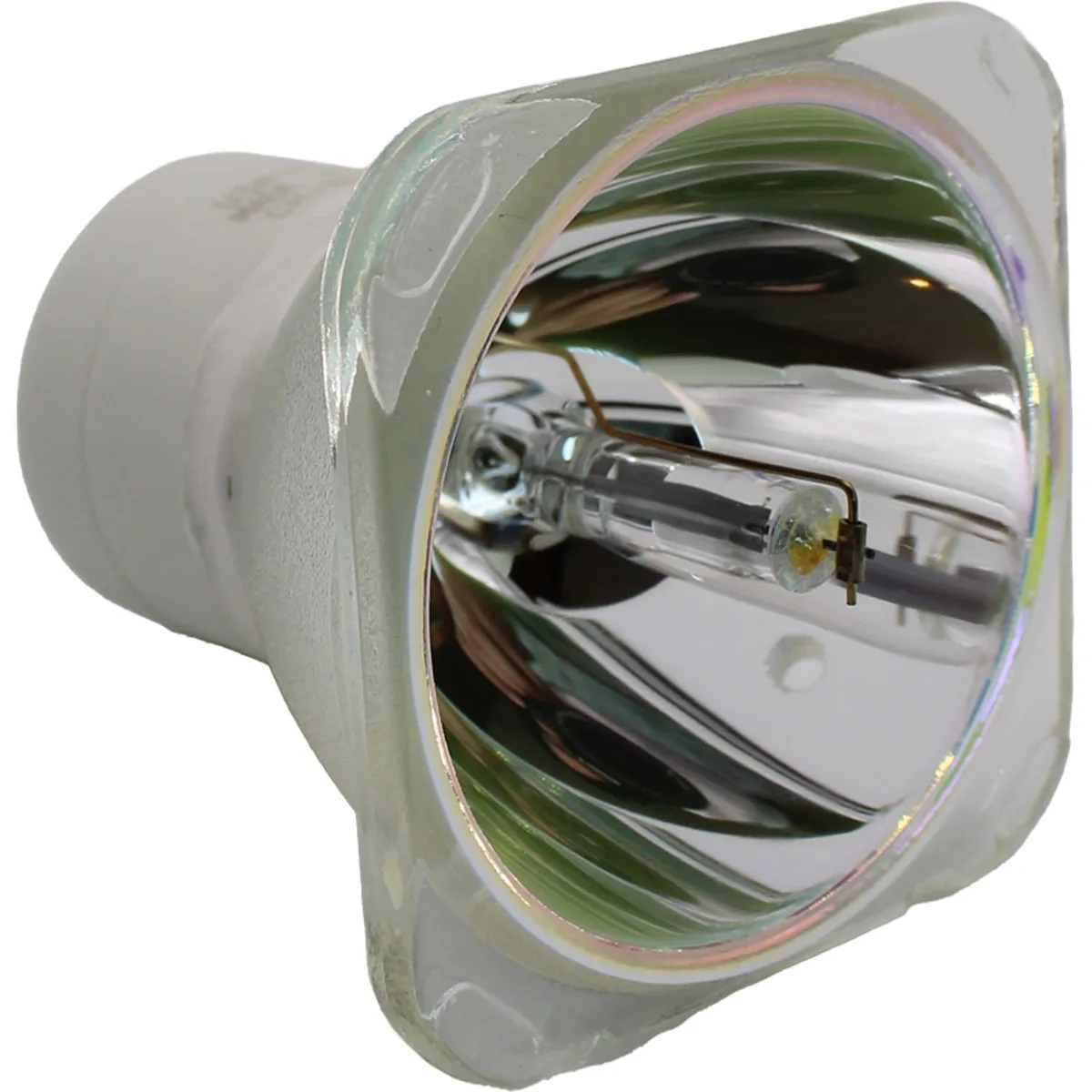

Jaspertronics 5002464 189W 8000lm standard bulb
A high-pressure discharge lamp delivering 8000 lumens at 8000K colour temperature with a 2000-hour rated life for moving-head stage fixtures
- TypeProject Lamp
- ColorAssorted
- High lumen output for bright stage effects with 8000 lm
- High colour temperature delivers crisp white light at 8000K
- Universal burn position allows flexible fixture mounting
- 9 mm arc gap enables precise optical control
- 2000 hour rated life supports extended show runs
High-pressure stage lamp for moving fixtures
The Jaspertronics 5002464 is a 189W super high-pressure discharge lamp built for professional moving-head stage fixtures. It delivers 8000 lumens at an 8000K colour temperature with a universal burn position for flexible mounting.
Sustained output at 0.9 mm arc gap
The compact 0.9 mm arc maintains stable high-intensity output throughout extended shows rather than fading after a brief peak. Average rated life reaches 2000 hours under continuous operation at 75V and 34.5 mm working distance.
Fixture compatibility limits
The 51 x 56 mm envelope fits the optical chambers of listed Clay Paky, Elation, Martin, Mega Lite, ADJ, Moown, Artfox and Sagitter moving heads. Fixtures outside this approved list may not align the arc correctly or manage the thermal load.
Highlights
- High lumen output for bright stage effects with 8000 lm
- High colour temperature delivers crisp white light at 8000K
- Universal burn position allows flexible fixture mounting
- 9 mm arc gap enables precise optical control
- 2000 hour rated life supports extended show runs
Specifications
| Brand | Jaspertronics |
|---|---|
| Model | 5002464 |
| Part Number | 5002464 |
| Type | Project Lamp |
| Color | Assorted |
Questions about this item
How much power and heat does the 189 W lamp produce when running continuously in a moving-head fixture?
It draws 189 W at 75 V and generates high-pressure arc heat; ensure the fixture’s cooling fans and thermal sensors are clean and functional for all-day operation.
Which moving-head fixtures already support the 5R lamp with a 0.9 mm arc gap and 34.5 mm working distance?
Compatible models include Clay Paky Sharpy, Elation Platinum Beam 5R and 5R Pro, Martin Rush MH3, Mega Lite Medusa 4x5R, ADJ Vizi Spot 5RX and Beam 5RX, plus Artfox and Sagitter 5R fixtures.
Will this 8000 K, 8000 lm lamp match the colour and output of older 5R lamps still in my rig?
Yes — it shares the same 8000 K colour temperature, 0.9 mm arc gap and 34.5 mm working distance, so output and focus stay consistent with existing 5R units.
