Compact 200 W discharge arc lamp, bare bulb, 51 by 51 by 61 mm

Jaspertronics

Jaspertronics 200W 5R Moving Head Discharge Lamp for Martin Professional Rush MH 3 Fixture

SKU CH-71HQ-EAA93

A 200 W short-arc discharge lamp with 7 200 lm output, 8 000 K colour temperature and 3 000 h rated life fits the Martin Professional Rush MH 3 fixture

  • TypeProject Lamp
  • Weight0.2000
  • Delivers 7,200 lumens for bright stage output
  • 8,000 K colour temperature creates crisp white light
  • 200 W discharge arc produces high-intensity beam
  • 3,000-hour average life reduces replacement frequency
  • Compact 51 x 51 x 61 mm fits Martin Rush MH 3

Compatible Fixture

This 200 W discharge lamp is built for the Martin Professional Rush MH 3 moving head. It supplies a 7 200 lumen beam at 8 000 K with a 1.1 mm arc gap, making it suitable for houses of worship, clubs, concerts and theatre installations where high intensity output is required.

Capacity And Headroom

Rated life reaches 3 000 hours at 75 V and 200 W, with a CRI of 70 and any burning position allowed. The compact 51 x 51 x 61 mm envelope and 34.5 mm working distance fit the fixture’s optical path, but output will diminish after the rated hours and the lamp cannot exceed its fixed wattage or lumen rating.

Bare Bulb Supply

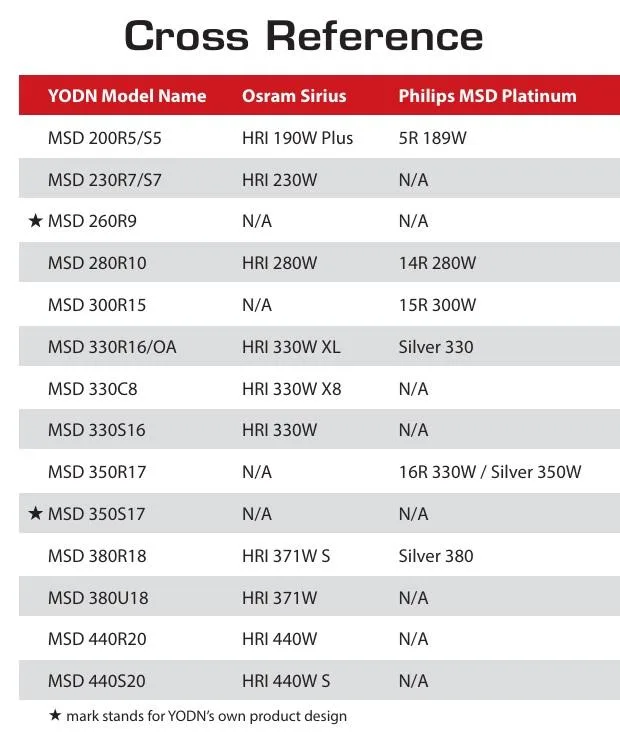

The unit ships as a bare MSD200R5 / MSD200S5 bulb without housing, cables or alignment tools. Installers must reuse the original lamp module and verify seating in the Rush MH 3 socket; no software, firmware or additional accessories are included to modify performance.

Highlights

  • Delivers 7,200 lumens for bright stage output
  • 8,000 K colour temperature creates crisp white light
  • 200 W discharge arc produces high-intensity beam
  • 3,000-hour average life reduces replacement frequency
  • Compact 51 x 51 x 61 mm fits Martin Rush MH 3

Specifications

BrandJaspertronics
ModelMartin Professional Rush MH 3-LAMP
Part NumberMartin Professional Rush MH 3-LAMP
TypeProject Lamp
Weight0.2000

Questions about this item

Will the 200 W 5R lamp run correctly in my existing Martin Professional Rush MH 3 fixture without modifications?

The lamp is built for the Martin Professional Rush MH 3 and matches the fixture's 75 V, 200 W electrical requirements and 1.1 mm arc gap, so it operates as a direct replacement.

What should I check to confirm the lamp is performing correctly after installation?

Verify the fixture strikes reliably at 75 V, produces the rated 7,200 lm output at 8,000 K, and runs in any burning position without flicker during the first hours of use.

Does the package include the complete lamp module with housing or only the bare bulb, and do I need a separate reflector or cable?

The item is supplied as a bare YODN 5R 200 W discharge bulb measuring 51 × 51 × 61 mm with a 34.5 mm working distance; any reflector, housing or connector must be reused from the old module or sourced separately.
