Jansicotek
Jansicotek YCY-2353 video capturing device
Captures HDMI video up to 4K at 30 Hz and records at 1080p 60 Hz via USB 3.0 with 3.5 mm microphone input
- InterfaceUSB 3.0
- FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
- Resolution Support1080P
- Camera ResolutionUp to 1080p Video
- ColorBlack
- VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input
- Captures full HD at 1080p 60Hz for smooth recordings
- Accepts 4K 30Hz HDMI input from consoles and cameras
- USB 3.0 delivers 300 to 350 MB/s throughput
- Works on Windows, macOS 10.9+, Linux and Android
- 5 mm TRS mic input adds live commentary

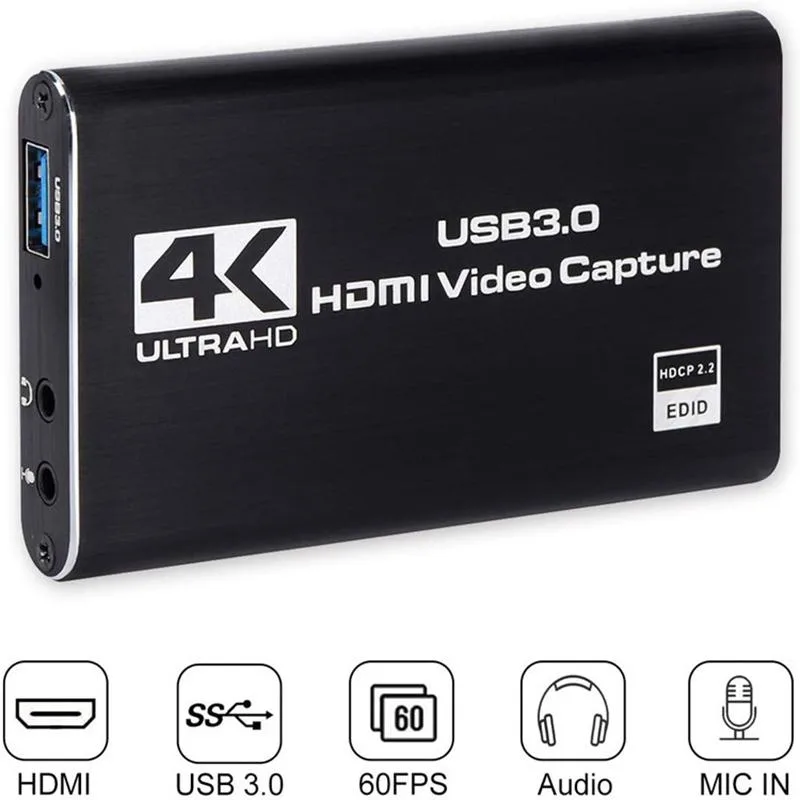

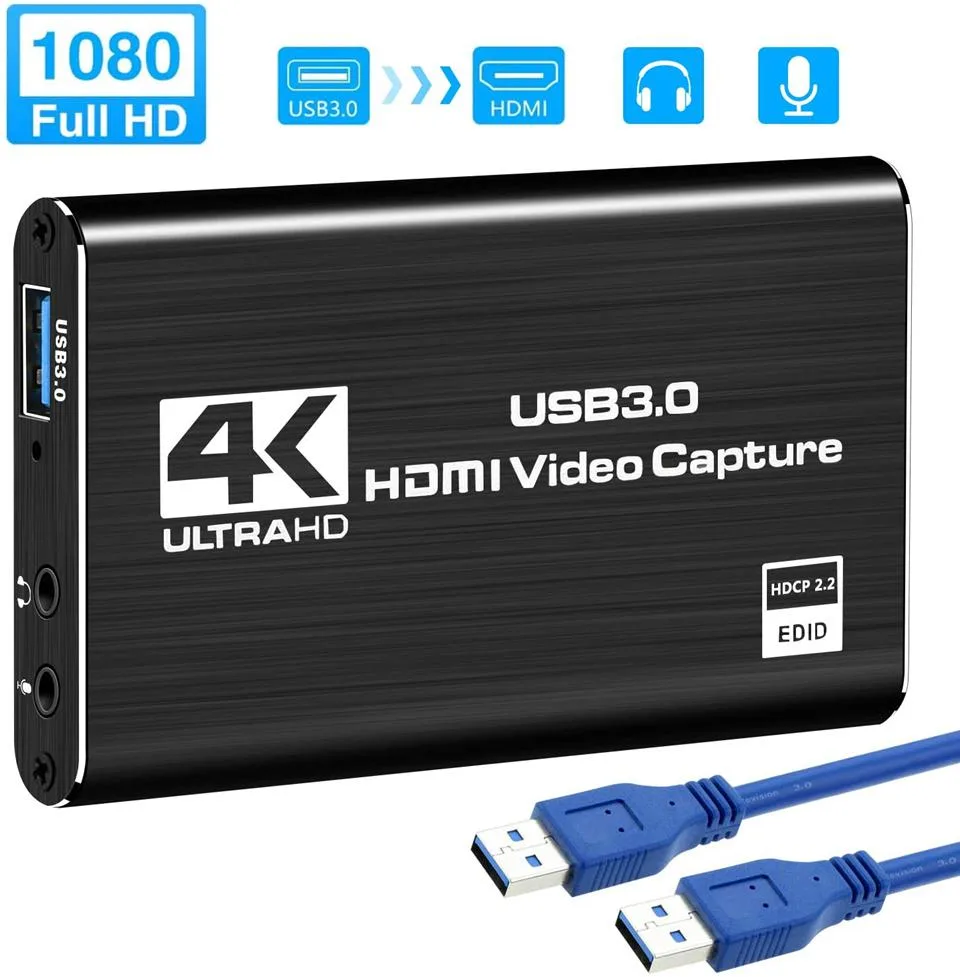

Jansicotek YCY-2353 capture card
The Jansicotek YCY-2353 is a USB 3.0 video capturing device that records up to 1080p at 60 Hz while accepting HDMI input signals up to 4K at 30 Hz. It targets streamers, educators and conference users who need a compact way to bring an HDMI source into Windows, macOS, Linux or Android without external power.
3.5 mm TRS microphone input and UAC/UVC support
A built-in 3.5 mm TRS microphone jack lets you mix live commentary onto the captured footage, though party chat audio is not recorded. UAC and UVC compliance means the card works as a standard audio and video class device in OBS, VLC, PotPlayer and similar software without proprietary drivers on most systems; Windows 7 may still require a manual driver install.
Aluminium shell with HDMI pass-through and S-Video
The black aluminium enclosure dissipates the ≤ 2.5 W draw without a fan, and the HDMI output mirrors the source to a monitor, projector or TV for zero-latency local viewing. An S-Video in/out pair adds legacy analogue connectivity, while the single USB 3.0 port delivers 300–350 MB/s throughput and falls back to USB 2.0 at 40 MB/s when needed.
Highlights
- Captures full HD at 1080p 60Hz for smooth recordings
- Accepts 4K 30Hz HDMI input from consoles and cameras
- USB 3.0 delivers 300 to 350 MB/s throughput
- Works on Windows, macOS 10.9+, Linux and Android
- 5 mm TRS mic input adds live commentary
Specifications
| Brand | Jansicotek |
|---|---|
| Series | YCY-2353 |
| Model | YCY-2353 |
| Interface | USB 3.0 |
| Format | Output Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more |
| Resolution Support | 1080P |
| Camera Resolution | Up to 1080p Video |
| Color | Black |
| Video | The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz; |
| Audio | support 48 KHz PCM audio sampling rate |
| HDMI | 1 Input/1 Output |
| USB Port | 1 |
| S-Video | 1 Input/1 Output |
| LED Indicator | Yes |
| Display | HDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically. |
| Compatibility | The HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok. |
| System Requirements | Windows / Android / MacOS/ Linux ect. |
| Power Consumption | <= 2.5W |
| Power Supply | NO need external power supply |
| Specification | 1. Input interface: 1 HDMI interface; 2. Output interface: USB3.0, 300 ~ 350MB / s throughput; 3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480 4. HDMI sound input: LPCM sound signal; 5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color; 6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 / 1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10 |
| Feature | 1. It can capture single HD HDMI video signal; 2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz; 3. Support MJPEG and YUY2; 4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate; 5. Some win7 need to install the driver; 6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems; 7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth); 8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate; 9. Can automatically detect the i |
| Dimensions | 4.88 x 4.65 x 2.52 inches |
| Weight | 0.035 ounces |
| Package Content | 1 x4K USB3.0 HDMI Audio Video Capture Card; 1 x HDMI Cable; 1xUSB 3.0 Cable; 1 x User Manual; |
| Option | Advanced |
Questions about this item
Will the 3.5 mm TRS microphone jack wear out or need replacement after heavy daily streaming?
The jack is a standard 3.5 mm TRS connector rated for thousands of insertions; no scheduled replacement is required, though heavy plugging cycles could eventually loosen the port.
At what point does the USB 3.0 link saturate when capturing 1080p 60 Hz footage continuously?
The device delivers 300–350 MB/s over USB 3.0; 1080p 60 Hz YUY2 fits well within that ceiling, so the bus saturates only if multiple high-bitrate sources are added.
How warm does the aluminium case get and does the fan spin up during an all-day Twitch broadcast?
Power draw is ≤ 2.5 W with no external supply, so the enclosure stays barely warm to the touch and there is no fan to spin up.
