Small black rectangular capture box with HDMI ports and USB 3.0 cable

Jansicotek

Jansicotek YCY-2353 1080p 60Hz USB 3.0 video capturing device

SKU CH-SW10-8D828

Capture HDMI sources at 1080p 60Hz with USB 3.0 throughput and 3.5 mm mic input for commentary

  • InterfaceUSB 3.0
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input
  • Capture 1080p at 60Hz for smooth recordings
  • Pass-through 4K input at 30Hz to a display
  • USB 3.0 delivers 300–350MB/s throughput
  • Works with Windows, macOS, Linux and Android
  • 5mm TRS mic input adds live commentary

Capture Card YCY-2353 1080p 60Hz

The Jansicotek YCY-2353 is a USB 3.0 video capture device that records HDMI signals up to 1080p at 60Hz while accepting 4K input at 30Hz. It draws under 2.5W from the bus and requires no external power supply, making it a compact addition for streamers and conference recording.

Streamers and educators needing USB 3.0 capture

This unit suits creators who want a plug-and-play UVC device for OBS, vMix or Wirecast on Windows, macOS, Linux or Android. It is not for users who must record at 4K 60Hz, who need multi-channel audio mixing, or who require onboard hardware encoding to offload the host CPU.

USB 3.0 bandwidth of 300 to 350 MB/s

The single specification that decides fit is the USB 3.0 throughput of 300 to 350 MB/s, which enables 1080p 60Hz capture with MJPEG or YUY2. On USB 2.0 ports the link drops to roughly 40 MB/s and cannot sustain full-rate recording.

Highlights

  • Capture 1080p at 60Hz for smooth recordings
  • Pass-through 4K input at 30Hz to a display
  • USB 3.0 delivers 300–350MB/s throughput
  • Works with Windows, macOS, Linux and Android
  • 5mm TRS mic input adds live commentary

Specifications

BrandJansicotek
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
USB Port1
S-Video1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the i
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces

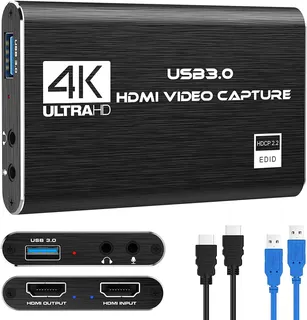

Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;
OptionAdvanced

Questions about this item

How do I verify the Jansicotek YCY-2353 is capturing correctly after connecting it?

Open OBS or your chosen software, add the device as a video capture source, and confirm the resolution shows 1080p at 60 frames per second with audio present.

What cables and accessories come in the box with the YCY-2353, and what must I provide separately?

The unit includes the capture device with HDMI input and output, a USB 3.0 connection, and a 3.5 mm TRS microphone jack; you supply the HDMI cables, a USB 3.0 port or cable, and a TRS headset if you want commentary.

Which version of the Jansicotek capture card should I choose for 1080p 60 Hz recording?

The YCY-2353 is the single model listed; it records up to 1080p at 60 Hz while accepting HDMI input up to 4K at 30 Hz, so select this model for that capability.
