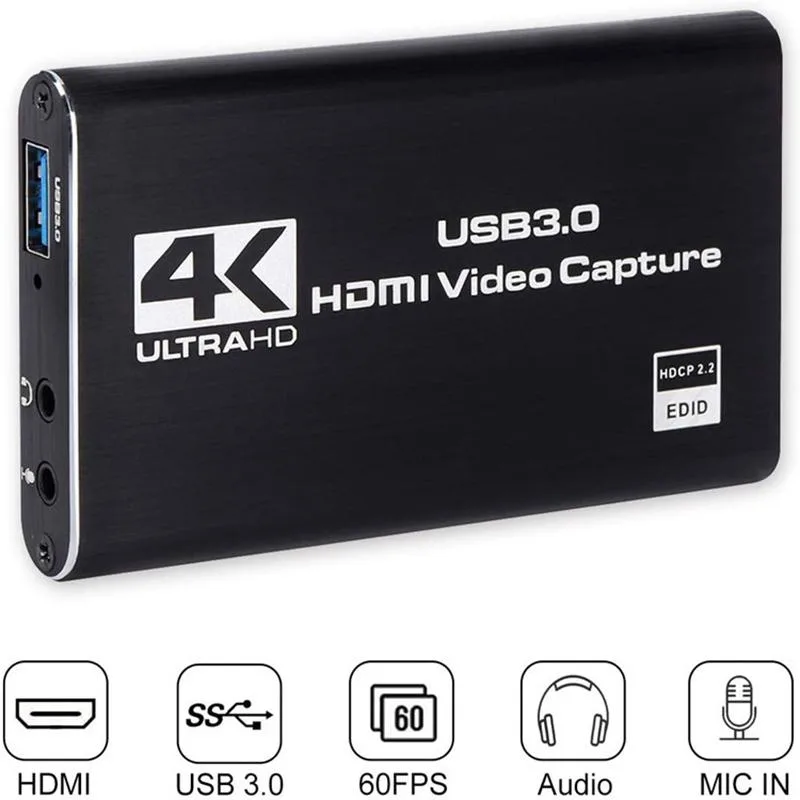

Black rectangular video capture box with HDMI ports and USB 3.0 cable

Jansicotek

Jansicotek YCY-2353 1080p 60 Hz USB 3.0 video capturing device

SKU CH-Y99S-4QPZS

Captures 1080p 60 Hz HDMI video to USB 3.0 for streaming and recording on Windows, macOS or Linux

  • InterfaceUSB 3.0
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input
  • Captures 1080p at 60 Hz for smooth recordings
  • HDMI loop-through passes 4K 30 Hz to your display
  • USB 3.0 delivers 300–350 MB/s bandwidth for low latency
  • 5 mm mic input adds live commentary to streams
  • Works on Windows, macOS 10.9+, Linux and Android without extra drivers

Product identity and intended user

The Jansicotek YCY-2353 is a USB 3.0 video capture device that records HDMI sources at up to 1080p 60 Hz while passing the signal through to a display. It targets streamers, educators and conference users who need a compact, bus-powered grabber for game consoles, cameras or PC output without an external power brick.

Upgrade path and when it matters

The unit replaces older USB 2.0 grabbers limited to 40 MB/s throughput by delivering 300–350 MB/s over USB 3.0, enabling 1080p 60 Hz capture instead of 30 Hz caps. The jump is worthwhile when you move from 720p or 1080p 30 Hz workflows to full 60 Hz recording, or when you need simultaneous HDMI loop-out for a monitor while streaming to OBS, Potplayer or VLC.

Sustained-load behaviour

Continuous capture runs at ≤ 2.5 W drawn entirely from the USB port, so thermals stay low during long sessions. The hardware automatically detects input formats — including 4K 30 Hz, 1080i 50/60 and 720p 50/60 — and scales to the chosen 1080p output frame rate without dropping frames, while 48 kHz PCM audio and a 3.5 mm TRS microphone input remain in sync over extended broadcasts.

Highlights

  • Captures 1080p at 60 Hz for smooth recordings
  • HDMI loop-through passes 4K 30 Hz to your display
  • USB 3.0 delivers 300–350 MB/s bandwidth for low latency
  • 5 mm mic input adds live commentary to streams
  • Works on Windows, macOS 10.9+, Linux and Android without extra drivers

Specifications

BrandJansicotek
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
USB Port1
S-Video1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the i
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces
Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;
OptionAdvanced

Questions about this item

What HDMI and USB ports does the Jansicotek YCY-2353 require on my computer and source device?

It needs one HDMI input from the source and one HDMI loop-out for a display, plus a USB 3.0 port on the host; it also works on USB 2.0 at reduced bandwidth.

Which driver step is often missed when setting up the capture card on Windows 7?

Some Windows 7 systems need the UVC driver installed manually before the device appears in OBS or other software; newer Windows versions load it automatically.

What microphone connector does the card accept for live commentary?

It only accepts a 3.5 mm TRS standard microphone headset; TRRS headsets with combined mic and audio will not work for the mic input.
