Jansicotek
Jansicotek TJ-A0126 8K KVM Switch 2 USB-C to 1 DP
Connects two USB-C computers to one DisplayPort monitor at up to 8K@60Hz with shared keyboard, mouse and printer
- TypeDisplayPort, USB
- PC ConnectorsUSB-C cable
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680×4320
- PC SelectionManual Switch
- Share two PCs on one 8K monitor at 60 Hz via DisplayPort 1.4
- Switch instantly with a single button press or 3-second auto-scan
- Three USB 2.0 ports let both computers share keyboard, mouse and printer
- Aluminium alloy chassis dissipates heat in a compact 5.43 x 5.35 x 1.46 inch form factor
- Includes two USB-C Gen-2 cables and a USB-A to USB-C power cable

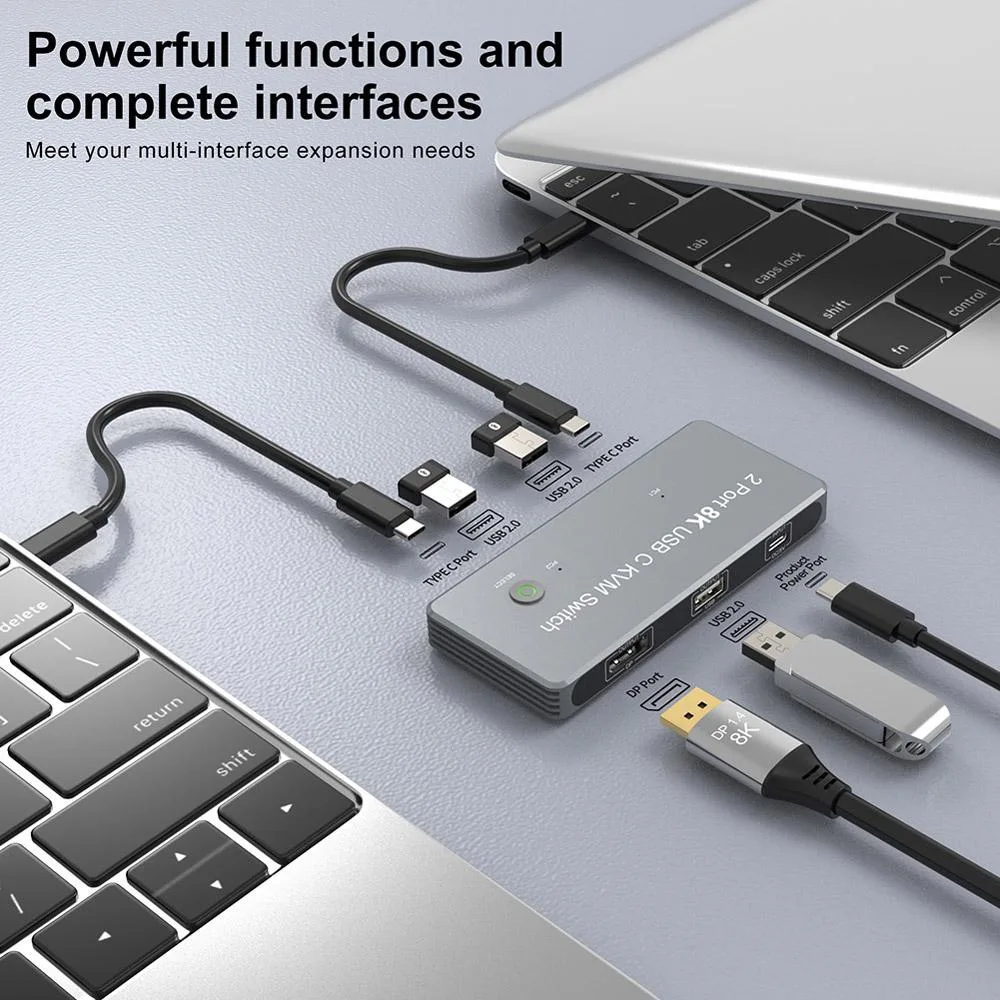

Two-PC USB-C KVM for One DisplayPort Monitor
The Jansicotek TJ-A0126 connects two USB-C computers to a single DisplayPort 1.4 display. A front-panel button toggles the active system, while three USB 2.0 ports keep keyboard, mouse and printer attached to whichever PC is selected. The unit draws power from an included USB-A to USB-C cable.
DisplayPort 1.4 Bandwidth and DSC Requirements
Video runs through a DP 1.4 link rated at 32.4 Gbps. The 8K 60 Hz and 4K 144 Hz modes rely on Display Stream Compression, so the source GPU and monitor must both support DSC. Without DSC the link is limited to 8K 30 Hz or 4K 60 Hz at full chroma. USB peripherals share a 480 Mbps USB 2.0 pool.
Resolution Headroom and Peripheral Limits
The switch passes 1080p up to 165 Hz, 4K up to 144 Hz with DSC, and 8K at 60 Hz with DSC. Deep colour up to 12-bit and 4:4:4 chroma are supported within the DP 1.4 envelope. USB devices are restricted to USB 2.0 speeds, so high-throughput storage or 10 Gbps accessories will not reach their rated performance.
Highlights
- Share two PCs on one 8K monitor at 60 Hz via DisplayPort 1.4
- Switch instantly with a single button press or 3-second auto-scan
- Three USB 2.0 ports let both computers share keyboard, mouse and printer
- Aluminium alloy chassis dissipates heat in a compact 5.43 x 5.35 x 1.46 inch form factor
- Includes two USB-C Gen-2 cables and a USB-A to USB-C power cable
Specifications
| Brand | Jansicotek |
|---|---|
| Series | TJ-A0126 |
| Model | TJ-A0126 |
| Type | DisplayPort, USB |
| PC Connectors | USB-C cable |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680×4320 |
| PC Selection | Manual Switch |
| AutoScan Interval | 3 seconds |
| Bandwidth | DP 1.4: 32.4Gbps/USB 2.0: 480Mbps |
| LED Indicators | Yes |
| Application | 2PC Share 1 Monitor and One Keyboard Mouse,KVM Switch Displayport,Support 8K@60Hz 4K@144Hz 3D 1080P |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 Port to your DisplayPort Monitors via your own displayport 8k Standard Cable,you can press the "select"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 3xUSB2.0 Output Port,two Computers share one set,you can connect 3xUSB2.0 Output to your USB Mo |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x DP KVM Switch, 2 x USB-C Cable, 1 x USB-A to USB-C power cable |
Questions about this item
Should I pick this 2-port model or look for a 4-port version?
This switch handles exactly two USB-C computers sharing one DisplayPort monitor and three USB 2.0 peripherals; a 4-port unit would be a different product not described here.
What does the 8K@60Hz headline mean when I plug it into my PC?
It can output 7680×4320 at 60 Hz using DisplayPort 1.4 with DSC compression, provided your GPU and monitor both support that mode.
Which DisplayPort standard does it use and what bandwidth does that cap?
It uses DisplayPort 1.4, limiting video bandwidth to 32.4 Gbps and USB peripherals to 480 Mbps over the three USB 2.0 ports.
