Jansicotek

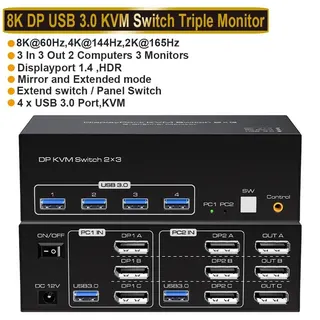

Jansicotek SW233-3DP KVM Switch 3 Monitors 2 Computers 8K@60Hz
Lets two computers share three DisplayPort monitors and four USB 3.0 ports with switching via button or wired remote
- TypeDisplayPort, USB
- PC ConnectorsDisplayport and USB
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Controls two computers with one keyboard and mouse using push buttons or wired remote
- Drives three DisplayPort monitors at up to 8K 60Hz in extended or duplicate mode
- Shares four USB 3.0 ports for keyboards, mice, drives and printers between both PCs
- Runs on an included 12V 1A power adapter for stable operation with high-power peripherals
- Compact aluminium chassis measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces
Triple-monitor KVM for two computers

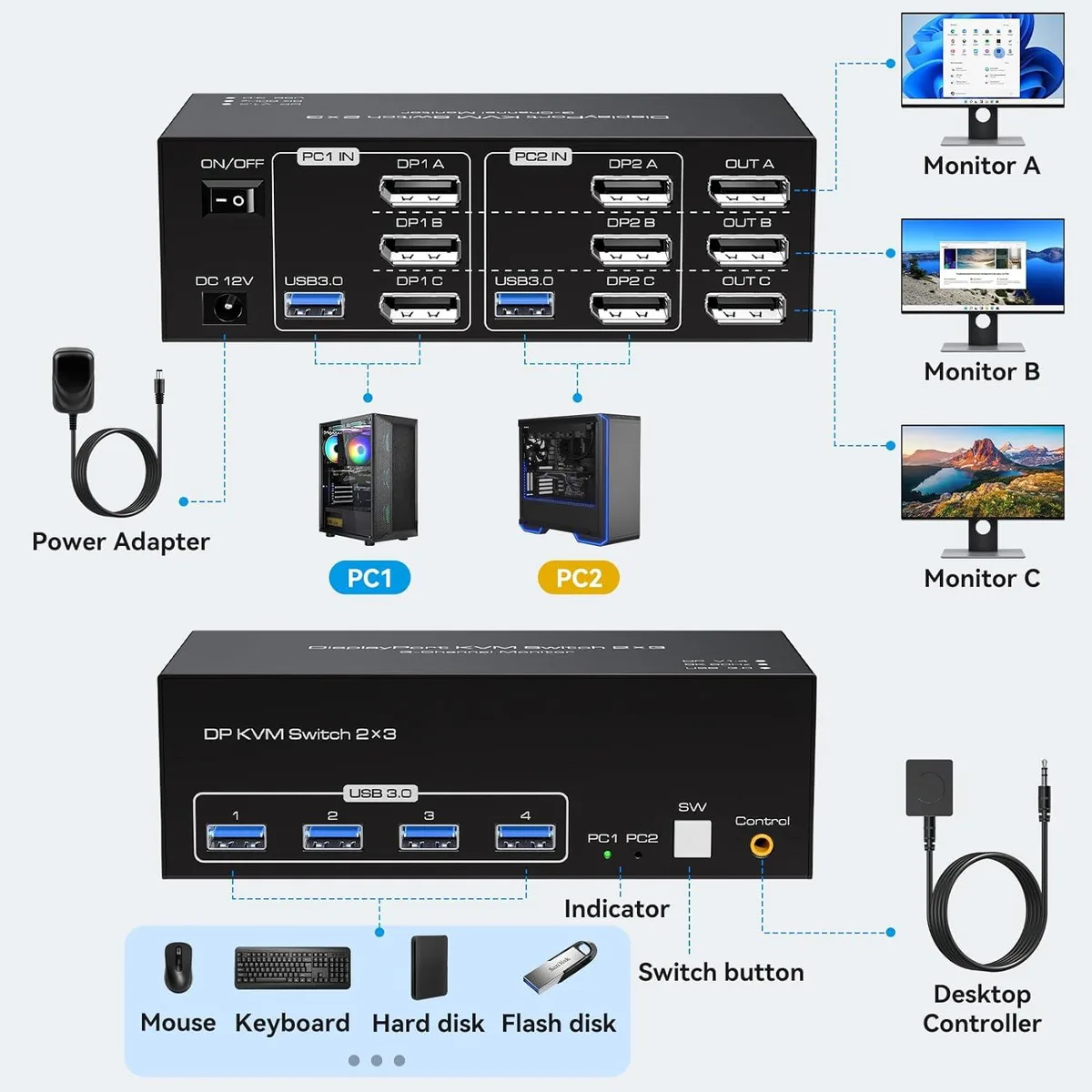

This DisplayPort KVM switch lets two desktops or laptops share three monitors and four USB 3.0 ports using a single keyboard and mouse. Each connected computer must provide three DisplayPort outputs to drive all three screens. The unit supports extended mode, where each monitor shows a different image, and duplicate mode, where all three monitors mirror the same image. Switching is handled by front-panel push buttons or the included wired desktop controller.
Bundled cables and power adapter
The package includes two USB 3.0 cables for linking the computers, a 12 V/1 A power adapter for stable operation with high-power USB devices, and a wired button switch for remote switching. These accessories remove the need to source separate cables or power supplies and ensure the four USB 3.0 ports can reliably support peripherals such as external drives, printers or scanners. The manual provides setup guidance for both display modes.
DisplayPort 1.4 bandwidth limits
The switch follows the DisplayPort 1.4 specification, allowing resolutions up to 8K at 60 Hz or 4K at 120 Hz, with backward compatibility down to 720p. Actual resolution and refresh rate depend on the graphics capability of each connected computer and the quality of the DisplayPort cables used. The three-second auto-scan interval is fixed and cannot be adjusted, and the unit does not convert signals for HDMI or other video interfaces.
Highlights
- Controls two computers with one keyboard and mouse using push buttons or wired remote
- Drives three DisplayPort monitors at up to 8K 60Hz in extended or duplicate mode
- Shares four USB 3.0 ports for keyboards, mice, drives and printers between both PCs
- Runs on an included 12V 1A power adapter for stable operation with high-power peripherals
- Compact aluminium chassis measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces
Specifications
| Brand | Jansicotek |
|---|---|
| Series | SW233-3DP |
| Model | SW233-3DP |
| Type | DisplayPort, USB |
| PC Connectors | Displayport and USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | DP KVM Switch 3 Monitors 2 Computers: This DisplayPort KVM Switch 2 port connects 2 desktops or laptops to share 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays. To expand and copy the display, each laptop/PC must support 3 or more screens and must support extended displays. 8K DisplayPort KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 devices. It is possible to control two computers and three monitors directly with one set of keyboard and mouse. Three monitors can suppo |
| Features | 2 computers/laptops share one set of keyboard, mouse, and 3 Displayport monitors Triple monitors output support up to 8K@60Hz for extended and mirror display, support DP 1.4V standards. 2 Switching modes: Button switch and wired remote. With extra 4 x 5Gbps USB 3.0 ports . Cross-support most major OS including Windows, Linux, Mac, and more. The ports that need to plug in Displayport/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space. |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x USB 3.0 3x3 DisplayPort Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
Will the 12 V 1 A power adapter or the wired button switch need replacing after heavy daily use?
The unit ships with a 12 V 1 A external power adapter and a wired remote button; both are standard replaceable accessories if they ever fail.
What is the first bottleneck when running three 8K 60 Hz displays continuously?
The DP 1.4 link caps each monitor at 8K 60 Hz, so sustained 8K 60 Hz on all three outputs is the hard bandwidth ceiling.
How much heat or fan noise does the aluminium chassis produce during all-day operation?
The passively cooled aluminium shell runs silently; only the external 12 V 1 A brick generates modest warmth under full load.
