Jansicotek SW232-2DP1HD KVM Switch 2 Computers 3 Monitors 8K 60Hz
Share two computers across three monitors at up to 8K 60Hz with four USB 3.0 ports and push-button or wired remote switching
- TypeDisplayport,HDMI and USB
- PC Connectors2Displayport, HDMI and USB
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Control two computers with one keyboard and mouse set
- Share three monitors across both systems in extend or duplicate mode
- Drive displays up to 8K 60Hz resolution with DP 1.4 and HDMI 2.1
- Connect four USB 3.0 peripherals for shared printer and storage access
- Push-button and wired remote switching with 3-second auto-scan interval

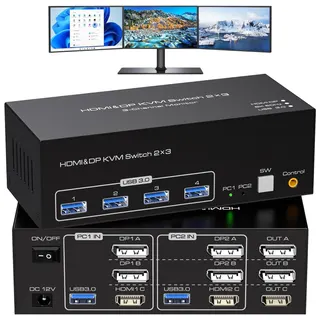

Two-computer triple-monitor KVM

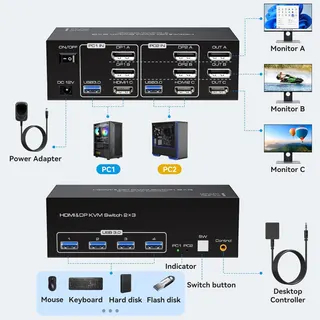

This Jansicotek SW232-2DP1HD switch lets two desktops or laptops share three displays and four USB 3.0 peripherals from a single keyboard and mouse. It supports both extended and duplicate display modes across all three connected monitors. The unit is new and includes all required cables, a wired remote button and a 12V/1A power adapter. Plug-and-play compatibility covers Windows, Mac OS, Linux and Unix systems.
Dual DisplayPort plus HDMI video inputs
Each computer must provide two DisplayPort 1.4 and one HDMI 2.1 outputs to drive the three monitor ports at the stated resolutions. Without that exact port combination on both hosts the switch cannot deliver its triple-monitor extended or duplicate modes. The specification decides whether the part fits the build.
Four USB 3.0 ports and wired remote
The four downstream USB 3.0 ports allow shared access to printers, scanners, storage drives or other peripherals without re-plugging when switching computers. The included wired button switch provides instant PC selection from the desk, while the supplied 12V/1A adapter ensures stable power for high-draw devices. Cables and manual complete the bundle.
Highlights
- Control two computers with one keyboard and mouse set
- Share three monitors across both systems in extend or duplicate mode
- Drive displays up to 8K 60Hz resolution with DP 1.4 and HDMI 2.1
- Connect four USB 3.0 peripherals for shared printer and storage access
- Push-button and wired remote switching with 3-second auto-scan interval
Specifications
| Brand | Jansicotek |
|---|---|
| Series | SW232-2DP1HD |
| Model | SW232-2DP1HD |
| Type | Displayport,HDMI and USB |
| PC Connectors | 2Displayport, HDMI and USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 2DP+HDMI KVM Switch 3 Monitors 2 Computers: This DisplayPort HDMI KVM Switch 2 port connects 2 desktops or laptops to share 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays. To expand and copy the display, each laptop/PC must support 3 or more screens and must support extended displays. 8K DisplayPort HDMI KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 devices. It is possible to control two computers and three monitors directly with one set of keyboard and mouse. Three mo |
| Features | 2 computers/laptops share one set of keyboard, mouse, and 2 Displayport +HDMI monitors Triple monitors output support up to 8K@60Hz for extended and mirror display, support DP 1.4V / HDMI2.1 standards. 2 Switching modes: Button switch and wired remote. With extra 4 x 5Gbps USB 3.0 ports . Cross-support most major OS including Windows, Linux, Mac, and more. The ports that need to plug in Displayport/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space. |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x USB 3.0 HDMI + 2 DisplayPort Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
How does the 8K 60Hz rating translate when three monitors are connected to two computers?
Each of the three outputs can run at 8K 60Hz provided the host computer supplies that resolution over its two DisplayPort 1.4 and one HDMI 2.1 ports; the switch passes the signal without downscaling.
What do the DisplayPort 1.4 and HDMI 2.1 interfaces cap in real use?
DisplayPort 1.4 carries 8K 60Hz or 4K 120Hz per port, while the single HDMI 2.1 port carries 8K 60Hz; total bandwidth is limited to what each host GPU can output on those connectors.
What physical space and power does the unit need on a desk?
The chassis measures 5.43 x 5.35 x 1.46 inches and weighs 9.52 ounces; it requires the included 12V/1A power adapter for stable operation with four USB 3.0 peripherals attached.
