Jansicotek SW232-2DP1HD 8K HDMI+2 DP KVM Switch 3 Monitors 2 Computers 4 USB 3.0 Hub EDID Adaptive
A KVM switch that lets two computers share three monitors at up to 8K 60 Hz and four USB 3.0 ports, switched by button or wired remote
- TypeDisplayport,HDMI and USB
- PC Connectors2Displayport, HDMI and USB
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Control two computers with one keyboard and mouse using three monitors

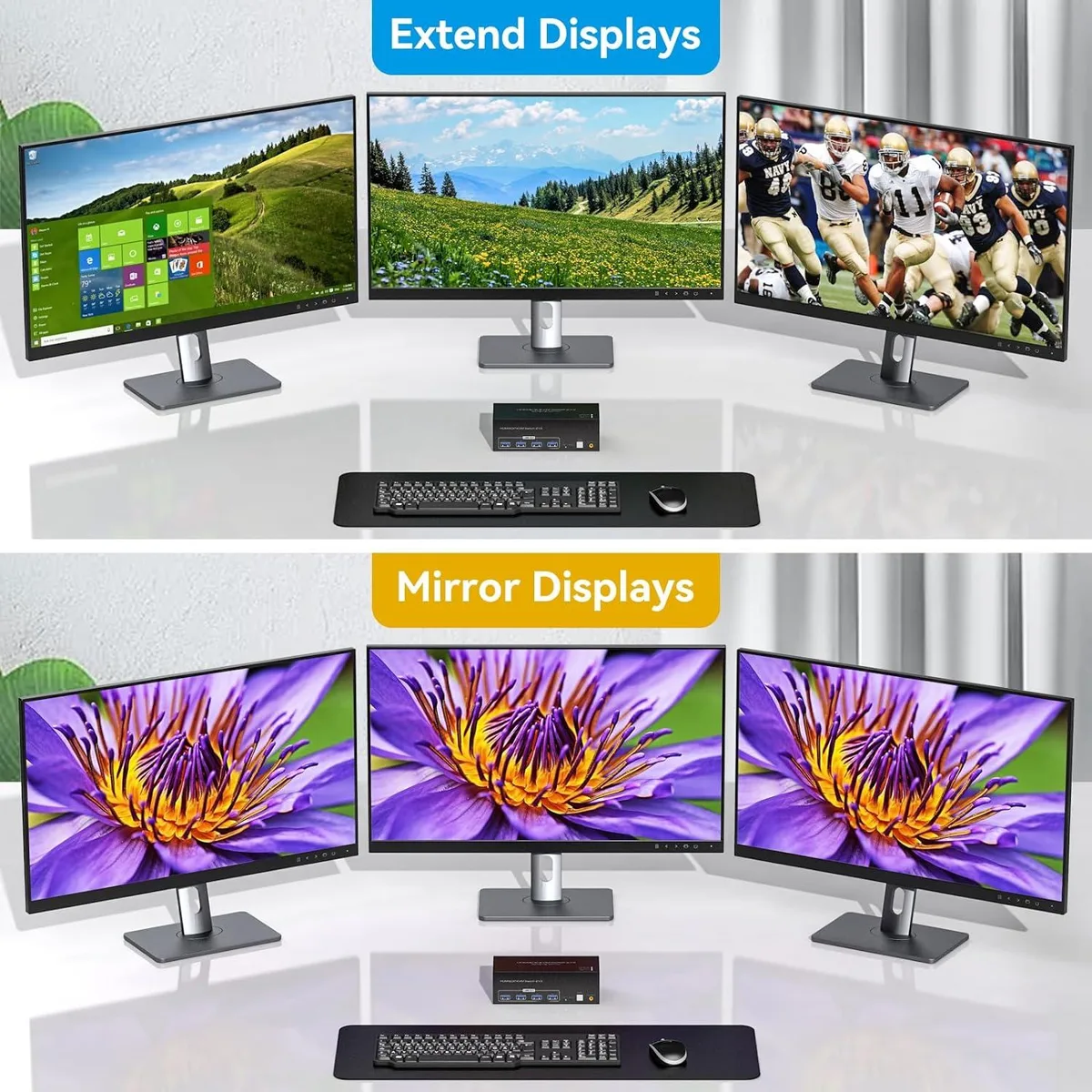

- Triple display output up to 8K at 60 Hz for extend or duplicate modes
- Four USB 3.0 ports at 5 Gbps connect drives and peripherals
- Switch instantly via front buttons or wired remote control
- Compact 5.43 by 5.35 by 1.46 inch design keeps desk tidy
Triple-monitor KVM for two computers
The Jansicotek SW232-2DP1HD lets two desktops or laptops share three displays and four USB 3.0 peripherals from a single keyboard and mouse. It accepts two DisplayPort and one HDMI input from each system and mirrors or extends the desktop across all three screens at up to 8K 60Hz. Compatible with Windows, Linux, Mac and Unix, it requires no driver installation.

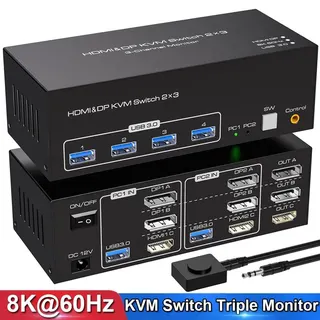

Rear-mounted ports keep the desk clear
All video and USB cables connect to the back of the unit, so the workspace stays uncluttered while the switch sits between the computers and the monitors. A wired remote button is included for convenient placement, and front-panel LEDs show the active port. The unit draws power from the supplied 12V 1A adapter to maintain stable operation with bus-powered devices.
Cables and remote included
Two USB 3.0 cables, a wired push-button switch, the power adapter and a user manual ship in the box. The four downstream USB 3.0 ports run at 5 Gbps each, letting scanners, drives or other peripherals stay connected regardless of which computer is active. Switching between systems takes about three seconds in auto-scan mode or can be triggered manually.
Highlights
- Control two computers with one keyboard and mouse using three monitors
- Triple display output up to 8K at 60 Hz for extend or duplicate modes
- Four USB 3.0 ports at 5 Gbps connect drives and peripherals
- Switch instantly via front buttons or wired remote control
- Compact 5.43 by 5.35 by 1.46 inch design keeps desk tidy
Specifications
| Brand | Jansicotek |
|---|---|
| Series | SW232-2DP1HD |
| Model | SW232-2DP1HD |
| Type | Displayport,HDMI and USB |
| PC Connectors | 2Displayport, HDMI and USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 2DP+HDMI KVM Switch 3 Monitors 2 Computers: This DisplayPort HDMI KVM Switch 2 port connects 2 desktops or laptops to share 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays. To expand and copy the display, each laptop/PC must support 3 or more screens and must support extended displays. 8K DisplayPort HDMI KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 devices. It is possible to control two computers and three monitors directly with one set of keyboard and mouse. Three mo |
| Features | 2 computers/laptops share one set of keyboard, mouse, and 2 Displayport +HDMI monitors Triple monitors output support up to 8K@60Hz for extended and mirror display, support DP 1.4V / HDMI2.1 standards. 2 Switching modes: Button switch and wired remote. With extra 4 x 5Gbps USB 3.0 ports . Cross-support most major OS including Windows, Linux, Mac, and more. The ports that need to plug in Displayport/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space. |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x USB 3.0 HDMI + 2 DisplayPort Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
Does the 8K 60Hz output hold steady during long sessions without signal drop?
The switch supports DP 1.4 and HDMI 2.1 for 8K 60Hz and 4K 120Hz, and the included 12V/1A power adapter keeps the link stable under sustained use.
How much heat or fan noise appears when the unit runs all day with three monitors?
The compact metal enclosure has no fan; it runs silently and stays cool with the supplied 12V/1A adapter during continuous operation.
Which cables must I already own to connect two computers and three displays?
Each computer needs one HDMI cable and two DisplayPort cables for video, plus the two supplied USB 3.0 cables for keyboard, mouse and hub data.
