Jansicotek SW223-2DP 8K 60Hz 2-Port DP KVM Switch
A dual-monitor DisplayPort KVM switch lets two computers share one keyboard, mouse and two displays at up to 8K 60 Hz with a built-in four-port USB 3.0 hub
- TypeDP USB
- PC ConnectorsDP USB
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Share two PCs with one keyboard, mouse and dual monitors
- 8K at 60 Hz and 4K at 120 Hz for sharp, smooth visuals
- Four USB 3.0 ports at 5 Gbps for fast peripheral access
- Switch instantly via front button or wired desktop controller
- Aluminium-alloy chassis resists interference and runs cool
Dual 8K 60Hz KVM for two PCs
The Jansicotek SW223-2DP connects two computers to two DisplayPort monitors, a shared keyboard and mouse, plus four USB 3.0 peripherals. It handles resolutions up to 8K at 60 Hz and 4K at 120 Hz with RGB 4:4:4 colour. Switching is done by front panel button or the included wired remote.
Aluminium chassis with front controls
The alloy shell resists corrosion and electromagnetic interference while measuring 150 x 65 x 35 mm. Four USB 3.0 hub ports on the front accept flash drives, printers or scanners at up to 5 Gbps. Two USB 3.0 host cables and a DC power adapter are included for immediate desktop placement.
DisplayPort 1.4 bandwidth ceiling
The link tops out at 8K 60 Hz or 4K 120 Hz; higher refresh rates at 8K or uncompressed 8K above 60 Hz are not supported. Auto-scan fixed at three seconds cannot be retimed. EDID emulation keeps display layouts stable during switching, but the two-monitor limit prevents expansion to three or more screens.
Highlights
- Share two PCs with one keyboard, mouse and dual monitors
- 8K at 60 Hz and 4K at 120 Hz for sharp, smooth visuals
- Four USB 3.0 ports at 5 Gbps for fast peripheral access
- Switch instantly via front button or wired desktop controller
- Aluminium-alloy chassis resists interference and runs cool
Specifications
| Brand | Jansicotek |
|---|---|
| Series | SW223-2DP |
| Model | SW223-2DP |
| Type | DP USB |
| PC Connectors | DP USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Features | 2 In 2 Out 4K 120Hz USB 3.0 DP KVM Switch Box dual monitor for 2 PC Sharing Keyboard Mouse Printer Plug Play Video 2 Display USB Switch Splitter - Product Type: 8K DP USB 3.0 KVM Switch (2 in 2 out) - Input Port: 4XDP 1.4 ,USB 3.0 data x2, USB 3.0 x 4 - Output Port: 2XDP 1.4 - Dimensions: 150x65x35mm - Material: Aluminum Alloy shellanti-rust, anti-corrosion, anti-interference, fast transmission, surtace oxidation Features - Support Displayport 1.4 HDCP 2.3 - Resolution: Support 1080P/1080@144/165/240Hz, 2K@120/144Hz, 4K@60/120Hz,8K@60Hz resolution, adaptive screen resolution - Suppor |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x DP KVM USB Switch, 2 x USB 3.0 data cable, 1x DC power adapter,1 x User Manual. |
Questions about this item
What DisplayPort version does the SW223-2DP use and what resolution does it cap at?
The switch uses DisplayPort 1.4 and caps at 8K 60Hz, with adaptive support for 4K 120Hz, 2K 165Hz and 1080P 240Hz.
What are the exact dimensions and weight so I can check desk fit?
The aluminium alloy shell measures 150 x 65 x 35 mm (5.43 x 5.35 x 1.46 inches) and weighs 9.52 ounces.
How do I install it and which step do users often miss?

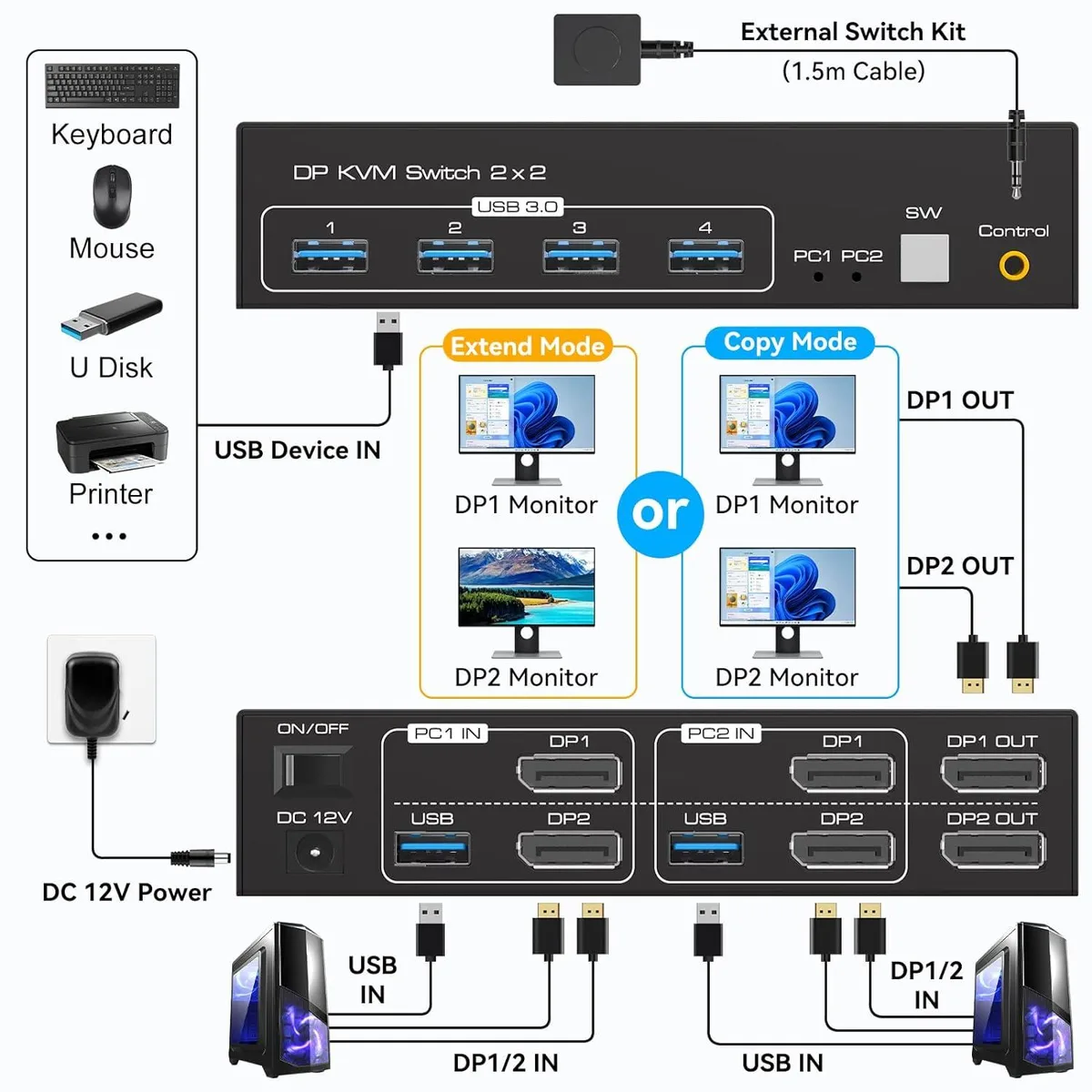

Connect each PC with one supplied USB 3.0 data cable and two DP 1.4 cables, attach monitors to the two DP 1.4 outputs, plug in the DC power adapter, then press the SW button or use the external switch kit to change sources — the step often missed is powering the unit before switching.
