Jansicotek
Jansicotek SW223-2DP 2-Port 8K@60Hz DP KVM Switch
Control two computers across dual monitors at up to 8K@60Hz with four USB 3.0 ports and push-button or desktop switching
- TypeDP USB
- PC ConnectorsDP USB
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Control two computers with one keyboard and mouse set
- Dual 8K sixty hertz monitors for ultra high definition visuals
- Four USB three point zero ports share peripherals across systems
- Aluminium alloy shell resists interference and aids heat dissipation
- Switch instantly via front button or wired remote control
Dual 8K DisplayPort KVM Switch
The Jansicotek SW223-2DP connects two computers to two DisplayPort monitors, a shared keyboard, mouse and up to four USB 3.0 peripherals. It delivers video up to 7680 x 4320 at 60 Hz and supports 4K at 120 Hz for high-refresh gaming or creative work. A front-panel button and a wired desktop controller provide instant source switching. The aluminium chassis measures 150 x 65 x 35 mm and includes a DC power adapter.

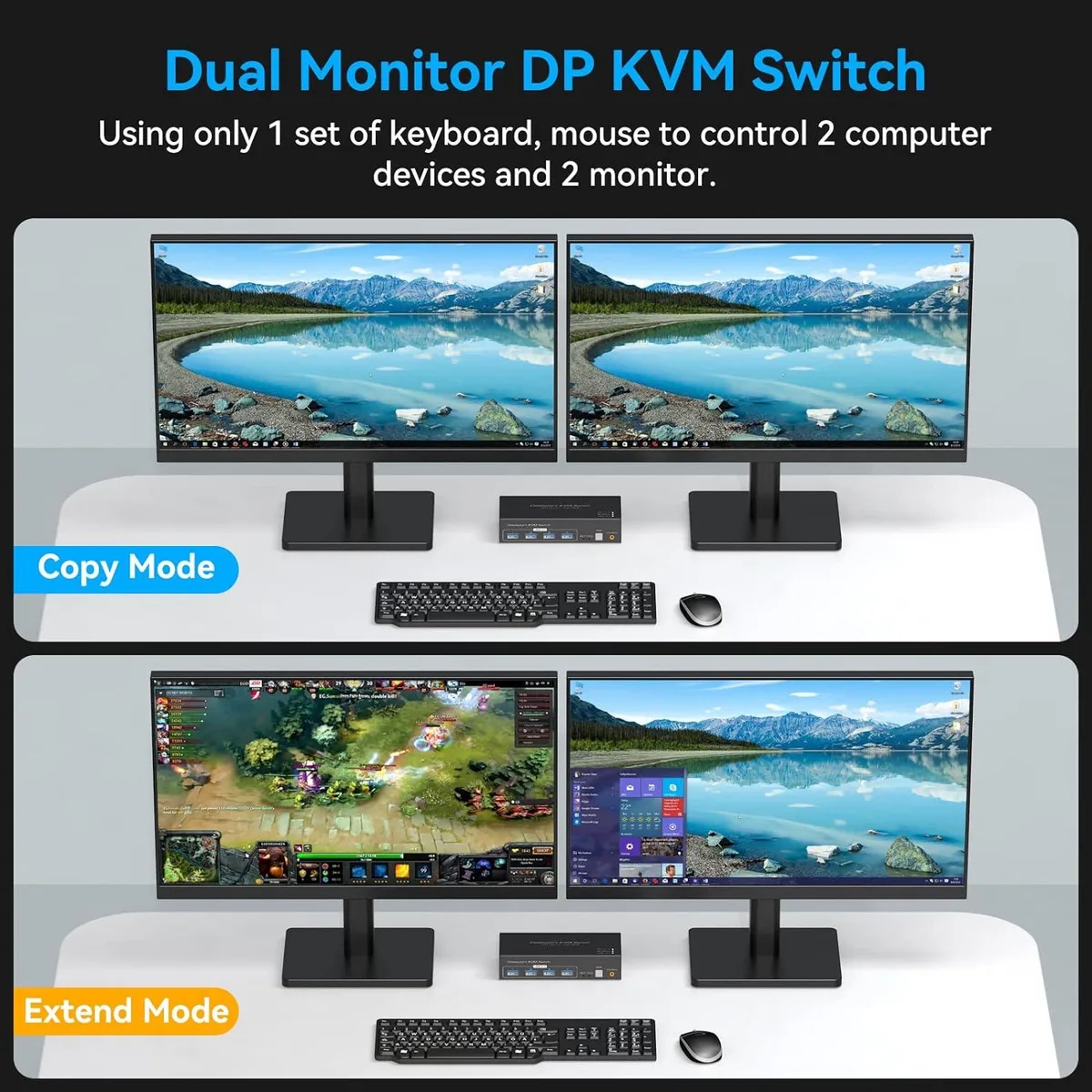

Ideal for dual-monitor workstations
Users who need simultaneous extended or duplicate desktops across two screens will benefit from the 2-in-2-out architecture and EDID emulation. The switch handles Windows, macOS and Linux without drivers and powers high-current USB devices such as external drives. Buyers who require hotkey switching, more than two computer ports or HDMI connectivity should consider a different model.
Maximum 8K 60 Hz via DisplayPort 1.4
The single specification that determines compatibility is the 8K 60 Hz ceiling over DisplayPort 1.4 with RGB 4:4:4 colour. Both the source GPU and each monitor must support this resolution and refresh rate, and cables must not exceed 1.5 metres for reliable 8K transmission. If your displays or graphics cards top out at 4K 60 Hz the switch will still function at that lower mode.
Highlights
- Control two computers with one keyboard and mouse set
- Dual 8K sixty hertz monitors for ultra high definition visuals
- Four USB three point zero ports share peripherals across systems
- Aluminium alloy shell resists interference and aids heat dissipation
- Switch instantly via front button or wired remote control
Specifications
| Brand | Jansicotek |
|---|---|
| Series | SW223-2DP |
| Model | SW223-2DP |
| Type | DP USB |
| PC Connectors | DP USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Features | 2 In 2 Out 4K 120Hz USB 3.0 DP KVM Switch Box dual monitor for 2 PC Sharing Keyboard Mouse Printer Plug Play Video 2 Display USB Switch Splitter - Product Type: 8K DP USB 3.0 KVM Switch (2 in 2 out) - Input Port: 4XDP 1.4 ,USB 3.0 data x2, USB 3.0 x 4 - Output Port: 2XDP 1.4 - Dimensions: 150x65x35mm - Material: Aluminum Alloy shellanti-rust, anti-corrosion, anti-interference, fast transmission, surtace oxidation Features - Support Displayport 1.4 HDCP 2.3 - Resolution: Support 1080P/1080@144/165/240Hz, 2K@120/144Hz, 4K@60/120Hz,8K@60Hz resolution, adaptive screen resolution - Suppor |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x DP KVM USB Switch, 2 x USB 3.0 data cable, 1x DC power adapter,1 x User Manual. |
Questions about this item

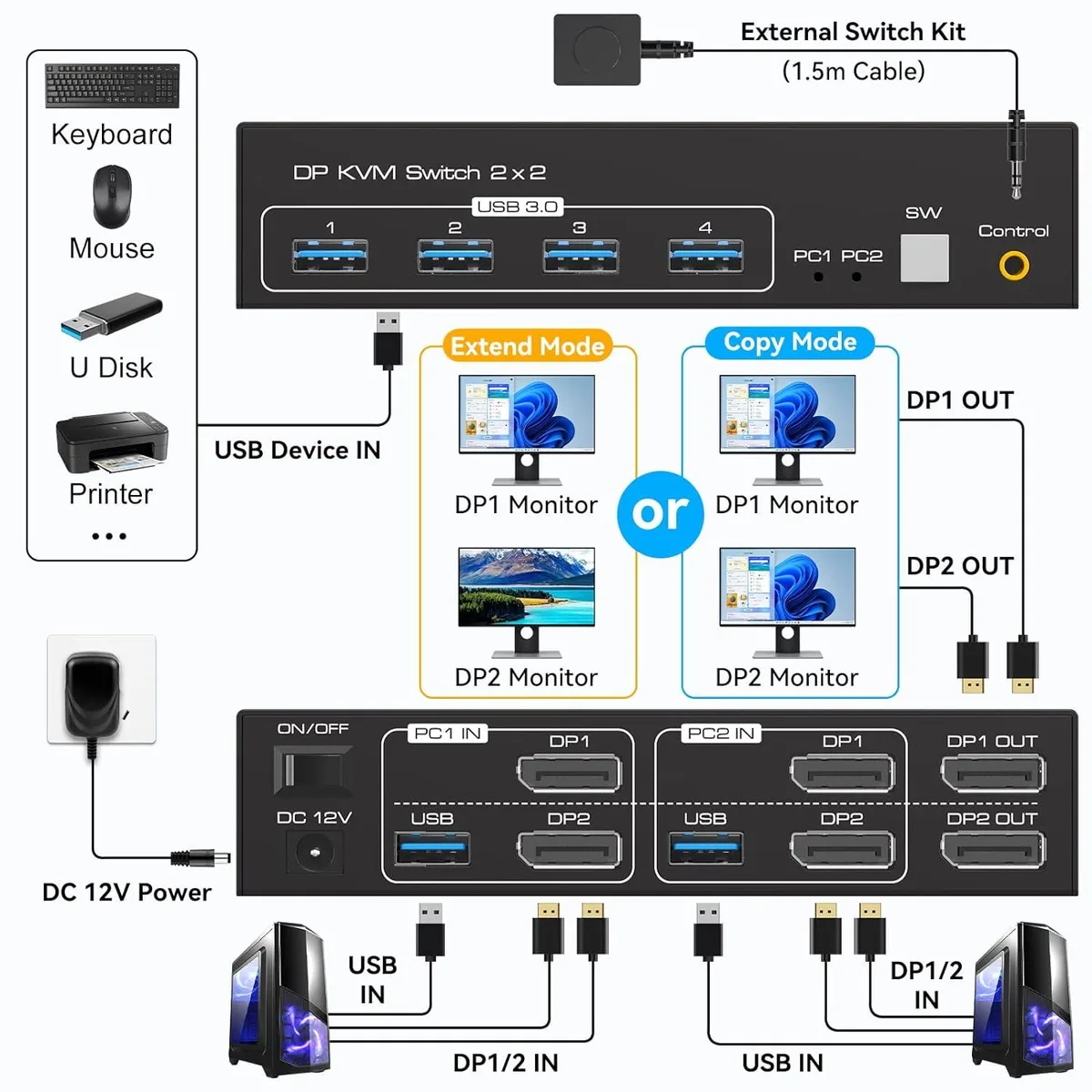

How do I connect both computers and two monitors to the SW223-2DP, and which step is often missed?
Connect each computer with one DisplayPort 1.4 cable and one USB 3.0 data cable to the four input ports, then attach both monitors to the two output ports. The step often missed is plugging in the DC power adapter; the switch will not pass video or USB without it.
What will need replacement first on the SW223-2DP under daily use?
The included DisplayPort and USB 3.0 cables are the items most likely to wear out. The aluminum-alloy chassis and internal digital chip have no moving parts, so cable fatigue from repeated plugging is the practical maintenance point.
At what resolution and refresh rate does the SW223-2DP hit its bandwidth ceiling during long sessions?
The hard limit is 7680×4320 at 60 Hz. Pushing 8K at 60 Hz continuously requires a certified 1.5 m DisplayPort 1.4 cable; longer or lower-grade cables will drop the link before the switch itself overheats.
