Jansicotek
Jansicotek SW204N-HD 2-Port 8K@60Hz KVM Switch
Lets two computers share one monitor and four USB 3.0 peripherals with push-button or desktop-controller switching at up to 8K@60Hz
- TypeHDMI, USB
- PC ConnectorsHDMI, USB
- Computer Connections2 Port HDMI
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Share one monitor and four USB 3.0 peripherals between two computers
- Switch instantly with push buttons or the wired desktop controller

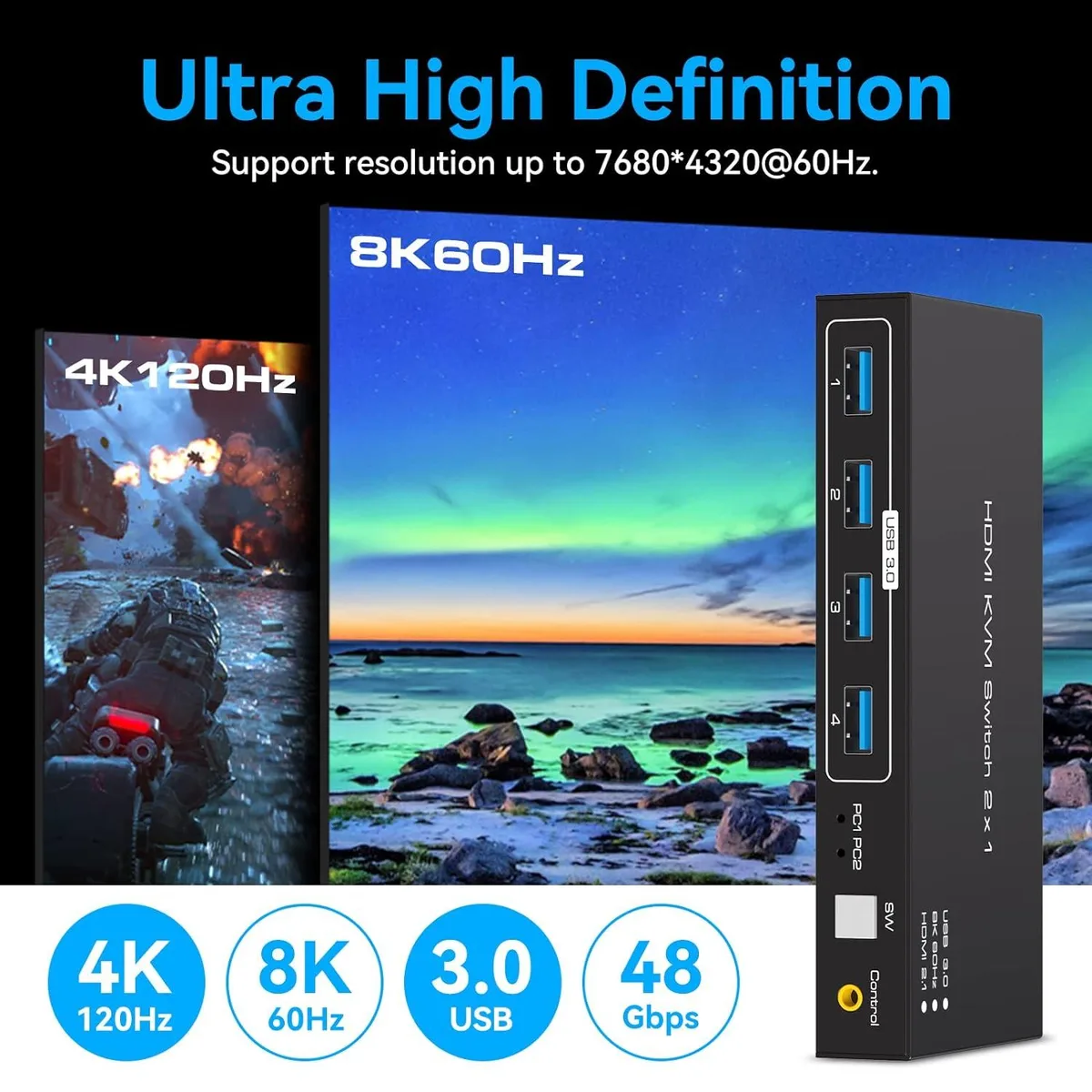

- View content up to 8K at 60 Hz and 4K at 120 Hz
- Transfer data at up to 5 Gbps through four USB 3.0 ports
- Compact unit measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces
Two-computer HDMI KVM switch
The Jansicotek SW204N-HD lets two computers or laptops share a single HDMI monitor and four USB 3.0 peripherals. It supports video resolutions up to 8K at 60 Hz and 4K at 120 Hz, provided the source, cable and display all meet the HDMI 2.1 requirement. A wired desktop controller and front push-buttons give instant port selection without software. LED indicators show the active computer at a glance.
Sustained operation with four USB 3.0 devices
The switch maintains a stable 5 Gbps link for each connected peripheral during long work or gaming sessions. USB 3.0 backward compatibility keeps older 2.0, 1.1 and 1.0 devices functional without re-enumeration delays. The external power adapter supplies consistent current so printers, scanners and webcams stay powered when both computers are under heavy load. Auto-scan cycles every 3 seconds if enabled, but manual switching avoids unwanted interrupts.
Desktop installation and common issues

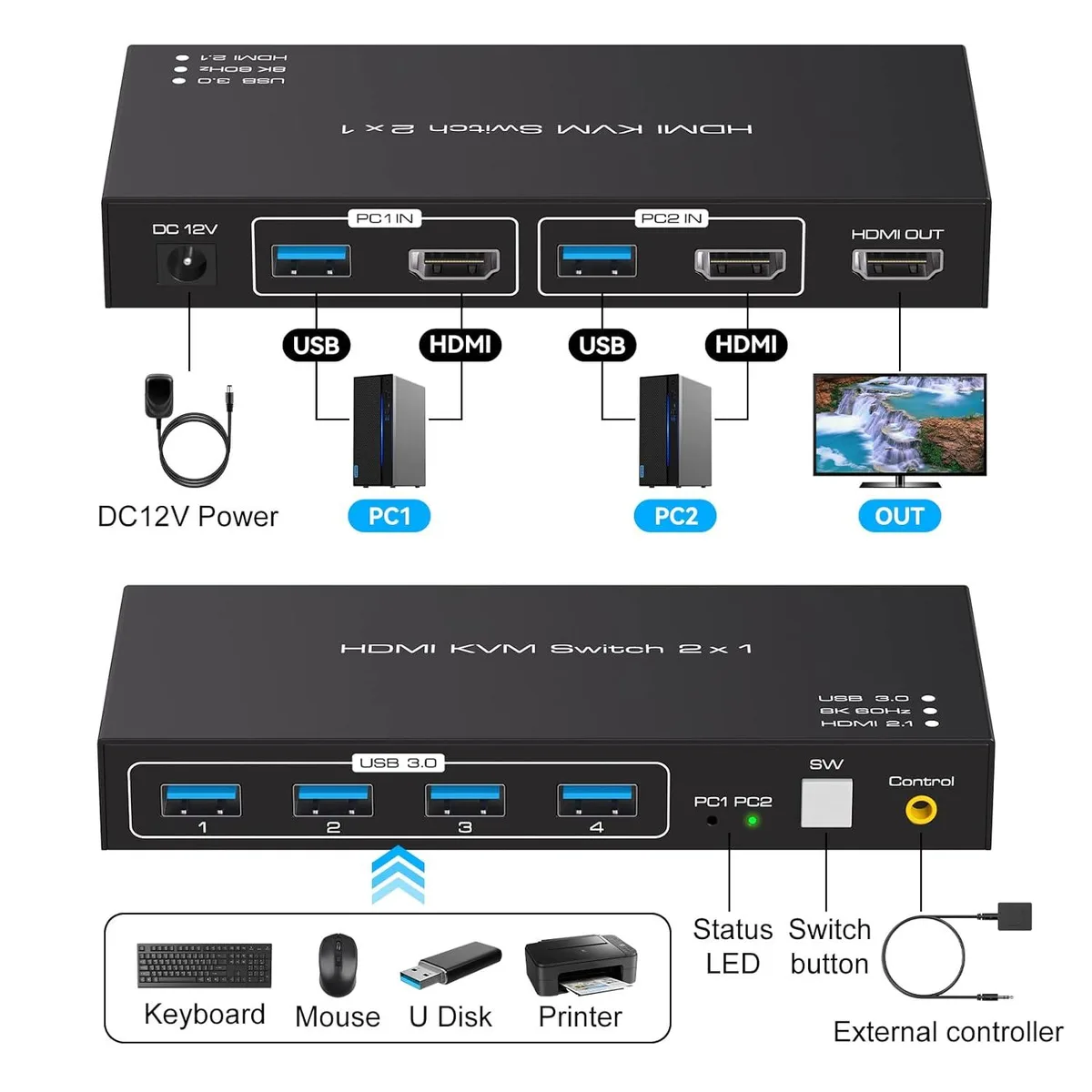

Place the unit on the desk, connect the two HDMI and USB 3.0 cables to the computers, then attach monitor and peripherals to the front ports; the wired controller can be tucked away for a clean layout. No hot-key switching is supported, so users must press the button or controller each time. Achieving 8K at 60 Hz requires every link in the chain — graphics card, HDMI 2.1 cable and monitor — to support that bandwidth; otherwise the system falls back to a lower mode.
Highlights
- Share one monitor and four USB 3.0 peripherals between two computers
- Switch instantly with push buttons or the wired desktop controller
- View content up to 8K at 60 Hz and 4K at 120 Hz
- Transfer data at up to 5 Gbps through four USB 3.0 ports
- Compact unit measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces
Specifications
| Brand | Jansicotek |
|---|---|
| Series | SW204N-HD |
| Model | SW204N-HD |
| Type | HDMI, USB |
| PC Connectors | HDMI, USB |
| Computer Connections | 2 Port HDMI |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 2 in 1 out HDMI KVM Switch: HDMI KVM Switch is a HDMI switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. |
| Features | 2 in 1 out HDMI KVM Switch: HDMI KVM Switch is a HDMI switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. Using only 1 set of keyboard, mouse and monitor to control 2 computers devices. Available to use keyboard and mouse without any delay after switch input sources. With 4xUSB 3.0 ports, the KVM Switch is possible to connect Printer, scanner, USB hard drive or other USB devices. Support 8K@60Hz 4K@120Hz, resolution up to 7680*4320@ 60Hz. Support front panel buttons and External switch button to control KVM to switc |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x HDMI KVM Switch, 1 x External Controller Kits, 2 x USB 3.0 Cable, 1 x Power Adapter, 1 x User Manual. |
Questions about this item
Does the Jansicotek SW204N-HD generate noticeable heat or fan noise during continuous operation?
The unit has no fan and no published thermal or power-draw figures, so it runs silently; only the external power adapter may become slightly warm after extended use.
Which cables and monitor must I already own to use the SW204N-HD at 8K 60 Hz?
You need two HDMI 2.1 cables for the computer links, one HDMI 2.1 cable to the monitor, and a display that accepts 8K at 60 Hz; the box supplies only the two USB 3.0 cables and the power adapter.
Will the SW204N-HD pass 4K 120 Hz from an older graphics card through to a legacy 4K 60 Hz display?
Yes — the switch is backward compatible with 4K at 120 Hz and lower resolutions, so an older GPU and a 4K 60 Hz monitor will work together through the KVM without extra setup.
