Small black box with BNC and HDMI ports, USB power lead

Jansicotek

Jansicotek SDI2HDMI 3G-SDI to HDMI Video Capturing Device

SKU CH-N8YK-AWPF6

Converts SD, HD and 3G-SDI signals to HDMI with a loop-through SDI output, auto-detecting formats up to 1080p at 60 Hz and passing embedded audio

  • InterfaceSDI to HDMI
  • FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Converts SDI to HDMI and SDI loop output simultaneously
  • Auto-detects SD, HD and 3G-SDI signals up to 2.97 Gbps
  • Supports 1080p at 60 Hz and 720p at 60 Hz
  • USB 5 V power for portable camera and streaming setups
  • LED indicator shows active signal status at a glance

SD/HD/3G-SDI Converter for Professional Video

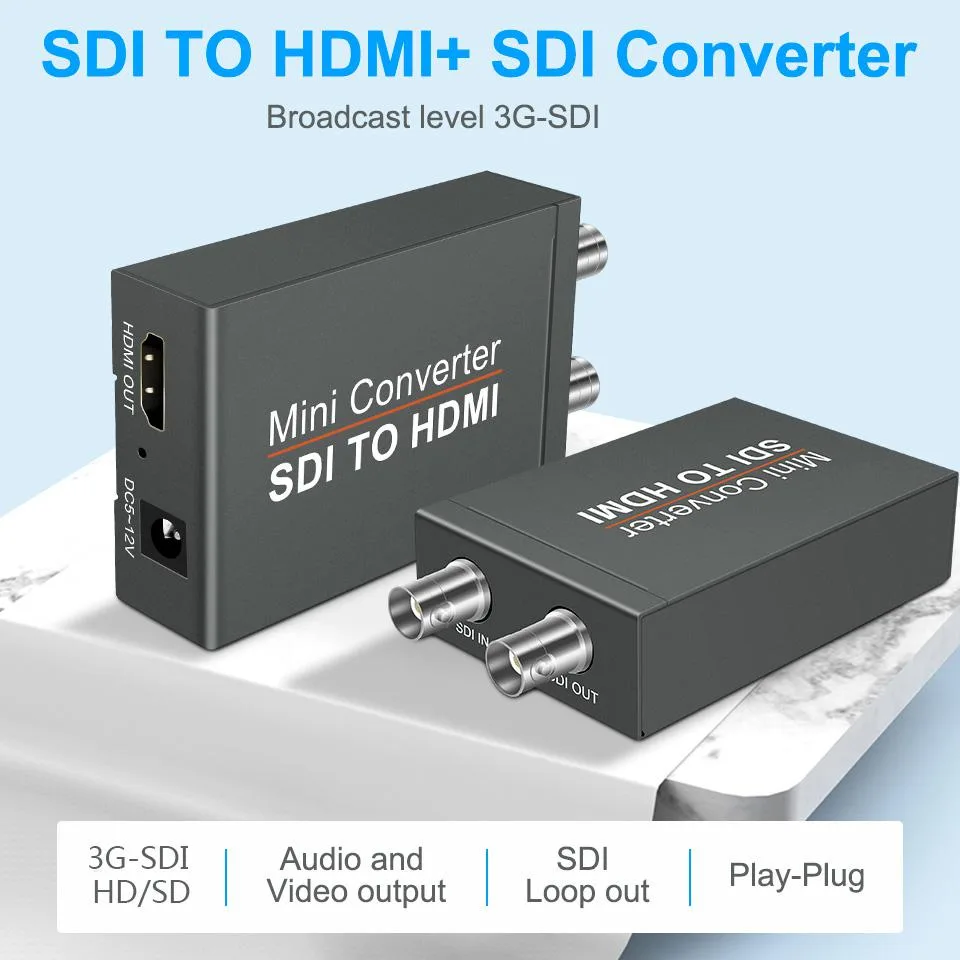

The Jansicotek SDI2HDMI converts SD-SDI, HD-SDI and 3G-SDI signals to HDMI while providing a loop-through SDI output. It accepts 480i, 576i, 720p and 1080i/p formats at 24, 25, 30, 50 and 60 Hz and draws power from a USB 5 V 1 A supply. Video engineers and streaming operators use it to feed HDMI monitors or capture cards from broadcast cameras and switchers.

USB Power Adapter and Loop-Through SDI Output

The bundled DC cable lets the unit run from any standard USB port without a dedicated mains brick. A second BNC output passes the original SDI signal onward so a second SDI monitor or recorder can stay in the chain. The converter re-clocks the data at up to 2.97 Gbps, which helps maintain signal integrity over longer cable runs.

3G-SDI Bandwidth and HDMI 1.3a Output Limits

The SDI interface tops out at 2.97 Gbps, so 1080p at 50 or 60 Hz is the highest progressive format supported. HDMI output follows the 1.3a specification with 30 or 36 bits per pixel and eight-channel 24-bit 48 kHz embedded audio. Buyers needing 4K, HDR or higher frame rates will require a different converter class.

Highlights

  • Converts SDI to HDMI and SDI loop output simultaneously
  • Auto-detects SD, HD and 3G-SDI signals up to 2.97 Gbps
  • Supports 1080p at 60 Hz and 720p at 60 Hz
  • USB 5 V power for portable camera and streaming setups
  • LED indicator shows active signal status at a glance

Specifications

BrandJansicotek
SeriesSDI2HDMI
ModelSDI2HDMI
InterfaceSDI to HDMI
FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
HDMI1 In
SDI2 Out
LED IndicatorYes
DisplaySDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Specification- Product Type: SDI to HDMI Converter

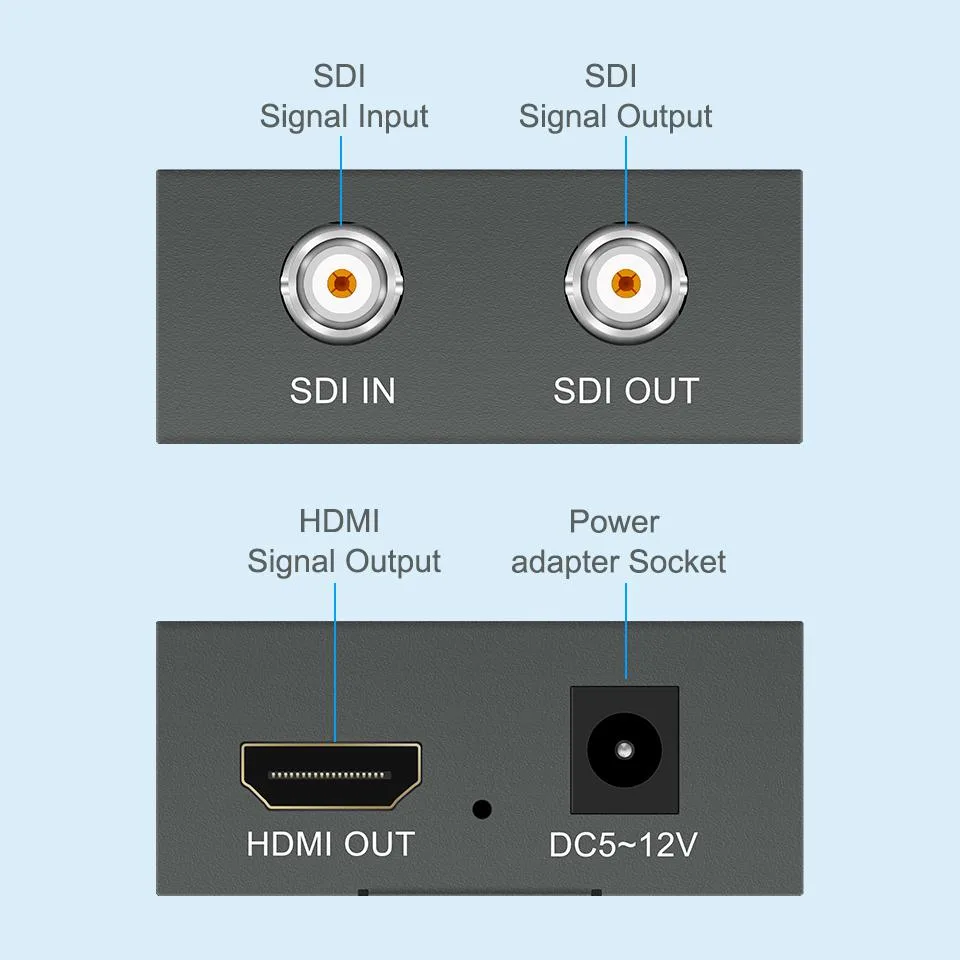

- Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
- Output Port: 1 x HDMI Port, 1 x SDI Output (BNC)
- Power Supply: USB DC 5V/1A
Feature- SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps
- SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz
- HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- One way SDI output, with the Re-clock function, can support multiple cascaded
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual.
OptionHDMI - 1080p

Questions about this item

Will the USB power adapter need replacing after extended use?

The unit draws 5 V at 1 A from the supplied USB DC cable; the adapter is a standard 5 V 1 A supply that can be swapped with any equivalent charger if it ever fails.

Which signal path hits its bandwidth ceiling first during a long session?

The SDI interface tops out at 2.97 Gbps for 3G-SDI, so 1080p at 60 Hz is the highest sustained format before the link saturates.

Does the converter get hot or noisy when powered continuously?

There is no fan; the aluminium enclosure passively dissipates the low 5 W draw, so it runs silent and stays warm but not hot during all-day operation.
