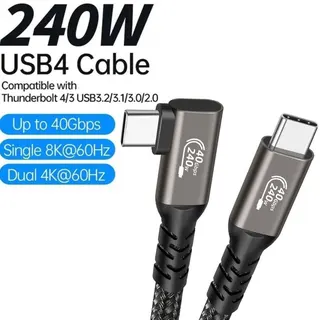

Black USB-C to USB-C cable with 90-degree right-angle connectors, nylon braided finish, five feet long

Jansicotek

Jansicotek PQ005 USB4 cable 240W 40Gbps 8K@60Hz 5ft right angle

SKU CH-BRTA-8GSBT

A right-angle USB4 cable delivering 40Gbps data, 8K@60Hz video and up to 240W charging over 5ft

  • TypeUSB4
  • Connector TypeUSB C to USB C
  • ColorBlack
  • Thunderbolt 3Yes
  • Terminal GenderMale to Male
  • Apple CompatibleUSB-C port

Cable Length 5 Feet

  • Delivers up to 240W charging with PD 3.1 EPR support
  • Transfers data at 40Gbps via USB4 Gen 3x2
  • Drives single 8K@60Hz or dual 4K@60Hz displays

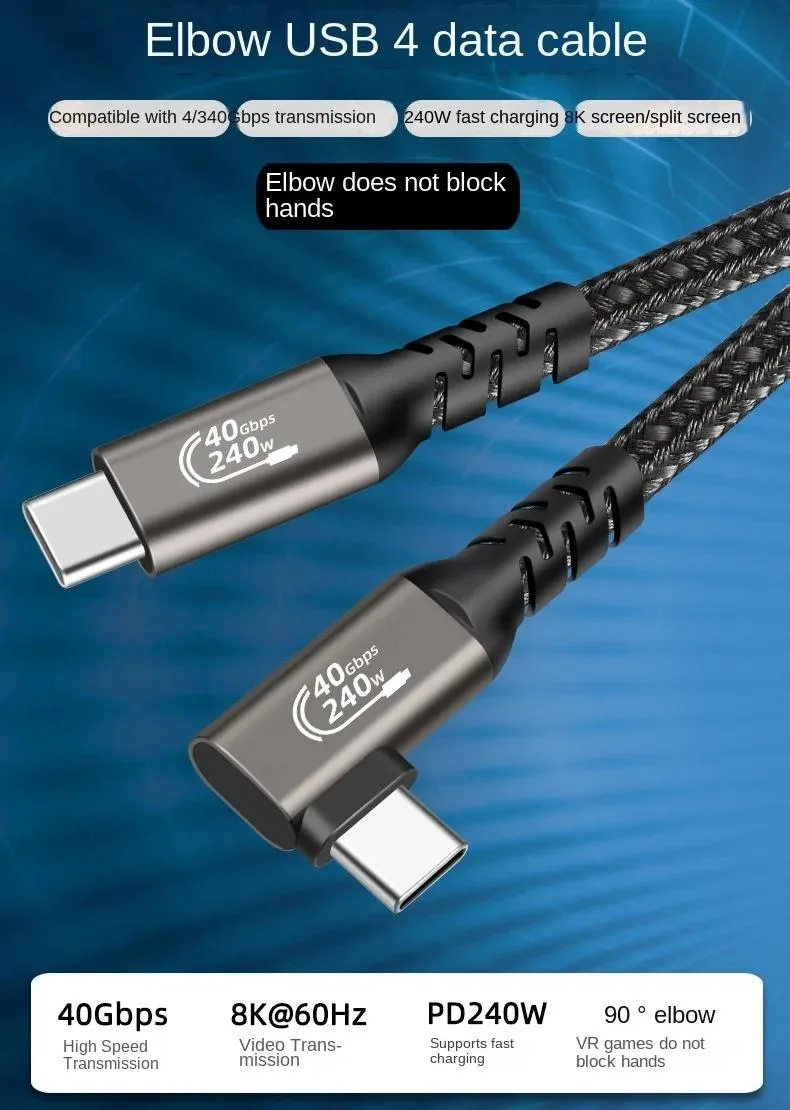

  • 90° right-angle connector fits tight spaces and reduces strain
  • Works with Thunderbolt 3 and Thunderbolt 4 hosts

Right-angle USB4 cable for tight ports

The Jansicotek PQ005 is a 5 ft USB C to USB C cable built to the USB4 Gen 3x2 standard. It carries up to 40 Gbps of bi-directional data and supports 240 W Power Delivery 3.1 Extended Power Range. The 90-degree L-shaped connector fits flush against the device, reducing strain in cramped setups such as docked laptops or wall-mounted hubs.

Nylon-braided build with reversible plugs

A black nylon braid covers the full length, adding abrasion resistance without stiffening the cable. Both ends are male USB C, bi-directional and reversible, so orientation never matters. The right-angle moulding protects the port from sideways leverage during daily connect-disconnect cycles, while the braid resists kinks when the cable is routed behind desks or through cable chains.

Replaces legacy 100 W cables for high-power gear

This cable supersedes older USB C cords limited to 100 W, enabling 140 W charging on a MacBook Pro 16-inch and up to 240 W where a PD 3.1 EPR charger and device allow. It also drives a single 8K 60 Hz display or dual 4K 60 Hz screens over Thunderbolt 3 or 4. Buyers whose devices only support USB 3.2 or lower power profiles will not see the full speed or wattage benefit.

Highlights

  • Delivers up to 240W charging with PD 3.1 EPR support
  • Transfers data at 40Gbps via USB4 Gen 3x2
  • Drives single 8K@60Hz or dual 4K@60Hz displays
  • 90° right-angle connector fits tight spaces and reduces strain
  • Works with Thunderbolt 3 and Thunderbolt 4 hosts

Specifications

BrandJansicotek
ModelPQ005
TypeUSB4
Connector TypeUSB C to USB C
ColorBlack
Thunderbolt 3Yes
Terminal GenderMale to Male
Apple CompatibleUSB-C port
Specifications240W USB4 Cable
USB Standard: The Latest USB4 Gen 3x2
Connector Gender & Type: USB C Male to USB C Male, Bi-directional & Reversible.
Power Delivery: PD 3.1/PD 3.0 PPS/PD2.0, QC4.0/3.0, and AFC, SCP, FCP, etc.
Extended Power Range: Fully Supported, Backwards compatible with lower power requirements like 180W/140W/100W/60W and below.
Supported Maximum Wattage: 240W, Compatible with Apple 140W USB-C EPR Charger to power MacBook Pro 16'' with a full load of 140W (Requires a 240W EPR PD 3.1 charger and device to load 240W).
Supported Maximum Voltage: 48V, Voltage rating according to PD 3
Refresh Rate8K@60Hz
Features240W, Leading Fast Charging Tech: When our USB C to USB C cable paired with a compatible charger, it reaches the maximum power supported by the device, supporting up to 240W (48V/5A) power supply. Within the next 5 to 10 years, this USBC to USBC fast charging cable can completely meet the demands of fast charging, and could charge virtually any USB-C device from phones and accessories to gaming laptops.
Support 8K UHD Display: Support ultra HD video resolution, 40Gbps bandwidth allows single 8K@60Hz outputs or dual 4K@60Hz video, 40Gbps speed cables are suitable for eGPU and dual 4K

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What display resolutions does the USB4 Gen 3x2 interface support at 60 Hz?

It carries a single 8K signal at 60 Hz or dual 4K signals at 60 Hz, with up to 40 Gbps bi-directional bandwidth when both host and device support USB4 Gen 3x2.

What clearance does the 90-degree right-angle connector need?

The L-shaped USB-C male plug extends sideways from the port, so it fits behind laptops, tablets or phones where a straight connector would hit a surface or bend sharply.

How do I get the full 240 W charging rate from this cable?

Use a PD 3.1 EPR charger rated for 48 V / 5 A and a device that negotiates 240 W; the cable is backward-compatible with 180 W, 140 W, 100 W and lower profiles.
