Compact black metal box with HDMI and audio ports on front and back

Jansicotek

Jansicotek OZP1 2x2 video wall controller 4K 30Hz input 1080P output

SKU CH-M6K0-6GQG7

Splits a 4K 30 Hz or 1080p signal across four 1080p displays with eight layout modes, stereo and 5.1 audio outputs, and RS-232 control

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out4 HDMI
  • SpecificationsSupport 1 HDMI-Compatible/DVI input Support input HDMI-Compa
  • Splits one 4K 30Hz source across four 1080P displays

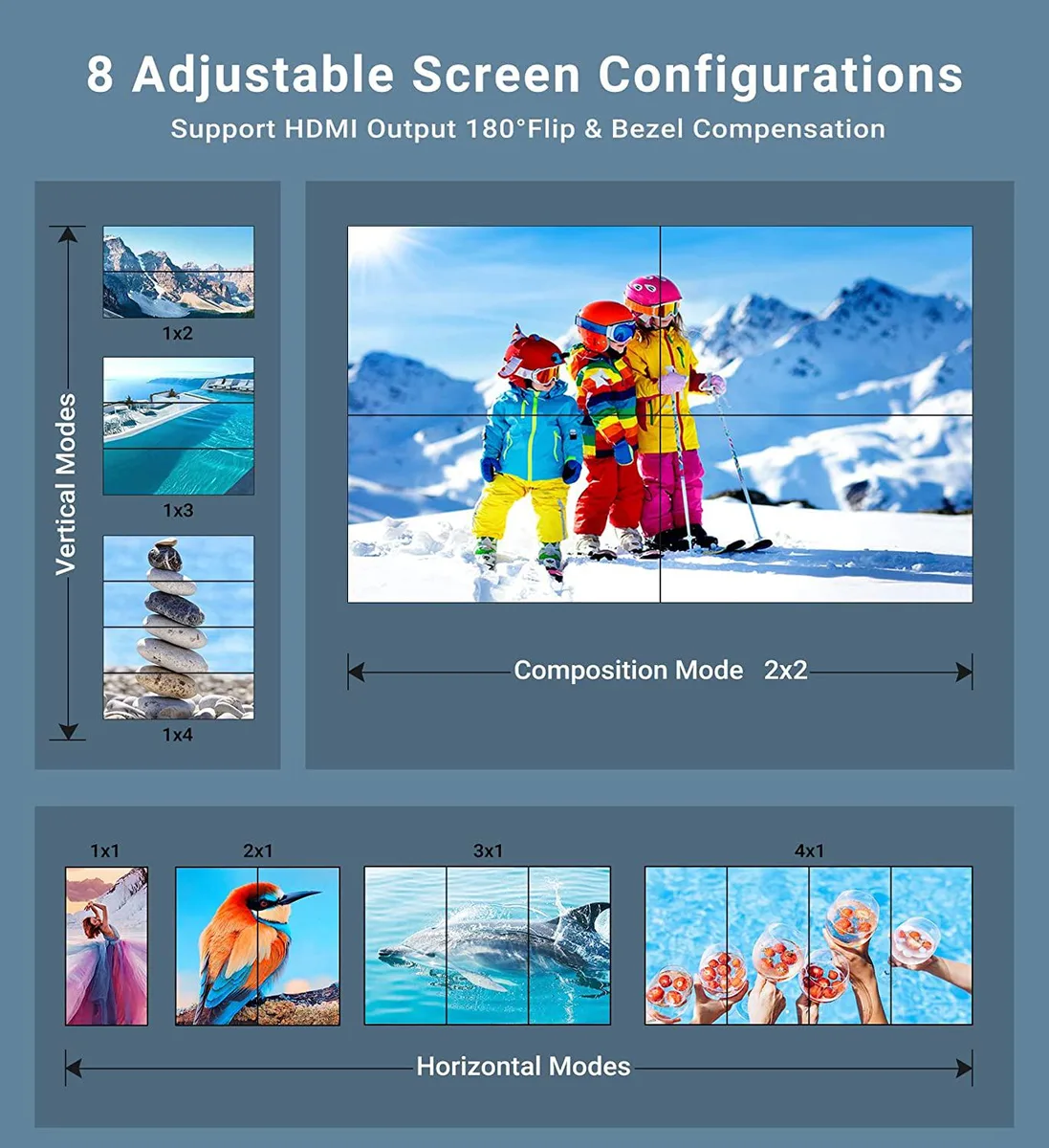

  • Eight built-in display modes suit bars, schools or home theatres
  • 5 mm jack provides stereo audio and optical SPDIF carries 5.1CH surround
  • RS-232 port enables automated control from a central system
  • Fanless porous chassis dissipates heat silently for continuous operation

2x2 video wall controller

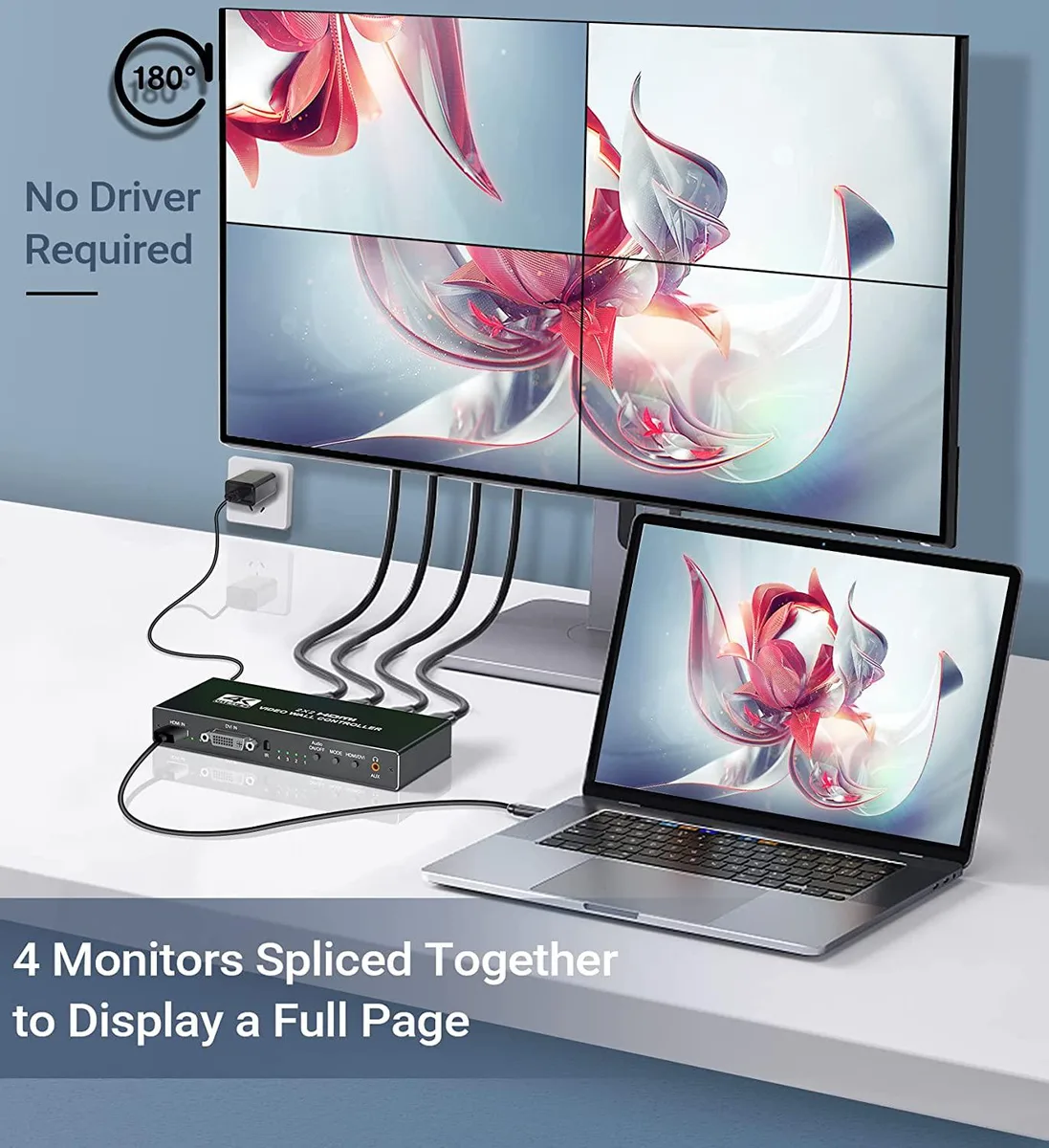

The Jansicotek OZP1 splits a single HDMI or DVI source across four HDMI displays in a 2x2 grid. It is aimed at installers setting up digital signage in sports bars, retail spaces, classrooms or home theatres who need a simple plug-and-play solution without a PC.

4K 30Hz input to 1080P output

The unit accepts resolutions up to 4K at 30Hz plus 1080P at 24, 30, 50 and 60Hz, then scales every quadrant to a fixed 1920x1080P output. Content above 4K 30Hz is not supported, and the four screens share the same 1080P resolution with no per-output scaling.

HDMI DVI RS232 audio and passive cooling

One HDMI/DVI input and four HDMI outputs sit alongside a 3.5mm jack for 2.0CH audio and an optical SPDIF port for 5.1CH audio. An RS232 port enables automated control, while a porous chassis provides convection cooling without fans. The package includes a 5V 2.1A power adapter, a remote control (battery not supplied) and a user manual.

Highlights

  • Splits one 4K 30Hz source across four 1080P displays
  • Eight built-in display modes suit bars, schools or home theatres
  • 5 mm jack provides stereo audio and optical SPDIF carries 5.1CH surround
  • RS-232 port enables automated control from a central system
  • Fanless porous chassis dissipates heat silently for continuous operation

Specifications

BrandJansicotek
ModelOZP1
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out4 HDMI
SpecificationsSupport 1 HDMI-Compatible/DVI input
Support input HDMI-Compatible
Support 4 HDMI-Compatible outputs
Support 1 x 3.5mm Jack audio with 2.0CH audio
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/50/60HZ,and lower resolution
Support output resolution 1920x1080P
Support multiple splicing modes, easy to operate, plug and play
Multi screen splicing seamless mixing
Porous design convection heat dissipation
Non slip design is stable and non slip
Package Contents2x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

Will the OZP1 accept a 4K 30Hz source from my older media player and still drive four 1080P displays?

Yes, the controller supports input up to 4K at 30Hz and 1080P at 24, 30, 50 or 60Hz, then outputs a fixed 1920x1080P signal to each of the four HDMI ports.

How can I confirm the OZP1 is splitting the signal correctly across all four screens after I connect them?

Use the included remote to cycle through the eight display modes; each mode rearranges the four output blocks so you can visually verify every screen shows its assigned quadrant.

What cables and accessories come with the OZP1, and what must I provide myself?

The box includes the controller, a remote (battery not supplied), a 5V 2.1A power adapter and a user manual; you must supply the HDMI or DVI input cable, four HDMI output cables and any audio cables for the 3.5mm or optical ports.
