Jansicotek
Jansicotek OZP1 2x2 Video Wall Controller 4K 30Hz 4 HDMI Out
Splits one HDMI or DVI source into four 1080p displays across eight layout modes with stereo and 5.1 audio extraction
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out4 HDMI
- SpecificationsSupport 1 HDMI-Compatible/DVI input Support input HDMI-Compa
- Splits one 4K 30Hz signal across four 1080P displays

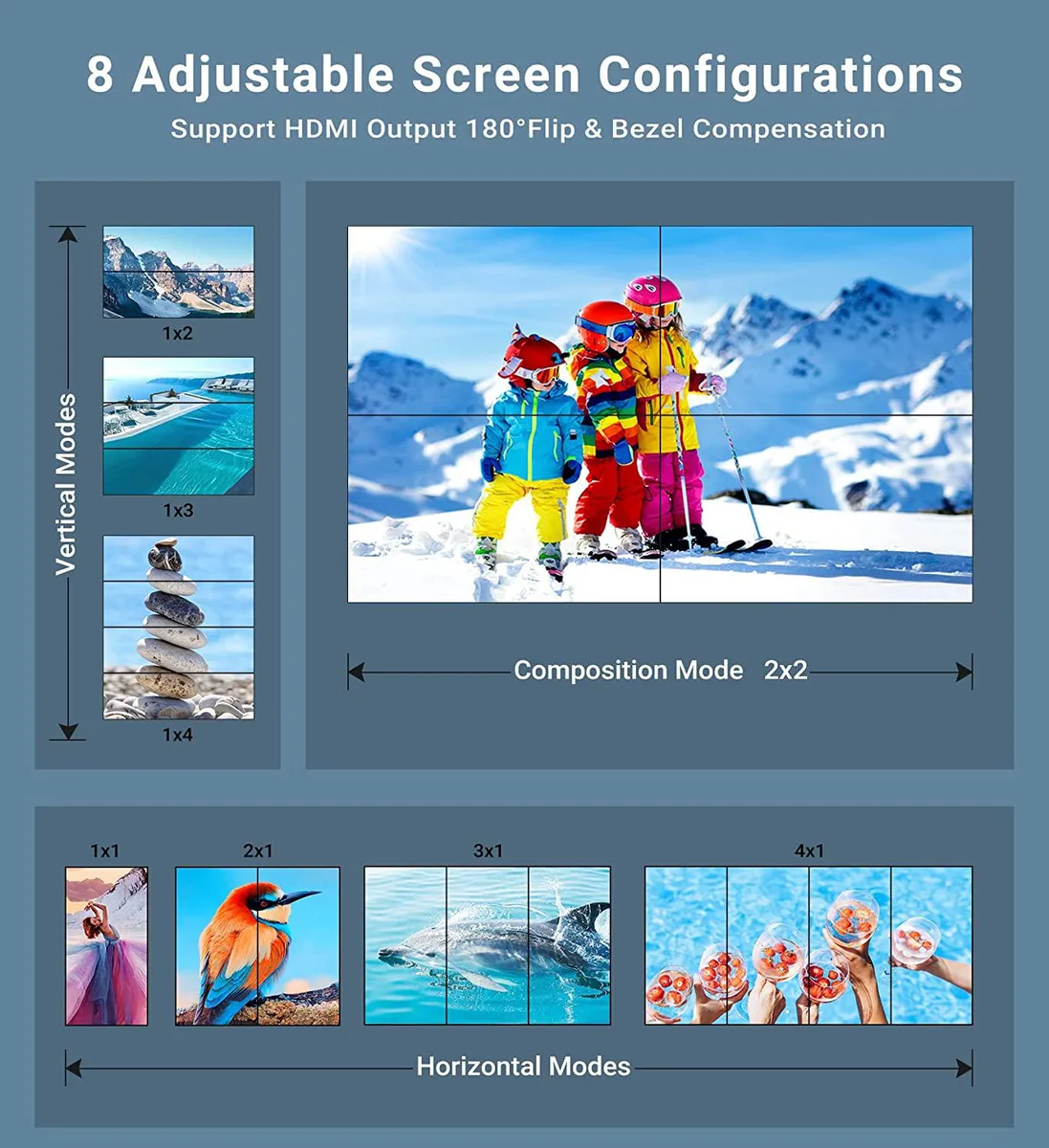

- Eight layout modes including 2×2, 1×4 and 4×1
- Stereo 3.5 mm jack and 5.1 optical SPDIF audio outputs
- HDMI 1.4 and HDCP 1.4 compliant for protected content
- Infrared remote included for front-of-room control

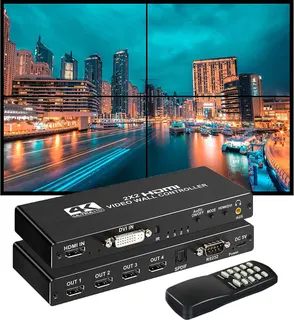

2x2 Video Wall Controller 4K 30Hz

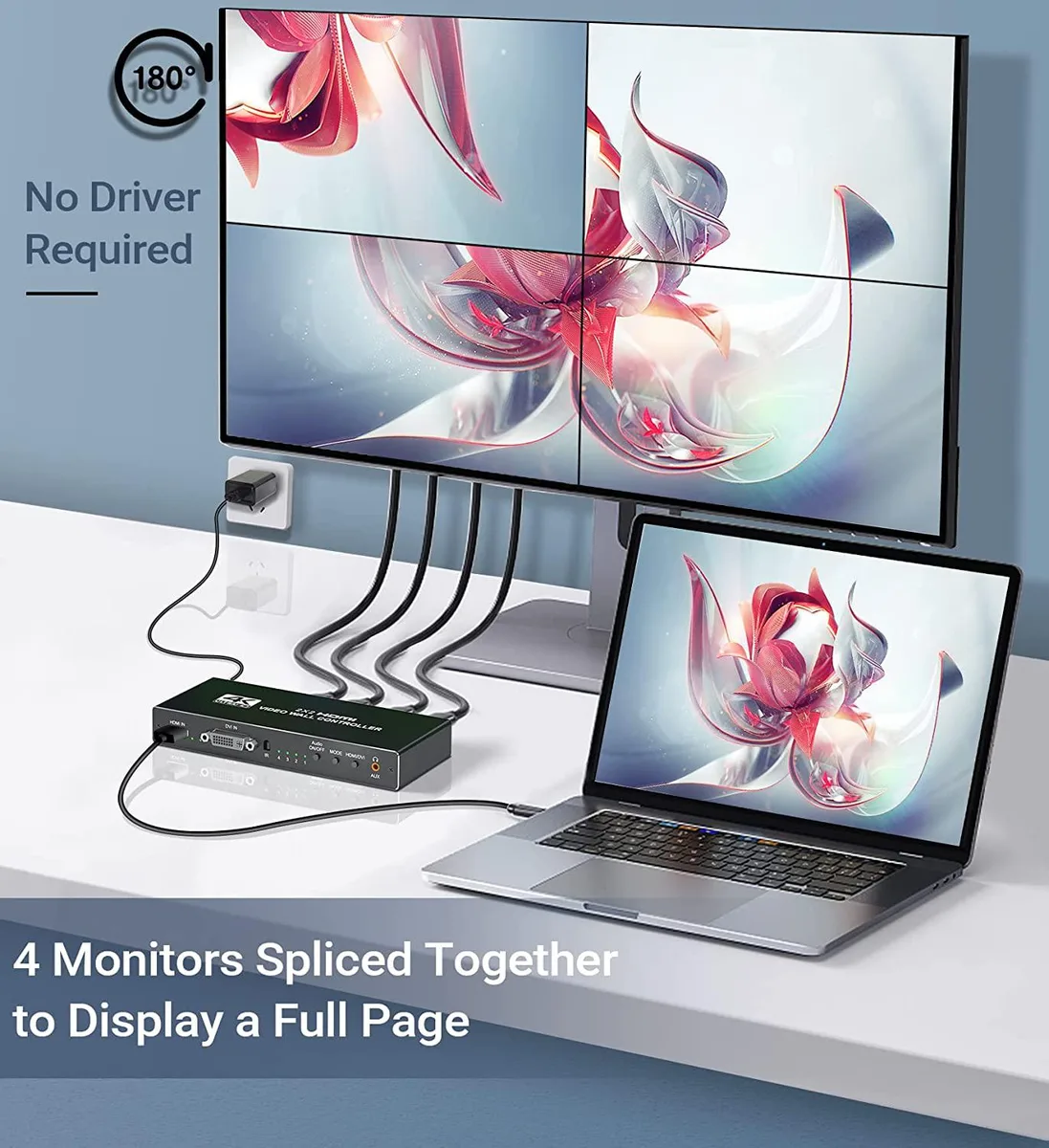

The Jansicotek OZP1 splits a single HDMI or DVI source across four HDMI displays in a 2x2 grid. It accepts input up to 4K at 30 Hz and outputs each tile at 1920x1080P. A remote control is included for switching between the eight preset display modes.
Installers building fixed video walls
This unit suits integrators who need a simple 2x2 split with stereo and 5.1 audio breakout via 3.5 mm jack and optical SPDIF. It does not suit users who require more than four outputs, higher per-screen resolution, or input refresh rates above 30 Hz at 4K.
HDMI 1.4 input with four HDMI outputs
The controller provides one HDMI 1.4 input with HDCP 1.4 support and four HDMI outputs locked to 1080p. This interface combination determines whether the source and displays can connect directly without additional converters.
Highlights
- Splits one 4K 30Hz signal across four 1080P displays
- Eight layout modes including 2×2, 1×4 and 4×1
- Stereo 3.5 mm jack and 5.1 optical SPDIF audio outputs
- HDMI 1.4 and HDCP 1.4 compliant for protected content
- Infrared remote included for front-of-room control
Specifications
| Brand | Jansicotek |
|---|---|
| Model | OZP1 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 4 HDMI |
| Specifications | Support 1 HDMI-Compatible/DVI input Support input HDMI-Compatible Support 4 HDMI-Compatible outputs Support 1 x 3.5mm Jack audio with 2.0CH audio Support 1 x Optical SPDIF audio with 5.1CH audio Support input 4K 30Hz,1920x1080P,24/30/50/60HZ,and lower resolution Support output resolution 1920x1080P Support multiple splicing modes, easy to operate, plug and play Multi screen splicing seamless mixing Porous design convection heat dissipation Non slip design is stable and non slip |
| Package Contents | 2x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1 |
Questions about this item
Should I pick a 1x3 or 2x2 layout for my four screens?
The controller supports eight modes including 1x3 and 2x2; choose 2x2 for a square video wall or 1x3 for a wide row of three displays plus one extra.
What does the 4K 30Hz input rating mean when the unit is driving four 1080p panels?
It accepts a 4K 30Hz source and splits it across the four HDMI outputs, each delivering 1920x1080 at up to 60Hz.
How does HDMI 1.4 with HDCP 1.4 limit the resolutions I can send to the wall?
The HDMI 1.4 input caps the source at 4K 30Hz, while each output is limited to 1080p at 60Hz with HDCP 1.4 content protection.
