Jansicotek
Jansicotek OZK8 2-Port USB-C KVM Switch 8K 100W PD
Two computers share one 8K monitor, seven USB 2.0 peripherals, Ethernet and audio with 100 W charging per port
- TypeUSB C
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share one monitor between two computers with a single keyboard and mouse
- Switch instantly between systems using the front push buttons
- Drive an 8K display at 60 Hz with DisplayPort 1.4 or HDMI 2.1
- Keep both laptops charged at up to 100 W each via Power Delivery 3.0
- Connect seven USB 2.0 devices plus Ethernet and 3.5 mm audio through one hub
Two-Port USB-C KVM Switch for Dual-Computer

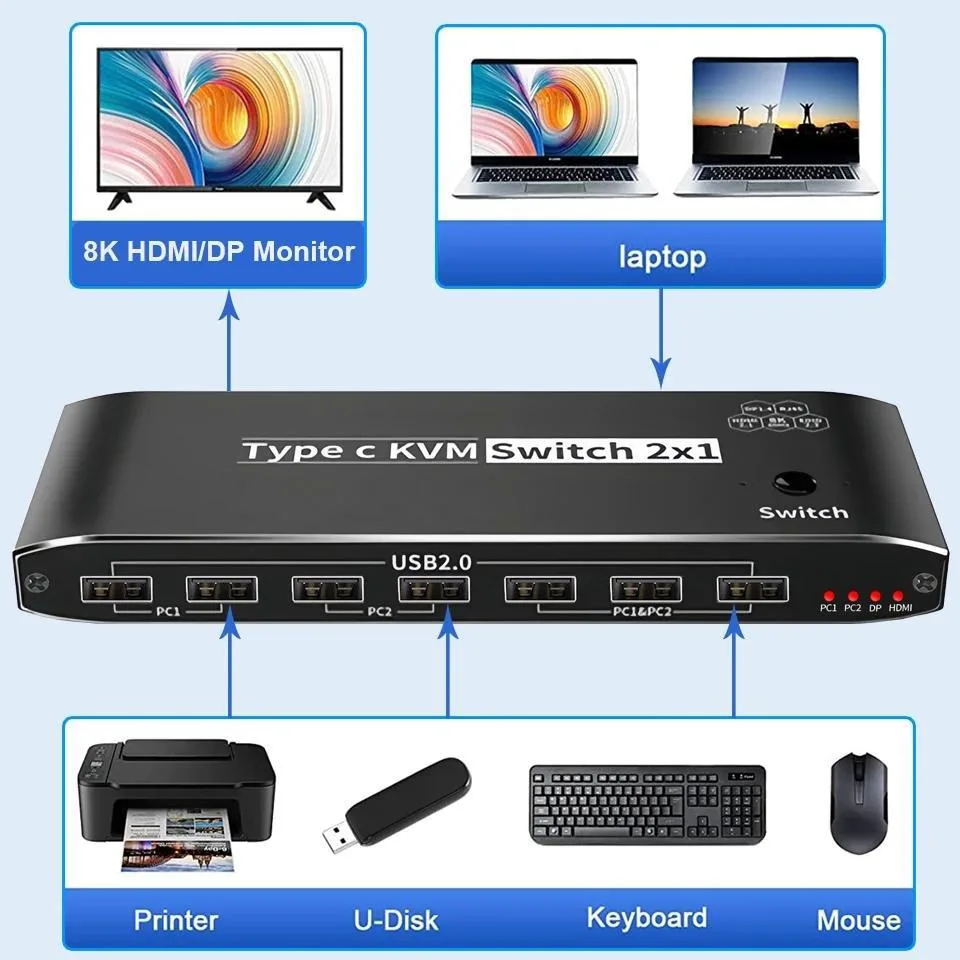

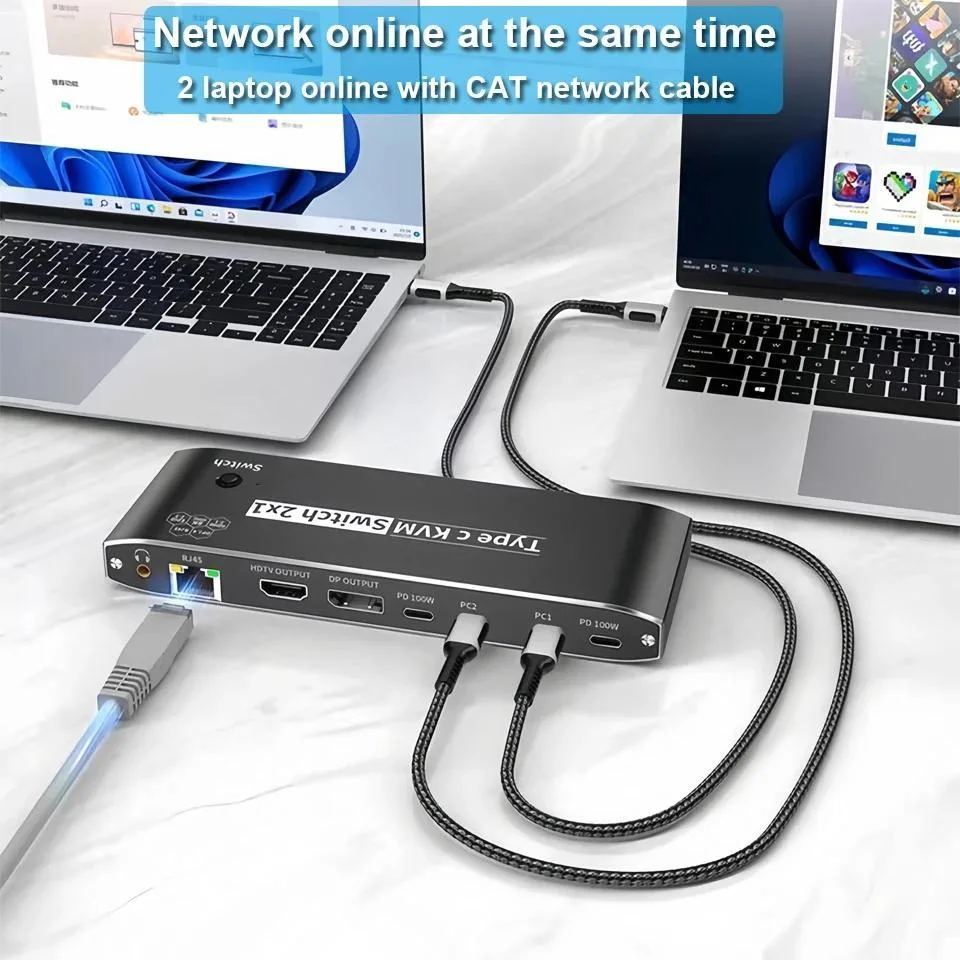

This Jansicotek OZK8 switch lets two USB-C computers share one HDMI or DisplayPort monitor, seven USB 2.0 peripherals, a 3.5 mm audio jack and a 100 Mbps Ethernet link. It targets users who alternate between two laptops or desktops and want a single keyboard, mouse and display setup without re-plugging cables.
Passive Thermal Design and 100 W Power Delivery
The unit has no fans and relies on its metal enclosure for heat dissipation, so it adds no audible noise to the desk. Each of the two USB-C upstream ports accepts up to 100 W of USB Power Delivery 3.0, feeding the connected laptop while the switch operates. A 1.2 m USB 3.2 Gen 2 Type-C cable is included for each computer link.
Sustained 8K 60 Hz Video Throughput with DSC
Under continuous load the switch maintains 7680 × 4320 at 60 Hz using Display Stream Compression over HDMI 2.1 (48 Gbps) or DisplayPort 1.4 (32.4 Gbps). Lower resolutions such as 4K at 144 Hz or 1080p at 165 Hz are also supported without frame drops. Switching between computers is manual via push buttons with a three-second auto-scan option.
Highlights
- Share one monitor between two computers with a single keyboard and mouse
- Switch instantly between systems using the front push buttons
- Drive an 8K display at 60 Hz with DisplayPort 1.4 or HDMI 2.1
- Keep both laptops charged at up to 100 W each via Power Delivery 3.0
- Connect seven USB 2.0 devices plus Ethernet and 3.5 mm audio through one hub
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK8 |
| Model | OZK8 |
| Type | USB C |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs. 2in 1out USB C KVM 8K Switcher: 2 x USB-C PC Input Ports, 2 x 100W PD Charge 1 x RJ45,two computers online at the same time 1 x 3.5mm jack,audio extractor 7x USB Ports |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x USB C Thunderbolt 4 KVM Switch 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) 1 x User Manual |
Questions about this item
How do I connect both laptops and the monitor to this OZK8 KVM switch?
Plug each laptop into a USB-C PC input using the included 1.2 meter cables, then connect your display to either the HDMI 2.1 or DP 1.4 output — not both. The step people miss is leaving the second video port empty; using both simultaneously disables 8K@60Hz DSC.
What will need replacement first on this Jansicotek OZK8?
The two 1.2 meter USB Gen 2 Type-C cables see the most plug cycles; expect to replace them before the switch itself. The unit has no internal fan or battery, so no scheduled maintenance is required.
What limit appears first during a long 8K@60Hz DSC session on this switch?
The 48 Gbps HDMI 2.1 bandwidth ceiling is reached at 8K@60Hz DSC, so sustained full-resolution output leaves no headroom for higher refresh rates or deeper colour.
