Jansicotek
Jansicotek OZK7 2-port USB-C KVM switch 8K60 100W PD
Lets two USB-C computers share one 8K60 display, three USB 2.0 devices and 100W charging via push-button switching
- TypeHDMI, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share one monitor and three USB 2.0 peripherals between two USB-C computers with push-button switching
- 8K at 60 Hz and 4K at 120 Hz, 144 Hz or 165 Hz via HDMI 2.1 or DisplayPort 1.4
- Up to 100 W Power Delivery 3.0 charging per laptop port keeps both machines powered
- Includes two 1.2 m USB-C Gen 2 cables for immediate setup
- Compact 5.43 x 5.35 x 1.46 in design with LED indicators and 3 s auto-scan interval
Two-Port USB-C KVM for Dual-Computer Workstations
The Jansicotek OZK7 lets two USB-C computers share a single display and three USB 2.0 peripherals through one keyboard and mouse set. It targets professionals who dock two laptops at the same desk and want instant switching without unplugging cables. Each computer connects through a USB-C port that carries video, data and up to 100 W of Power Delivery. Buyers who need more than two computer ports or who rely on legacy USB-A video outputs cannot use this switch.
Bundled Cables and Power Delivery Simplify Setup
Two 1.2 metre USB Gen 2 Type-C-to-Type-C cables are included, so both computers can be connected immediately. A USB-A-to-Type-C power cable feeds the switch itself, enabling the 100 W PD pass-through to each laptop. The switch draws its own operating power from this connection, so the host laptops see slightly less than the full 100 W at their ports. No separate power brick or driver installation is required for basic operation.
Compact Metal Chassis with Front-Facing Controls

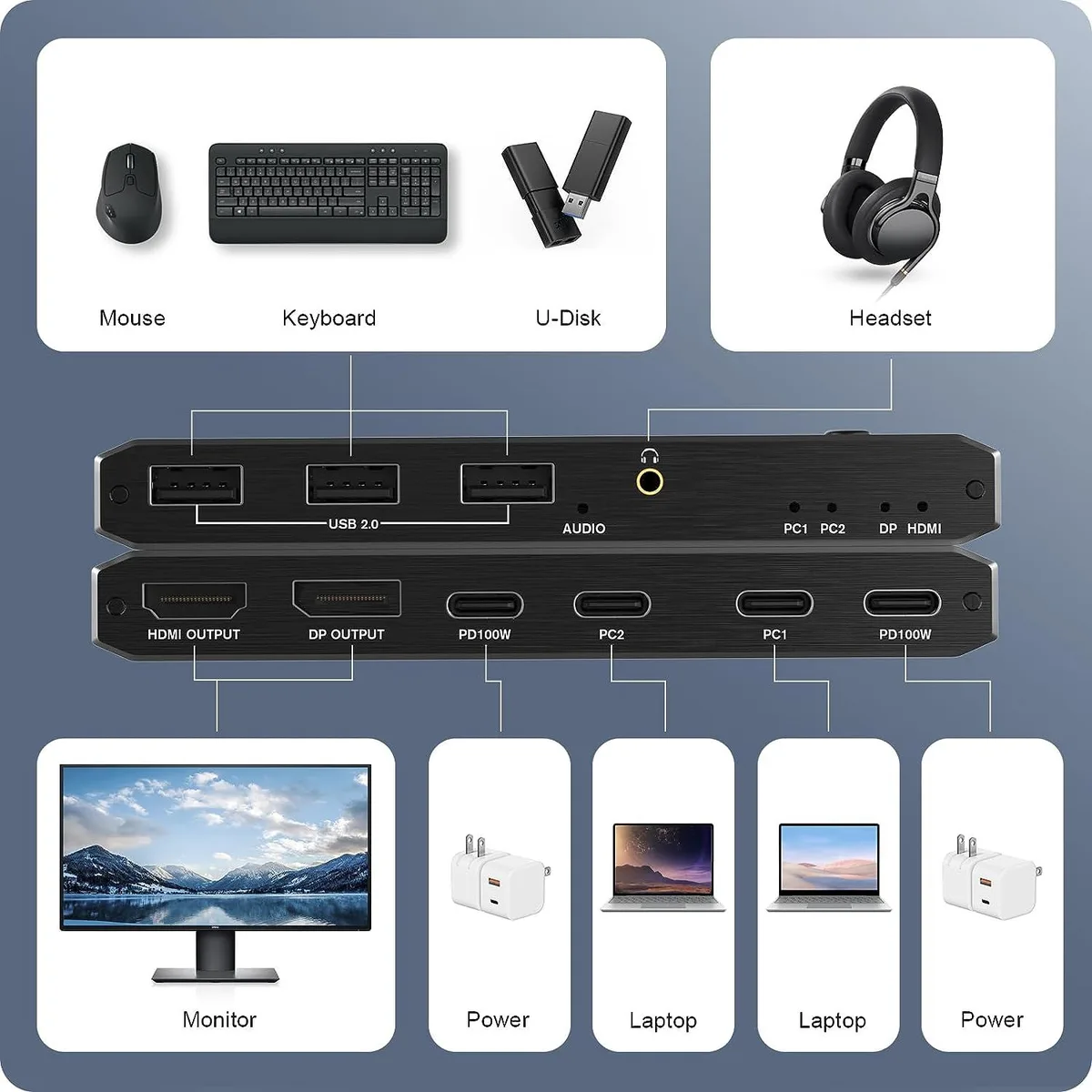

The unit measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces, fitting easily between monitors on a typical desk. Push-button switching and LED indicators sit on the front panel for quick access without reaching behind the display. One HDMI 2.1 or DisplayPort 1.4 output is selectable — only one can be active at a time — alongside three USB 2.0 ports and a 3.5 mm audio jack. The 7680 by 4320 maximum resolution supports 8K at 60 Hz with DSC.
Highlights
- Share one monitor and three USB 2.0 peripherals between two USB-C computers with push-button switching
- 8K at 60 Hz and 4K at 120 Hz, 144 Hz or 165 Hz via HDMI 2.1 or DisplayPort 1.4
- Up to 100 W Power Delivery 3.0 charging per laptop port keeps both machines powered
- Includes two 1.2 m USB-C Gen 2 cables for immediate setup
- Compact 5.43 x 5.35 x 1.46 in design with LED indicators and 3 s auto-scan interval
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK7 |
| Model | OZK7 |
| Type | HDMI, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 3 x USB 2.0 Output Port,two Computers share one set,you can connect 3 x USB2.0 Outp |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
Will the USB 2.0 ports or the 100 W PD controller need replacement after heavy daily use?
The switch provides three USB 2.0 ports and PD 3.0 charging up to 100 W; no user-serviceable parts are mentioned, so any failure would require replacing the whole unit.
Which limit appears first during long sessions — the 8K 60 Hz DSC bandwidth or the 100 W power budget?
Each USB-C port can deliver up to 100 W at 5 V, 9 V, 15 V or 20 V, while video tops out at 8K 60 Hz DSC; the power ceiling is reached before the video bandwidth limit.
Does the unit become noisy or hot when running two laptops and a monitor all day?
The spec lists no fan, so operation is silent; heat output is not quantified, but the switch draws power for its own logic, so some warmth is normal.
