Jansicotek
Jansicotek OZK7 2-port USB-C KVM switch 8K@60Hz 100W PD
A 2-port USB-C KVM switch lets two computers share one 8K@60Hz display, three USB 2.0 peripherals and audio with 100W power delivery
- TypeDisplayPort, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons

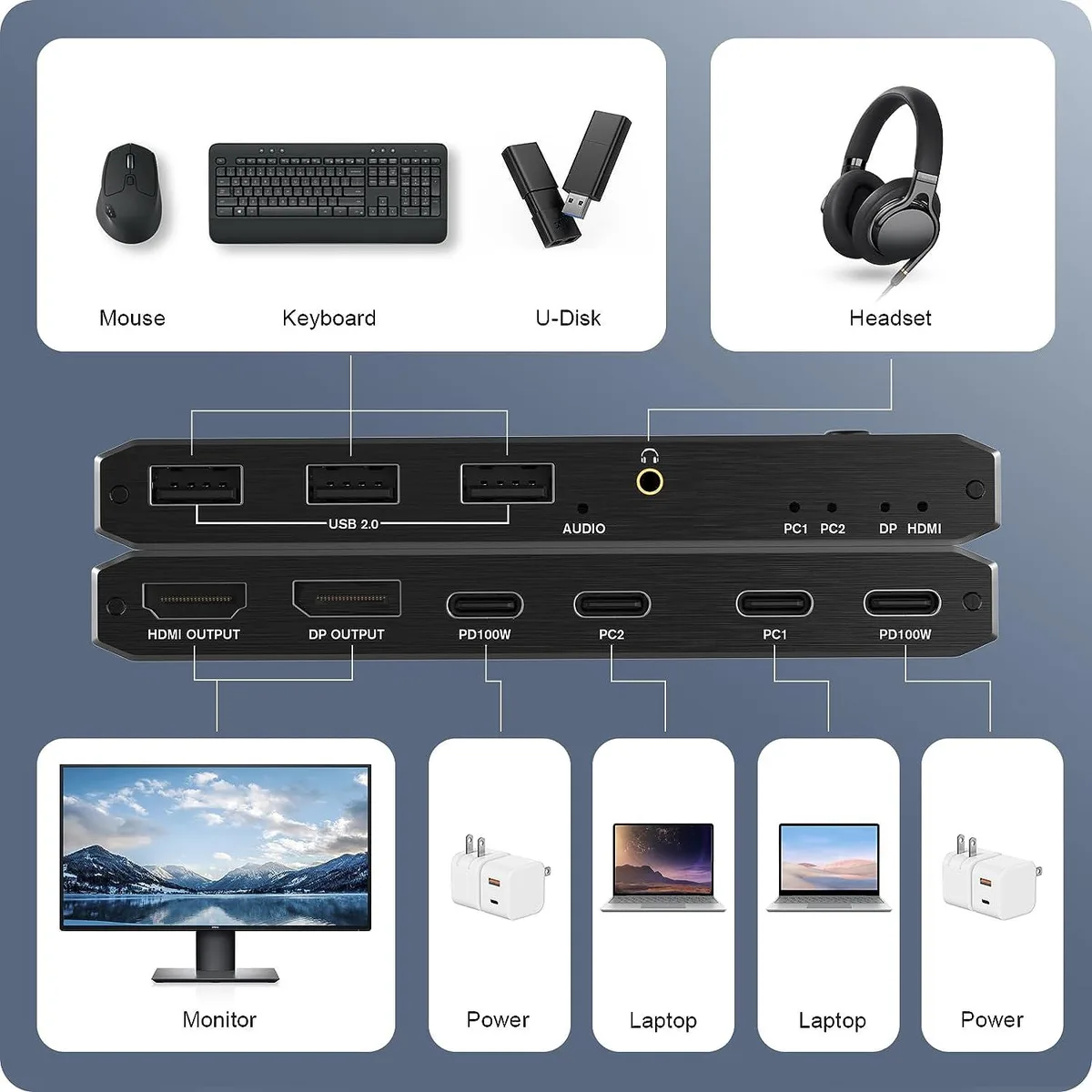

- Share one display between two USB-C computers via push-button switching
- Drive an 8K 60 Hz or 4K 120 Hz monitor through DP 1.4 or HDMI 2.1
- Power each laptop with up to 100 W PD 3.0 charging
- Connect three USB 2.0 peripherals and 3.5 mm audio to both systems
- Aluminium alloy chassis with LED status indicators and 1.2 m cables included
Two-computer USB-C KVM
The Jansicotek OZK7 lets two USB-C laptops or desktops share a single DisplayPort or HDMI monitor, three USB 2.0 peripherals and a 3.5 mm audio device. Push-button switching and a three-second auto-scan interval give instant control without software. An aluminium alloy chassis keeps the unit compact for desk or travel use.
Cable routing and power limits
Two 1.2 metre USB-C Gen 2 cables and a USB-A to USB-C power cable are included, so basic connection is straightforward. Each computer port accepts up to 100 W of Power Delivery at 5 V, 9 V, 15 V or 20 V, but the switch draws its own power from that budget, so the host receives slightly less than the adapter rating. Only one video output — DP 1.4 or HDMI 2.1 — can be active at a time.
Sustained 8K throughput
The DP 1.4 path delivers 32.4 Gbps and the HDMI 2.1 path 48 Gbps, supporting 8K at 60 Hz with DSC, 4K at 144 Hz with DSC and 1080p at 165 Hz. Deep colour at 8, 10 or 12 bit and chroma sampling up to 4:4:4 are maintained continuously. USB 2.0 peripherals run at 480 Mbps without bandwidth contention during long sessions.
Highlights
- Share one display between two USB-C computers via push-button switching
- Drive an 8K 60 Hz or 4K 120 Hz monitor through DP 1.4 or HDMI 2.1
- Power each laptop with up to 100 W PD 3.0 charging
- Connect three USB 2.0 peripherals and 3.5 mm audio to both systems
- Aluminium alloy chassis with LED status indicators and 1.2 m cables included
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK7 |
| Model | OZK7 |
| Type | DisplayPort, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 3 x USB 2.0 Output Port,two Computers share one set,you can connect 3 x USB2.0 Outp |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
How do I confirm the Jansicotek OZK7 is switching correctly between my two PCs after connecting everything?
Press the front push button and watch the LED indicators change; the active port LED lights up and the monitor should show the selected computer's desktop within a few seconds.
What cables and accessories come in the box, and what must I provide myself?
Included are the KVM switch, a USB-A to USB-C power cable, two 1.2 m USB-C Gen 2 cables, and a manual; you must supply your own HDMI or DisplayPort cable to the monitor and any USB 2.0 peripherals.
Which video output should I use — HDMI or DisplayPort — for 8K 60 Hz on the OZK7?
Both HDMI 2.1 and DisplayPort 1.4 support 8K 60 Hz with DSC; choose the one that matches your monitor's input and your GPU's capabilities.
