Jansicotek
Jansicotek OZK5 8K KVM Switch 2 Port USB-C
Connects two USB-C computers to one DisplayPort or HDMI monitor and four USB 2.0 peripherals with push-button switching
- TypeDisplayPort, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share one monitor and four USB devices between two computers
- Switch instantly with top-mounted push buttons
- Drive 8K at 60 Hz or 4K at 120 Hz over DisplayPort 1.4 or HDMI 2.1
- Includes two 1.2 m USB-C Gen 2 cables for immediate setup
- Compact 5.43 x 5.35 x 1.46 inch unit weighs 9.52 ounces
Two-Port 8K KVM for USB-C Systems

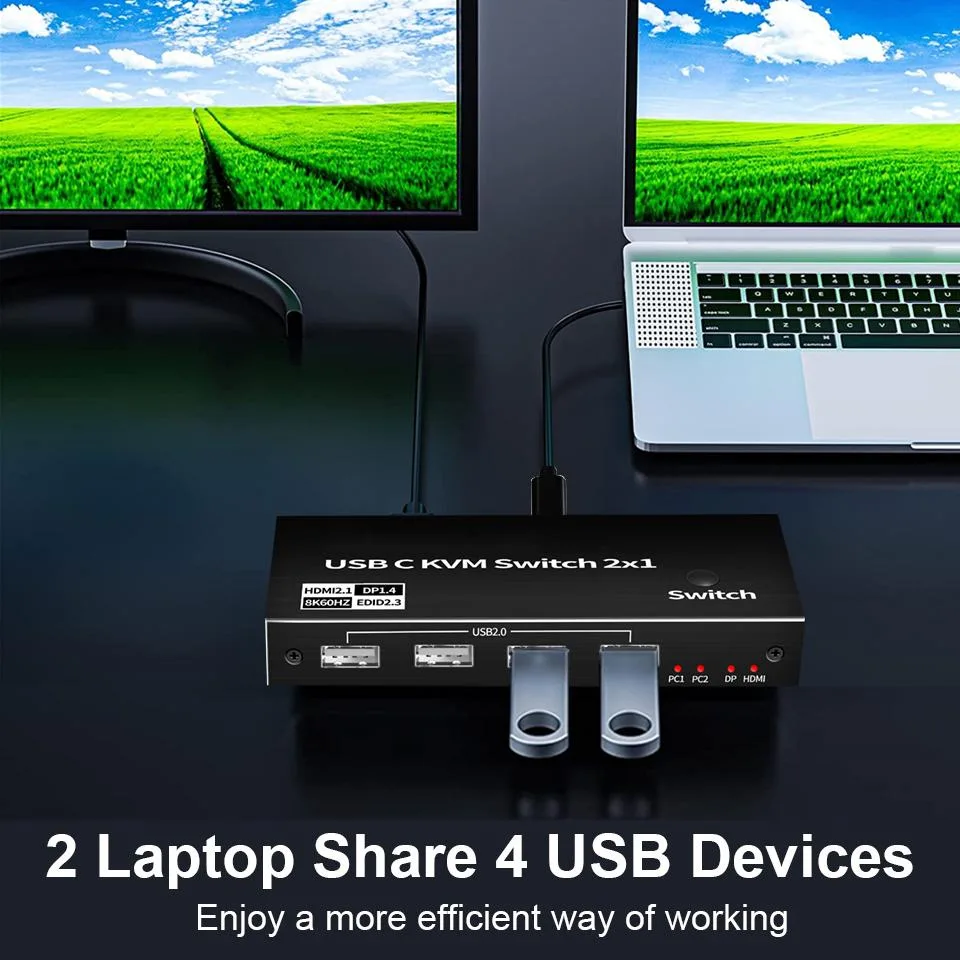

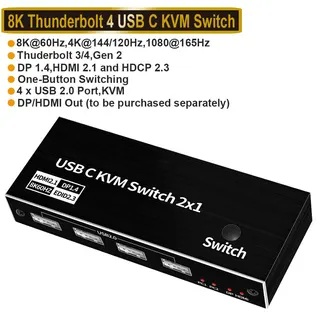

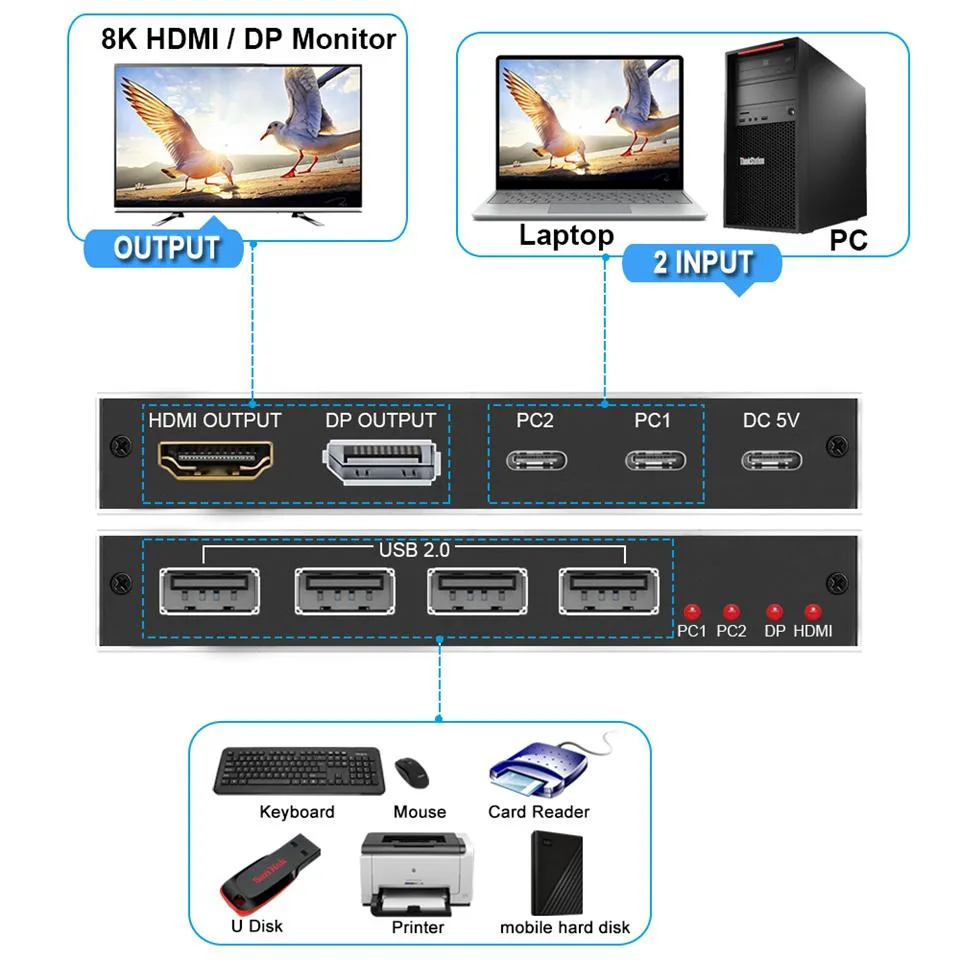

The Jansicotek OZK5 lets two USB-C computers share one DisplayPort or HDMI monitor plus four USB 2.0 peripherals. It supports resolutions up to 7680×4320 at 60 Hz with Display Stream Compression. A push-button on the unit toggles the active system.
Replaces Separate Dock and Switch Setups
Instead of a monitor dock plus a manual USB switch, this single box handles video, keyboard, mouse and two extra USB 2.0 devices. The jump is worth it when both hosts have USB-C Alt Mode or Thunderbolt and you need 4K at 120 Hz or 8K at 60 Hz without unplugging cables.
Sustained Operation with External Power
The switch draws power from a USB-A to USB-C cable connected to a charger or host port, so bandwidth stays stable during long sessions. Video runs at 32.4 Gbps over DisplayPort 1.4 or 48 Gbps over HDMI 2.1 while USB peripherals operate at 480 Mbps. Included 1.2 m Gen 2 cables keep the link clean at full speed.
Highlights
- Share one monitor and four USB devices between two computers
- Switch instantly with top-mounted push buttons
- Drive 8K at 60 Hz or 4K at 120 Hz over DisplayPort 1.4 or HDMI 2.1
- Includes two 1.2 m USB-C Gen 2 cables for immediate setup
- Compact 5.43 x 5.35 x 1.46 inch unit weighs 9.52 ounces
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | DisplayPort, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
What clearance does the 5.43 x 5.35 x 1.46 inch switch need on a desk?
The unit measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces, so it fits on any flat surface with at least that footprint and a few inches of overhead space for the cables.
Which button do I press to change computers, and what common mistake should I avoid?
Press the push button on top of the KVM to toggle between the two USB-C ports; the mistake is forgetting to connect the included USB-A to USB-C power cable, which the switch requires for stable 8K operation.
What will need replacement first — the cables or the switch itself?
The two 1.2 meter USB-C Gen 2 cables and the USB-A to USB-C power cable are the only consumable parts; the solid-state switch has no moving components and typically outlasts the cables.
