Jansicotek
Jansicotek OZK5 2-Port USB-C KVM Switch 8K@60Hz 1.2m Cables
A two-port USB-C KVM switch sharing one DisplayPort or HDMI monitor, keyboard, mouse and two USB 2.0 devices between two computers at up to 8K@60Hz with included 1.2m cables
- TypeDisplayPort, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share one monitor, keyboard and mouse between two USB-C computers
- 8K 60 Hz video via DisplayPort 1.4 or HDMI 2.1 with DSC
- Four USB 2.0 ports let you connect printer and other peripherals
- Front push-button switching with LED status indicator
- Two 1.2 m USB-C Gen 2 cables and power cable included

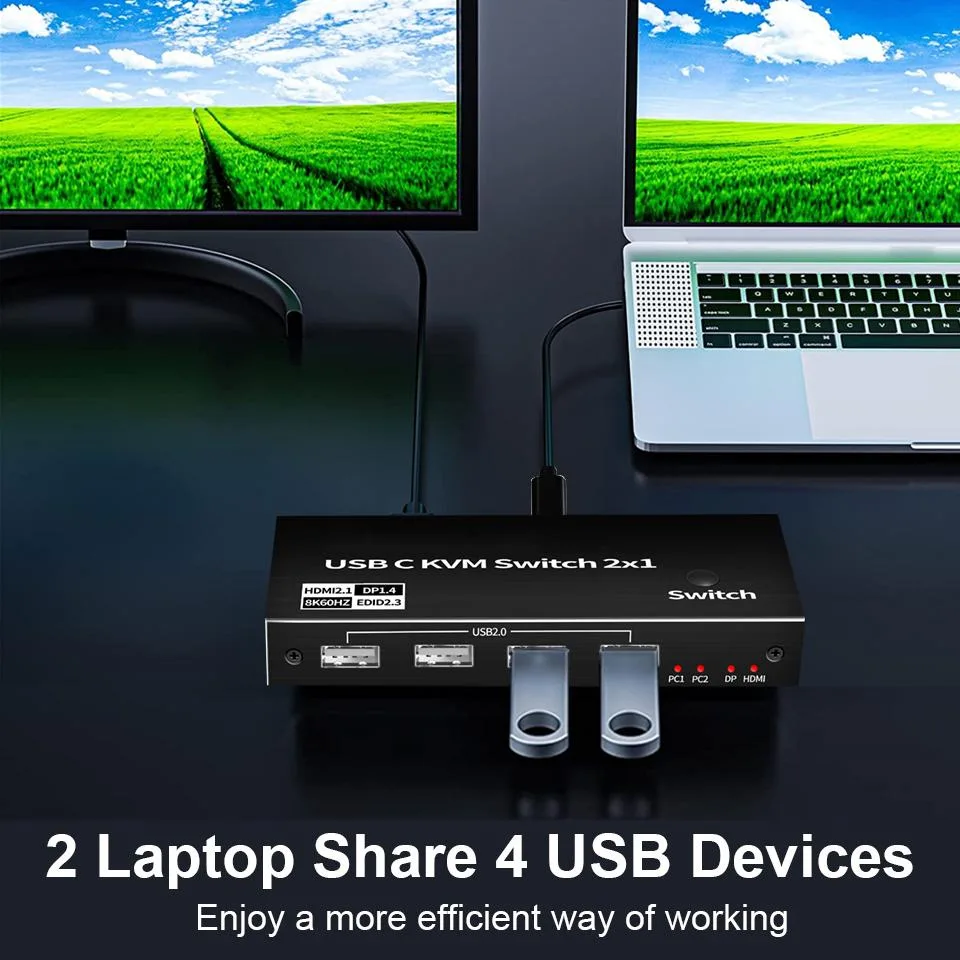

Two-Port USB-C KVM for Dual-Computer Workstations
The Jansicotek OZK5 lets one keyboard, one mouse, two USB 2.0 peripherals and a single DisplayPort or HDMI monitor control two USB-C laptops or desktops. Two 1.2 metre USB 3.1 Gen 2 cables are included, and a USB-A-to-USB-C power lead must be connected for operation. It suits home offices, test benches or any desk where two systems share one display.

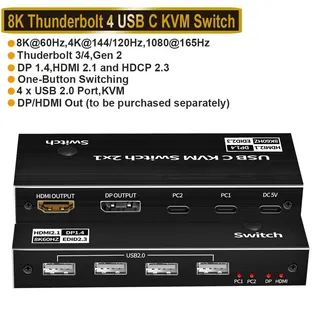

Sustained 8K@60Hz Switching With DSC
Video bandwidth reaches 32.4 Gbps over DisplayPort 1.4 or 48 Gbps over HDMI 2.1, supporting 7680×4320 at 60 Hz with Display Stream Compression. Lower resolutions such as 4K at 120 Hz or 144 Hz and 1080p at 165 Hz are also maintained without frame drops during extended sessions. Switching is manual via a push button with a three-second auto-scan option, and LED indicators show the active port.
Compact Metal Chassis With Front-Facing Ports

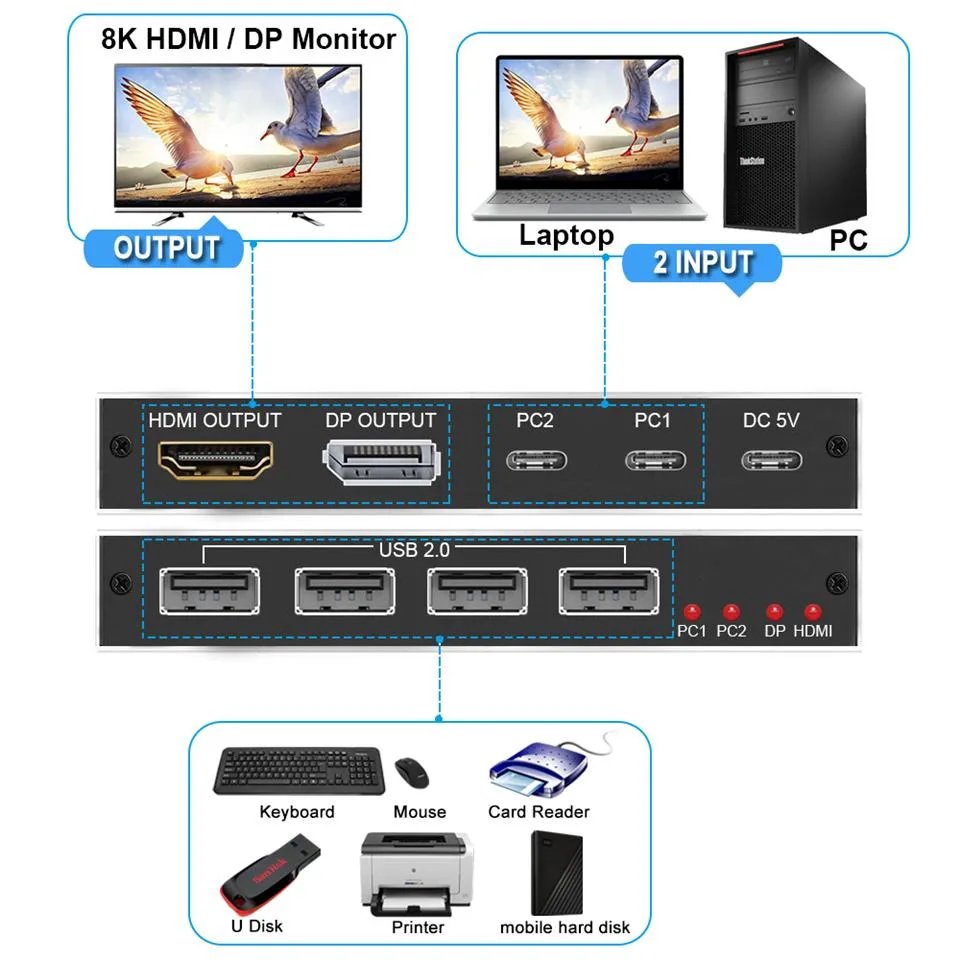

The enclosure measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces, fitting neatly between two laptops. Four USB 2.0 Type-A ports on the front provide 480 Mbps each for keyboards, mice, printers or storage drives. One DisplayPort and one HDMI output sit side by side on the rear, allowing a single-cable monitor connection without adapters.
Highlights
- Share one monitor, keyboard and mouse between two USB-C computers
- 8K 60 Hz video via DisplayPort 1.4 or HDMI 2.1 with DSC
- Four USB 2.0 ports let you connect printer and other peripherals
- Front push-button switching with LED status indicator
- Two 1.2 m USB-C Gen 2 cables and power cable included
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | DisplayPort, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
How hot or noisy does the OZK5 get when I leave it switching between two laptops all day?
The unit has no fan and draws power only through the included USB-A-to-C cable, so it runs silently and stays cool during continuous use.
What cables or adapters must I already have to connect my monitor to the OZK5?
You need your own DisplayPort 1.4 or HDMI 2.1 cable — the switch provides two 1.2 m USB-C Gen 2 cables for the computers and a USB-A-to-C power cable.
Will my older 4K 60 Hz monitor work if I plug it into the HDMI port on this switch?
Yes — the HDMI 2.1 port supports 1080p at 60/120/165 Hz, 4K at 60/120/144 Hz and 8K at 30/60 Hz, so a 4K 60 Hz display works without changes.
