Jansicotek
Jansicotek OZK5 2-port USB-C 8K KVM Switch
Share one monitor and peripherals between two USB-C computers with 8K 60 Hz video and push-button switching
- TypeDisplayPort, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share one monitor across two USB-C computers
- Switch instantly with top-mounted push buttons
- Drive 8K at 60 Hz with Thunderbolt 4 hosts
- Connect keyboard, mouse and two USB 2.0 peripherals
- Includes two 1.2 m USB-C Gen 2 cables
Two-computer USB-C KVM

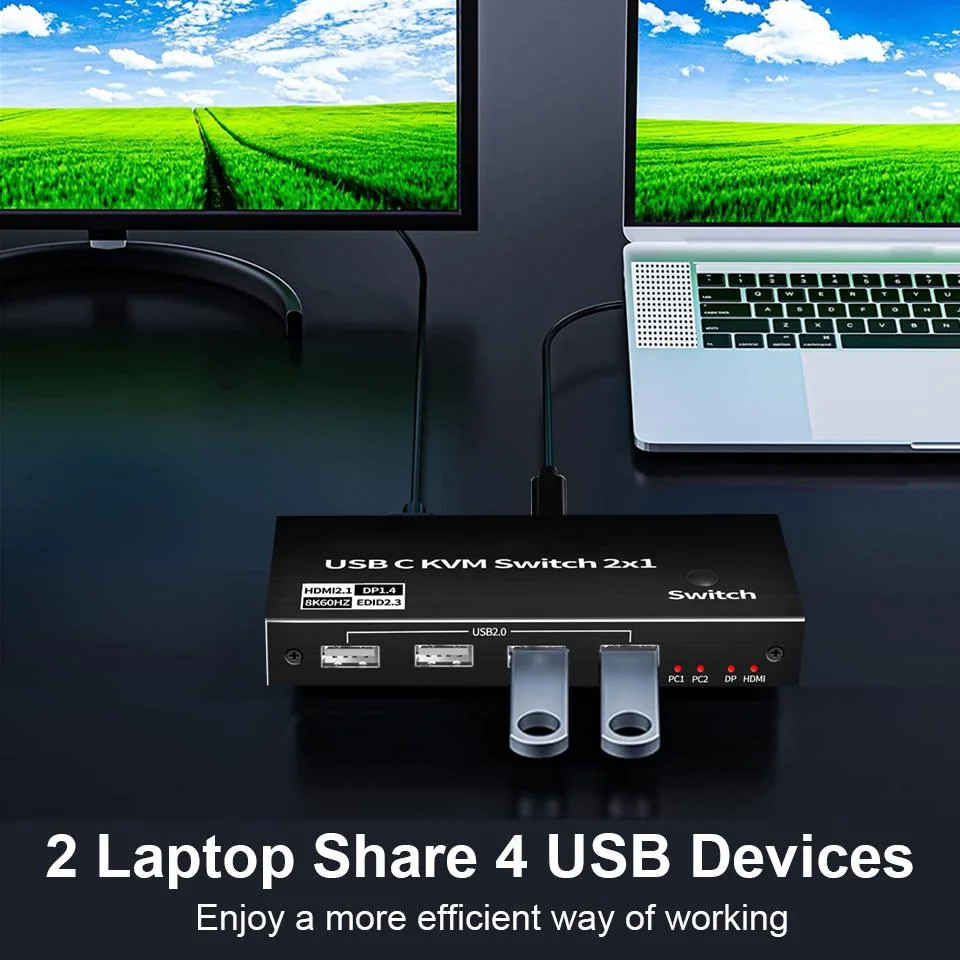

The Jansicotek OZK5 lets you share one DisplayPort or HDMI monitor, a keyboard, a mouse and two USB 2.0 peripherals between two USB-C laptops or desktops. A push-button on the top panel switches the active system instantly. The unit supports video up to 7680 by 4320 at 60 Hz with DSC. It is aimed at users who alternate between two computers at a single desk.
Included cables and power
Two 1.2 metre USB-C 3.1 Gen 2 cables connect the host computers directly, so no separate video or data leads are required. A USB-A to USB-C power cable draws the extra power the switch needs from any USB charger or port. The manual completes the package. No software installation is necessary for basic switching.
Desktop build and ports

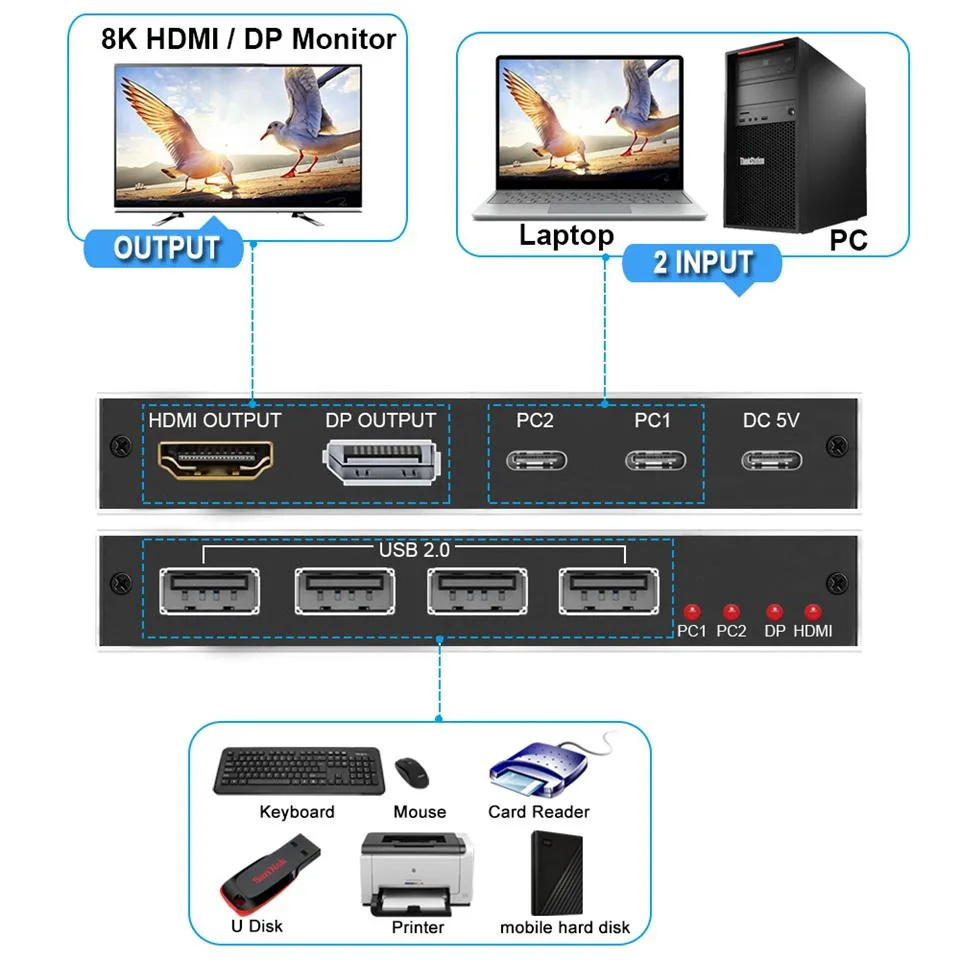

The enclosure measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces, making it small enough to sit beside a monitor. Front-facing push buttons and LED indicators give immediate visual confirmation of the active input. Rear-facing ports keep cables tidy: two USB-C upstream, one DisplayPort, one HDMI and four USB 2.0 Type-A downstream.
Highlights
- Share one monitor across two USB-C computers
- Switch instantly with top-mounted push buttons
- Drive 8K at 60 Hz with Thunderbolt 4 hosts
- Connect keyboard, mouse and two USB 2.0 peripherals
- Includes two 1.2 m USB-C Gen 2 cables
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | DisplayPort, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
Will the included USB-C cables need replacing if I move the computers farther apart?
The box supplies two 1.2 meter USB-C Gen 2 cables; longer runs would require separate certified cables.
What resolution drops first when I run the monitor at 8K 60 Hz all day?
8K at 60 Hz needs DisplayPort 1.4 or HDMI 2.1 with DSC and a Thunderbolt 4 source; bandwidth limits appear before thermal ones.
Does the unit get hot or noisy when powered continuously?
It has no fan; heat stays low because the switch only passes video and USB 2.0 signals, and external power comes from a USB-A to USB-C cable.
