Jansicotek
Jansicotek OZK5 2-Port 8K USB-C KVM Switch
Share one DisplayPort or HDMI monitor, keyboard, mouse and two USB 2.0 devices between two USB-C computers with 8K@60Hz video and push-button switching
- TypeHDMI, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons

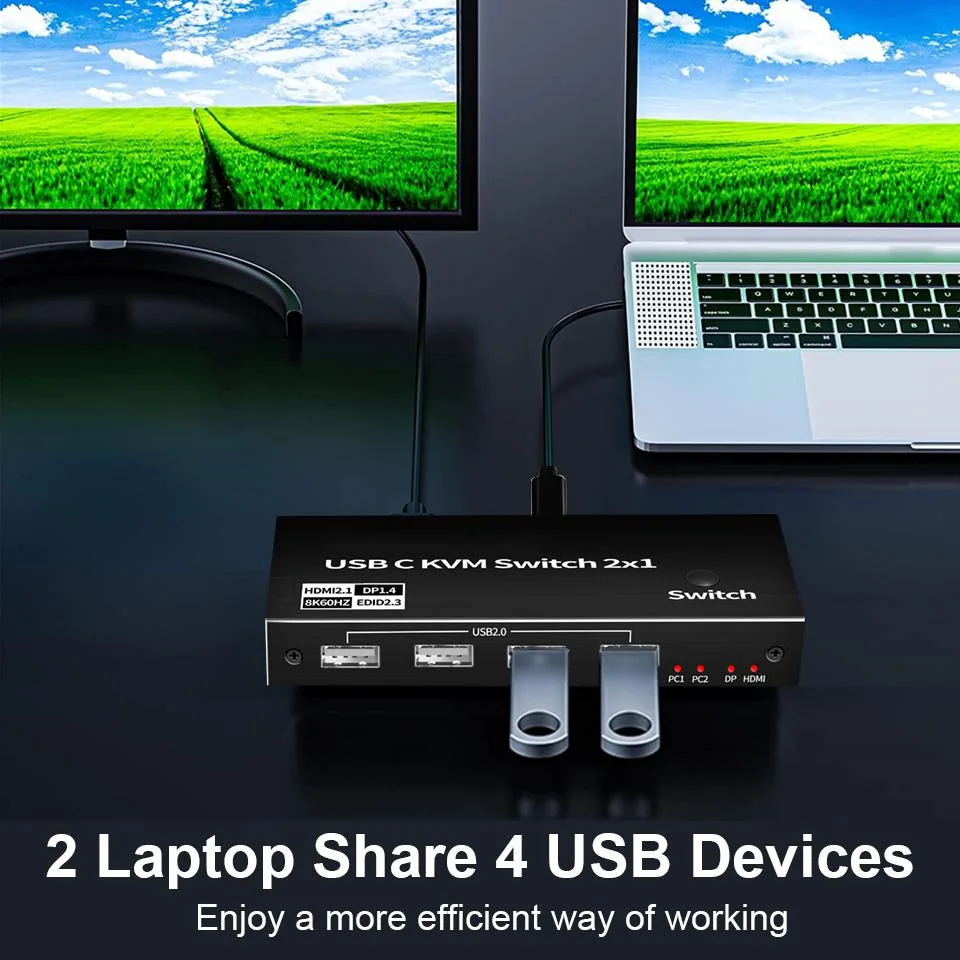

- Share one monitor and four USB devices across two computers
- Switch instantly with top-mounted push buttons
- 8K at 60 Hz via DisplayPort 1.4 or HDMI 2.1
- Includes two 1.2 m USB-C Gen 2 cables
- Powered by USB-A to USB-C cable
8K USB-C KVM Switch for Dual Computers

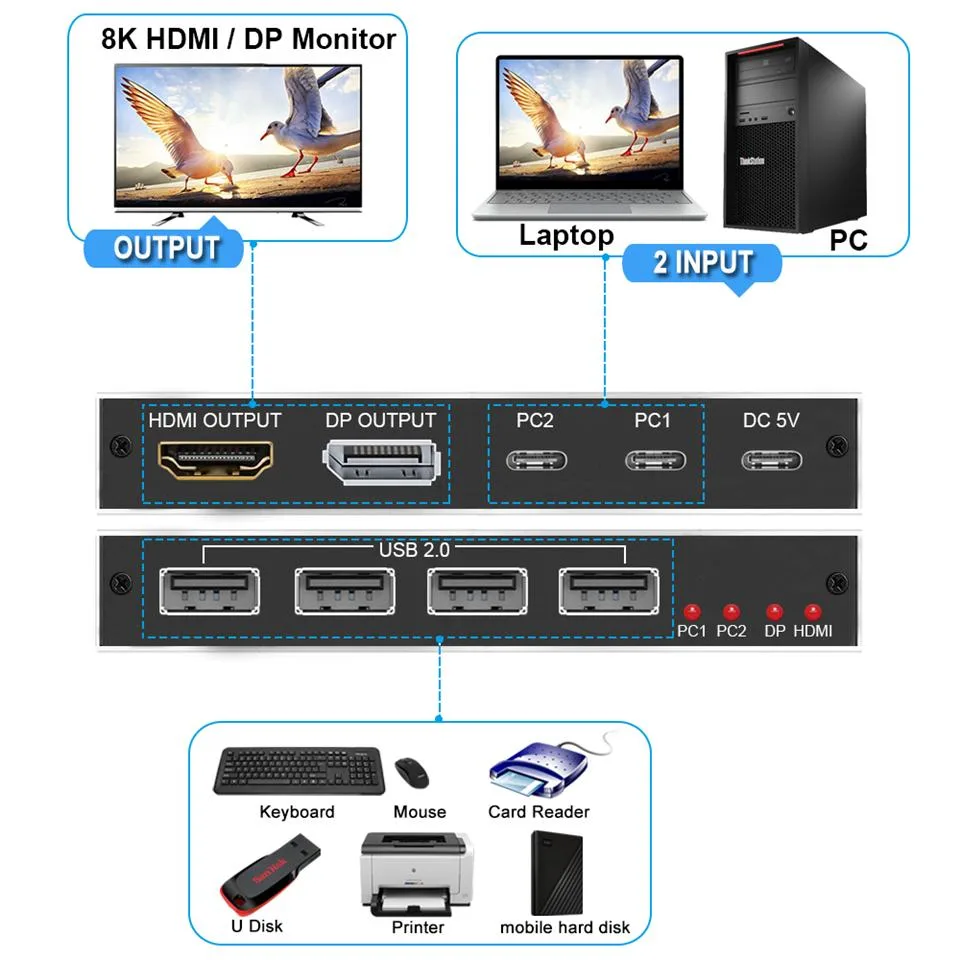

The Jansicotek OZK5 is a new KVM switch that lets two USB-C computers share one DisplayPort or HDMI monitor, a keyboard, a mouse and two additional USB 2.0 peripherals. It includes two 1.2 metre USB-C Gen 2 cables and a USB-A to USB-C power cable. Manual push buttons on the top panel select the active system, and LED indicators show the current port. An external power source is required via the supplied cable.
Suited for Thunderbolt 4 hosts needing 8K@60 Hz
This switch reaches 8K at 60 Hz only when both connected computers provide Thunderbolt 4 USB-C ports with DisplayPort 1.4 Alternate Mode. Systems limited to Thunderbolt 3 or USB-C Gen 2 max out at 4K@60 Hz. Buyers whose laptops lack Thunderbolt 4 will not see the advertised 8K resolution. Gamers targeting 4K@120 Hz or 144 Hz also need Thunderbolt 4 hosts and a compatible monitor.
Thunderbolt 4 host requirement decides 8K capability
The single specification that determines whether this KVM delivers 8K@60 Hz is the USB-C port standard on each computer. Only Thunderbolt 4 sources enable the full 48 Gbps HDMI 2.1 or 32.4 Gbps DisplayPort 1.4 bandwidth needed for 7680×4320 at 60 Hz with DSC. Without Thunderbolt 4 on both inputs, the maximum supported resolution drops to 4K@60 Hz.
Highlights
- Share one monitor and four USB devices across two computers
- Switch instantly with top-mounted push buttons
- 8K at 60 Hz via DisplayPort 1.4 or HDMI 2.1
- Includes two 1.2 m USB-C Gen 2 cables
- Powered by USB-A to USB-C cable
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | HDMI, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |

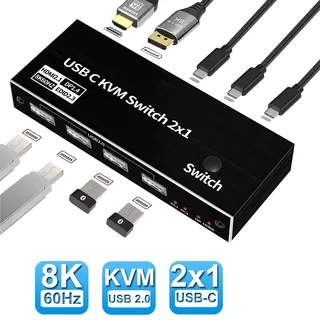

| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
How do I confirm the OZK5 is passing 8K at 60 Hz to my monitor?
Select the DP or HDMI output on the switch, set the source to a Thunderbolt 4 host, and verify the display reports 7680x4320 at 60 Hz in its on-screen menu.
Which cables and accessories are included with the OZK5?
The box contains the KVM unit, two 1.2 metre USB-C 3.1 Gen-2 cables for the computer links, a USB-A to USB-C power cable, and a user manual.
Should I choose the DP or HDMI output for 4K at 120 Hz gaming?
Both DP 1.4 and HDMI 2.1 support 4K at 120 Hz with DSC when the host uses Thunderbolt 4; pick the port that matches your monitor’s input.
