Jansicotek
Jansicotek OZK5 2-PC 4-Device USB-C 8K@60Hz KVM Switch
Share one 8K monitor and four USB devices between two USB-C computers with push-button switching
- TypeHDMI, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share one monitor and four USB devices between two PCs
- Switch instantly with front push-button and auto-scan every 3 seconds
- Drive 8K at 60 Hz via DisplayPort 1.4 or HDMI 2.1
- Includes two 1.2 m USB-C Gen 2 cables for tidy setup
- Powered by USB-A to USB-C cable for stable operation
Two-PC USB-C KVM Switch

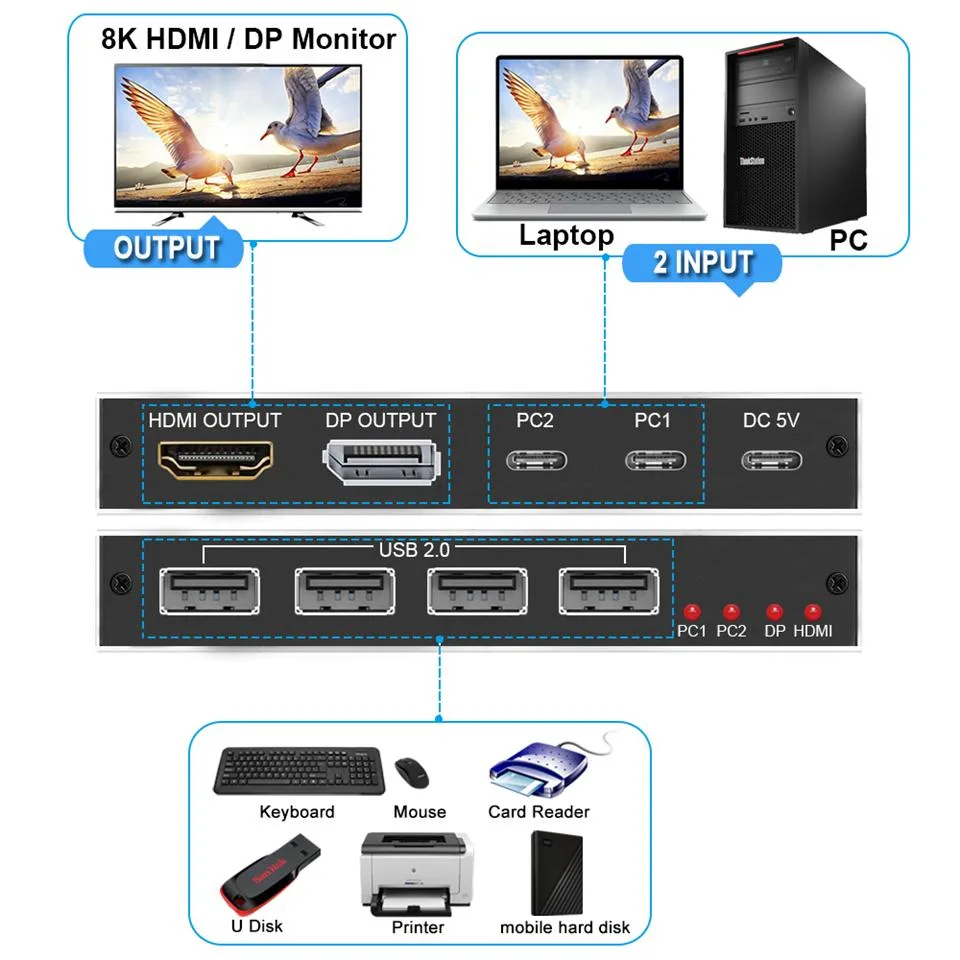

The Jansicotek OZK5 lets two USB-C computers share one DisplayPort or HDMI monitor plus four USB 2.0 peripherals. It supports 8K at 60 Hz with DSC when the host provides Thunderbolt 4, and 4K at up to 144 Hz with DSC. A push button on the unit toggles the active system, and LEDs show which port is live. External power via the included USB-A-to-C cable is required for operation.
For dual-system desks, not multi-monitor rigs
This switch suits users who alternate between two laptops or a laptop and a desktop on a single screen and want keyboard, mouse and two extra USB devices to follow the switch. It will not drive two monitors simultaneously, and it cannot pass USB 3.x or Thunderbolt data through its four downstream ports. Buyers who need more than two computer inputs or higher-speed peripheral passthrough should look elsewhere.
Steady 8K throughput with active cooling not needed
Under continuous use the aluminium enclosure dissipates heat without a fan, keeping signal integrity stable during long work sessions. The 1.2 m Gen 2 cables maintain the 480 Mbps USB 2.0 link and the full DisplayPort 1.4 or HDMI 2.1 bandwidth up to the stated 2.0 m maximum. Auto-scan can cycle every 3 seconds, but manual switching avoids any brief signal renegotiation delay.
Highlights
- Share one monitor and four USB devices between two PCs
- Switch instantly with front push-button and auto-scan every 3 seconds
- Drive 8K at 60 Hz via DisplayPort 1.4 or HDMI 2.1
- Includes two 1.2 m USB-C Gen 2 cables for tidy setup
- Powered by USB-A to USB-C cable for stable operation
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | HDMI, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
Do both of my computers need USB-C ports that support Thunderbolt 4 to reach 8K@60Hz?
Yes, the switch requires Thunderbolt 4 on each USB-C input to deliver 8K@60Hz; Thunderbolt 3 or USB-C Gen 2 max out at 4K@60Hz.
Will my existing 1080p@165Hz monitor work through the HDMI 2.1 output?
The HDMI 2.1 port supports 1080p@165Hz, so a 1080p high-refresh monitor will work without changes.
How do I confirm the switch is actively passing 8K@60Hz after I press the front button?
The LED indicator shows the active PC, and your OS display settings should report 7680×4320@60Hz with DSC enabled.
