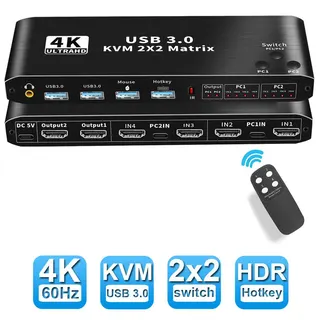

Jansicotek OZK3-1 2x2 HDMI Matrix KVM Switch 4K 60Hz
Lets you share one keyboard, mouse and dual monitors across two computers at up to 4K 60 Hz with front-panel buttons or hot-keys
- TypeHDMI, USB
- PC ConnectorsHDMI and USB-C
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution3840 x 2160
- PC SelectionPush Buttons/Hot Keys
- Control two computers with one keyboard and mouse
- Dual 4K 60 Hz monitors for expanded workspace
- HDMI 2.0b and HDCP 2.3 for protected content
- USB 3.0 ports for fast peripheral sharing

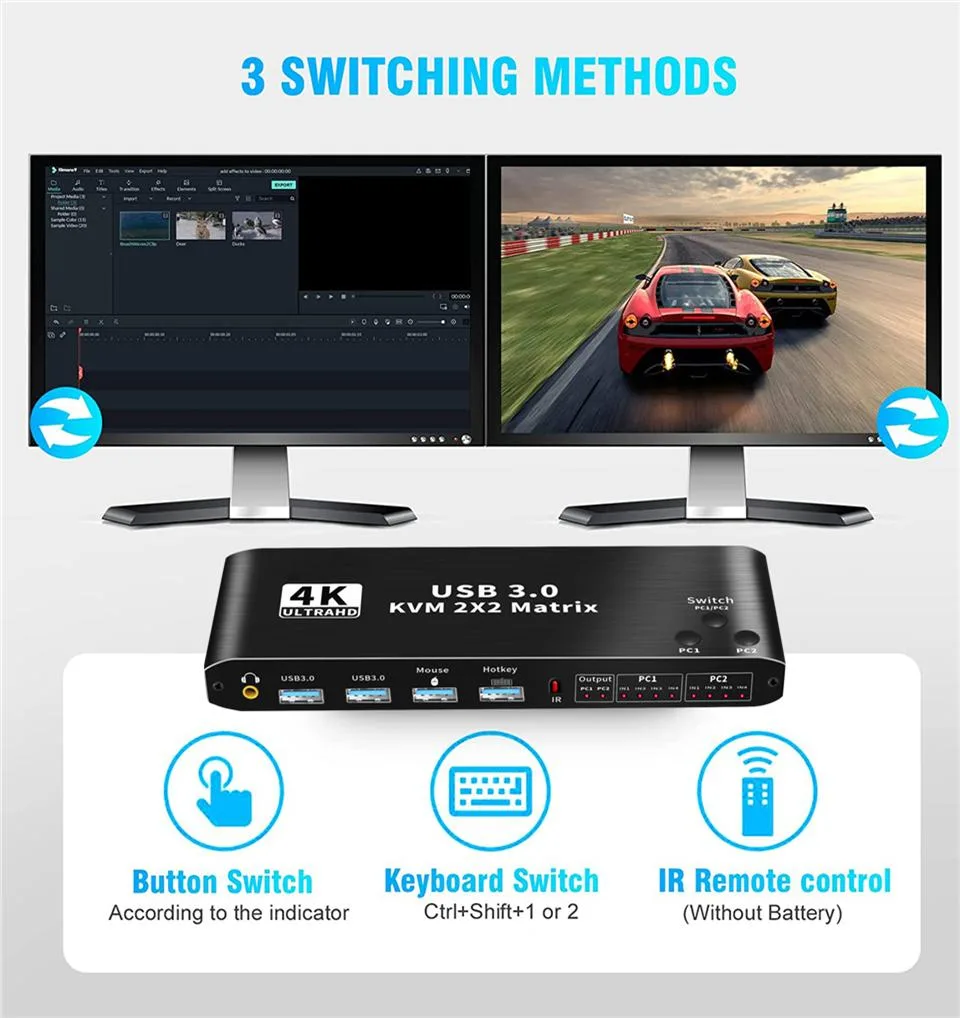

- Push-button, hot-key and IR remote switching
2×2 HDMI matrix for dual-PC workstations

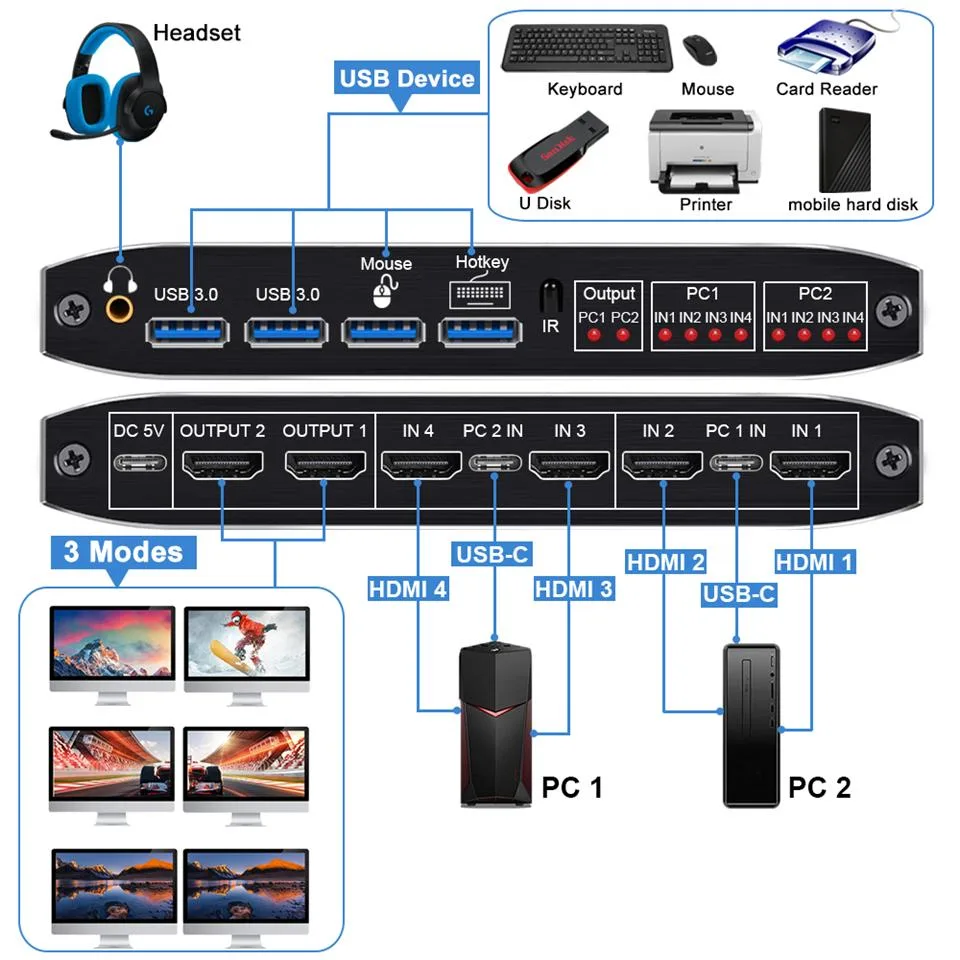

This Jansicotek OZK3-1 unit lets two computers share one keyboard, one mouse and two HDMI monitors. Each source can be routed to either display independently, so a user can view both systems side by side or mirror one source across both screens. Switching is handled by front-panel push buttons, hot-key sequences or the supplied IR remote.
Sustained 4K 60 Hz operation with HDCP 2.3
The switch maintains full 3840×2160 resolution at 60 Hz continuously, and also passes 1080p signals at 120 Hz or 144 Hz without frame drops. HDMI 2.0b bandwidth and HDCP 2.3 compliance keep protected content flowing during long editing, monitoring or streaming sessions. An automatic scan mode cycles inputs every three seconds for unattended oversight.
Aluminium chassis with USB 3.0 and audio breakout
The alloy shell resists corrosion and shields signals in busy rack or desk environments. Four USB 3.0 ports and two USB-C upstream ports provide 5 Gbps peripheral bandwidth for drives, printers or 3D printers. A separate stereo audio output extracts sound from the active HDMI stream, and the compact 176×51×21 mm footprint fits tight spaces.
Highlights
- Control two computers with one keyboard and mouse
- Dual 4K 60 Hz monitors for expanded workspace
- HDMI 2.0b and HDCP 2.3 for protected content
- USB 3.0 ports for fast peripheral sharing
- Push-button, hot-key and IR remote switching
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK3-1 |
| Model | OZK3-1 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| Audio Features | with Audio |
| USB Features | with USB support |
| Application | KVM Matrix allows control 2 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 2 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another. |
| Features | Support HDMI 2.0b HDCP 2.3 Compliant with DVI to HDMI,DP to HDMI Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Supports Extended / Mirror mode Supports Crisscross/Matrix Mode |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI KVM USB Matrix 2 x USB data cable 1 x USB power cable 1 x IR Remote Control(Without AAA battery) 1 x User Manual |
Questions about this item
How much power does the OZK3-1 draw when running all day?
The unit is powered through an included USB power cable; no separate power adapter or wattage figure is provided by the manufacturer.
Which cables must I already have to connect two computers and two monitors?
Each computer needs an HDMI 2.0 cable and a USB 3.0 cable; each monitor needs an HDMI 2.0 cable. The box includes two USB data cables and one USB power cable only.
Will the OZK3-1 pass 1080@144Hz from an older GPU to my current monitors?
Yes — the switch supports 1080@144Hz, 1080@120Hz and 4K@60Hz through its HDMI 2.0b ports with HDCP 2.3 compliance.
