Jansicotek

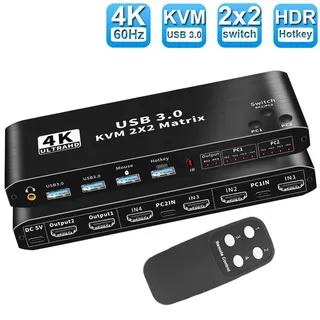

Jansicotek OZK3-1 2×2 HDMI/USB-C KVM Switch 4K@60Hz
Switches two computers to dual monitors at 4K 60Hz with USB 3.0 peripheral sharing and IR remote control
- TypeHDMI, USB
- PC ConnectorsHDMI and USB-C
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution3840 x 2160
- PC SelectionPush Buttons/Hot Keys
- Control two computers with one keyboard and mouse across two displays
- Switch sources instantly via front buttons, hotkeys or IR remote
- View crisp 4K at 60 Hz or 1080p at 144 Hz with HDMI 2.0b and HDCP 2.3
- Connect USB 3.0 peripherals such as scanners, drives or cameras through the built-in hub
- Operate in mirror, extended or criss-cross layouts to suit any workflow
Dual-computer KVM matrix
The Jansicotek OZK3-1 is a 2×2 HDMI and USB-C KVM switch that lets one keyboard, mouse and dual-monitor setup control two computers, laptops or game consoles. It targets professionals and enthusiasts who need simultaneous access to two hosts without swapping cables.
4K60 headroom and high-refresh limits
Video passes through HDMI 2.0b with HDCP 2.3 at up to 3840×2160 at 60 Hz, 1080p at 144 Hz or 1080p at 120 Hz. The matrix runs out of bandwidth above 4K60, so 4K high-refresh or 8K sources cannot be driven at their native rates.

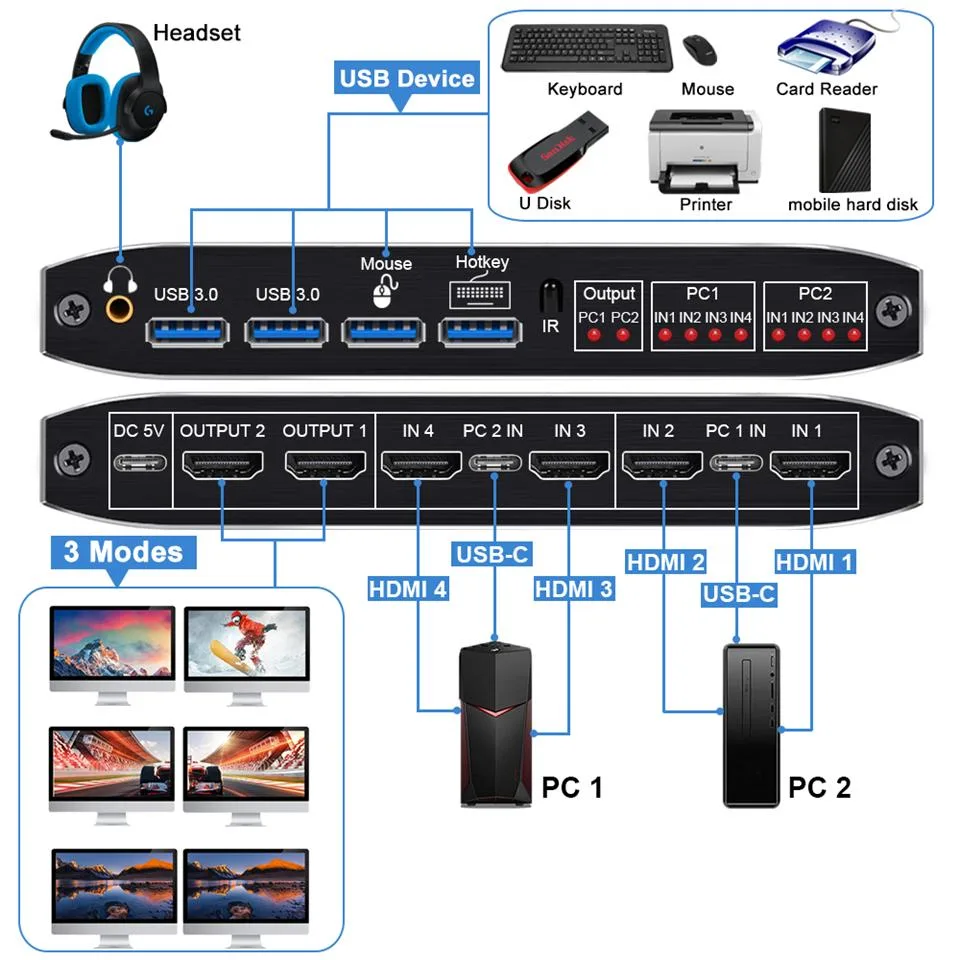

USB 3.0 sharing and push-button switching

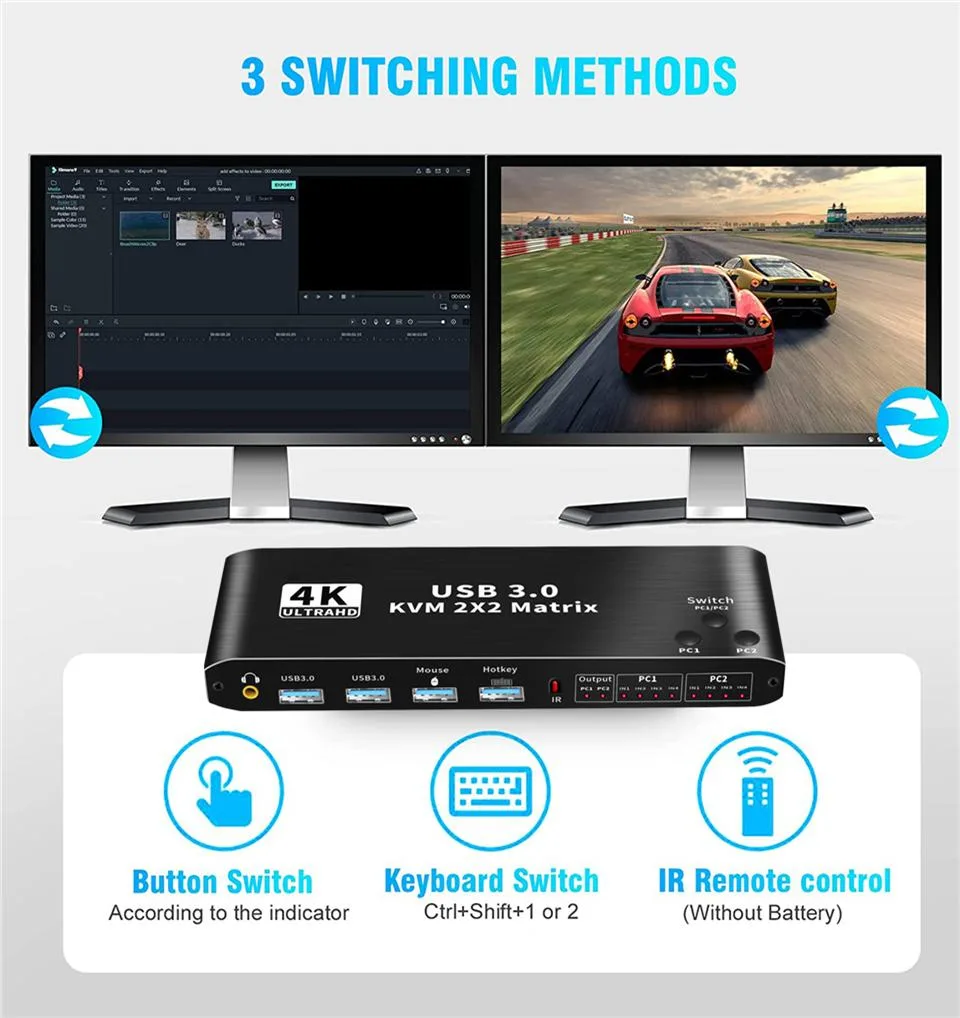

Two USB 3.0 peripheral ports share printers, scanners, drives or cameras between the active host. Front-panel push buttons, hot-key sequences and an IR remote change the active computer, while LEDs show the current routing. The metal enclosure measures 5.43 × 5.35 × 1.46 inches and weighs 9.52 ounces.
Highlights
- Control two computers with one keyboard and mouse across two displays
- Switch sources instantly via front buttons, hotkeys or IR remote
- View crisp 4K at 60 Hz or 1080p at 144 Hz with HDMI 2.0b and HDCP 2.3
- Connect USB 3.0 peripherals such as scanners, drives or cameras through the built-in hub
- Operate in mirror, extended or criss-cross layouts to suit any workflow
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK3-1 |
| Model | OZK3-1 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| Audio Features | with Audio |
| USB Features | with USB support |
| Application | KVM Matrix allows control 2 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 2 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another. |
| Features | Support HDMI 2.0b HDCP 2.3 Compliant with DVI to HDMI,DP to HDMI Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Supports Extended / Mirror mode Supports Crisscross/Matrix Mode |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI KVM USB Matrix 2 x USB data cable 1 x USB power cable 1 x IR Remote Control(Without AAA battery) 1 x User Manual |
Questions about this item
Will the OZK3-1 pass 4K 60 Hz from a legacy GPU that only has HDMI 1.4?
The switch complies with HDMI 2.0b and HDCP 2.3; a source limited to HDMI 1.4 will be restricted to its own maximum resolution and refresh rate.
How do I confirm both monitors are receiving 3840×2160 at 60 Hz after connecting?
The front-panel LEDs show the active computer and monitor paths; check each display's on-screen information to verify 4K 60 Hz signal lock.
Which cables are included and what must I supply for two computers and two monitors?
The box contains the matrix, two USB data cables, one USB power cable, an IR remote (no AAA battery) and a manual; you must provide four HDMI cables and any USB-C cables for the computer ports.
