Jansicotek
Jansicotek OZK3-1 2×2 HDMI KVM Switch 4K 60 Hz USB 3.0

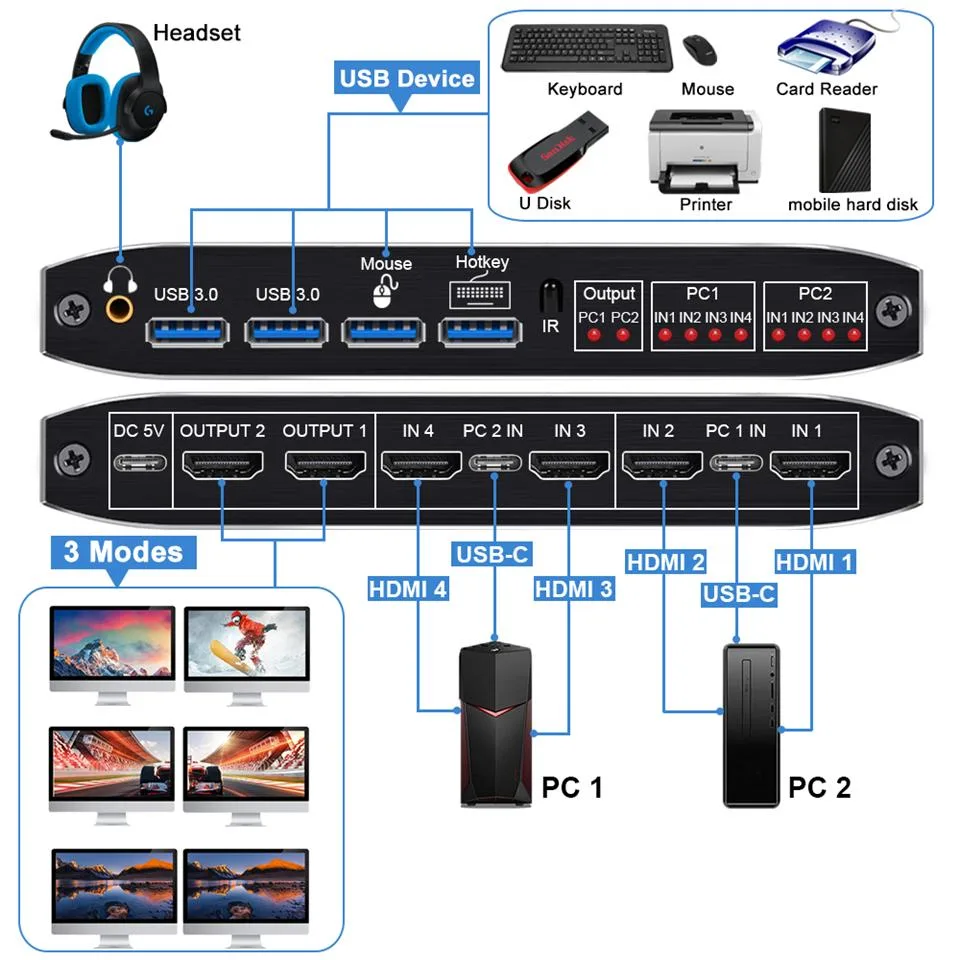

A 2×2 HDMI KVM matrix switches two computers across dual 4K 60 Hz monitors with USB 3.0 peripheral sharing and IR remote control
- TypeHDMI, USB
- PC ConnectorsHDMI and USB-C
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution3840 x 2160
- PC SelectionPush Buttons/Hot Keys
- Control two computers with one keyboard and mouse across dual monitors

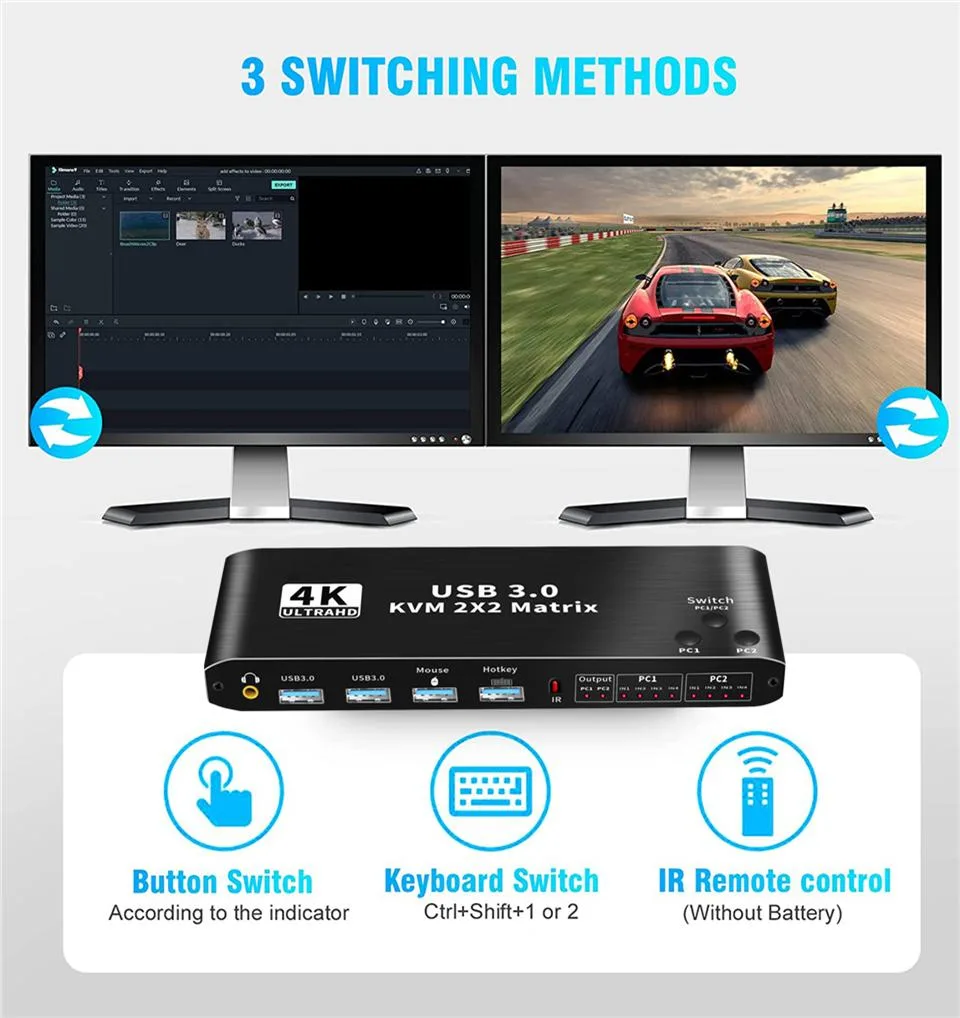

- Switch instantly via front buttons, hot keys or included IR remote
- View 4K at 60 Hz or 1080p at 144 Hz for crisp detail
- Share USB 3.0 peripherals such as drives or printers between both systems
- Compact 5.43 × 5.35 × 1.46 in unit fits tidy on any desk
Dual-computer matrix KVM
The Jansicotek OZK3-1 is a 2×2 HDMI matrix KVM switch that lets one keyboard, one mouse and two monitors control two computers or laptops. It targets desk setups where a user needs to move between two hosts without unplugging peripherals.
Video interface limits
The HDMI 2.0b link caps 4K output at 60 Hz while 1080p can reach 144 Hz. HDCP 2.3 compliance protects premium content, but the bandwidth ceiling means higher 4K refresh rates or 8K signals are not supported.
Connectors and daily use
Two USB 3.0 ports provide 5 Gbit/s bandwidth for flash drives, scanners or 3D printers. Front push-buttons, hot-key sequences and an IR remote give three ways to switch sources, and the compact 5.43×5.35×1.46 in chassis fits neatly on a crowded desk.
Highlights
- Control two computers with one keyboard and mouse across dual monitors
- Switch instantly via front buttons, hot keys or included IR remote
- View 4K at 60 Hz or 1080p at 144 Hz for crisp detail
- Share USB 3.0 peripherals such as drives or printers between both systems
- Compact 5.43 × 5.35 × 1.46 in unit fits tidy on any desk
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK3-1 |
| Model | OZK3-1 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| Audio Features | with Audio |
| USB Features | with USB support |
| Application | KVM Matrix allows control 2 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 2 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another. |
| Features | Support HDMI 2.0b HDCP 2.3 Compliant with DVI to HDMI,DP to HDMI Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Supports Extended / Mirror mode Supports Crisscross/Matrix Mode |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI KVM USB Matrix 2 x USB data cable 1 x USB power cable 1 x IR Remote Control(Without AAA battery) 1 x User Manual |
Questions about this item
Which configuration should I choose if I need to run two computers and two monitors from one keyboard and mouse?
This unit is a 2×2 matrix, so it connects two source devices to two displays and lets you switch or mirror them with a single keyboard and mouse set.
What does the 4K 60 Hz rating mean when I connect my PC and monitors?
It means the switch passes 3840×2160 at 60 Hz, and also handles 1080p at 120 Hz or 144 Hz for higher-refresh gaming monitors.
How does the HDMI 2.0b and HDCP 2.3 interface limit what I can display?
The HDMI 2.0b link carries up to 4K 60 Hz 8-bit colour with HDCP 2.3 protection, so protected 4K streams work but 4K above 60 Hz or 10-bit HDR would need a newer HDMI version.
