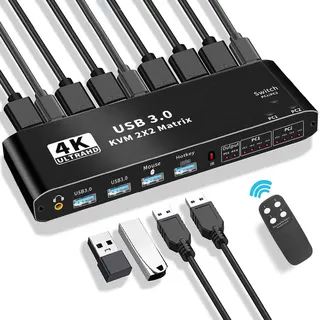

Jansicotek OZK3-1 2×2 HDMI 2.0b KVM Switch 4K@60Hz
A 2×2 HDMI 2.0b KVM matrix switches two computers across dual 4K 60 Hz monitors with USB 3.0 peripheral sharing and push-button or hot-key control
- TypeHDMI, USB
- PC ConnectorsHDMI and USB-C
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution3840 x 2160
- PC SelectionPush Buttons/Hot Keys
- Control two computers with one keyboard and mouse
- Dual-monitor 4K 60 Hz output for crisp visuals

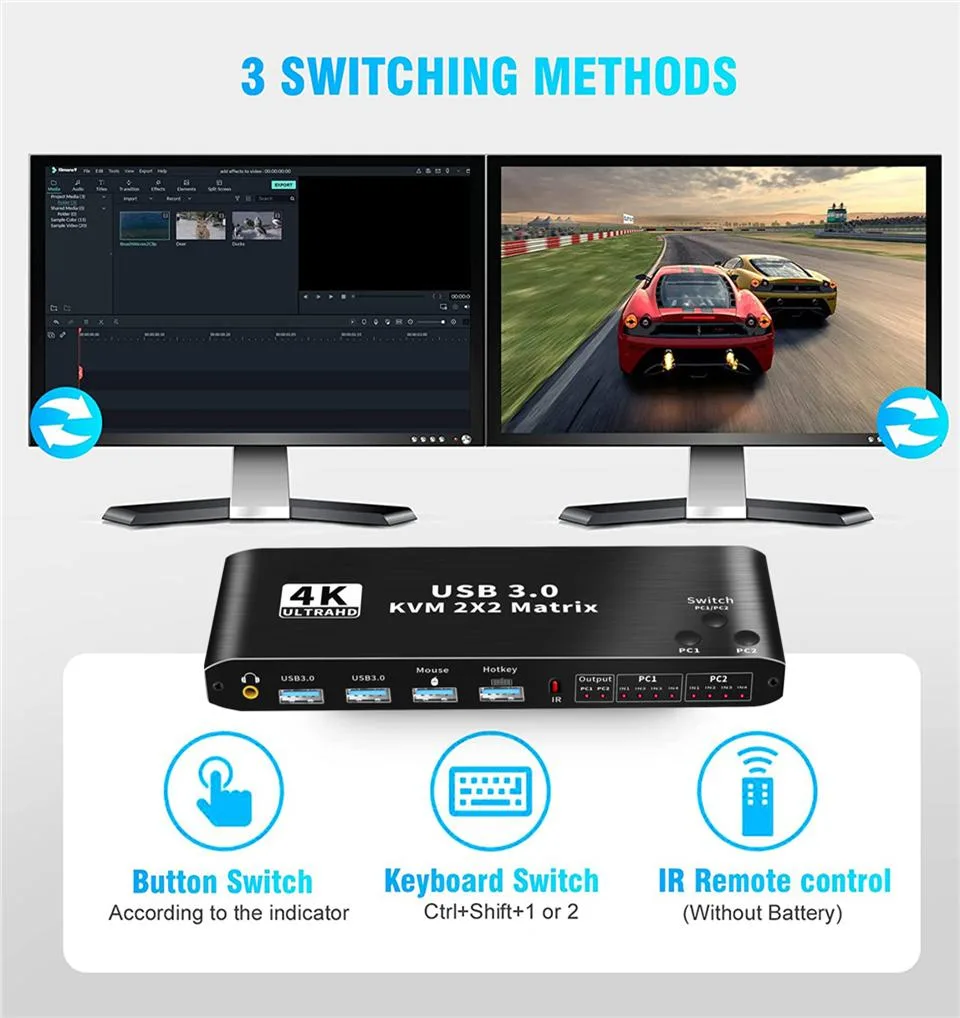

- Instant switching via push buttons or hotkeys
- USB 3.0 ports share peripherals like printers and drives
- Aluminium alloy shell resists interference and corrosion
Dual-monitor KVM matrix
The Jansicotek OZK3-1 is a 2×2 HDMI 2.0b KVM switch that lets two computers share one keyboard, one mouse and two displays. It suits home-office workers, developers and streamers who need simultaneous visibility across both machines. Hot-key and push-button switching keep the workflow fluid. Game consoles are also supported through the HDMI inputs.
Aluminium shell with USB 3.0 hub
An aluminium-alloy chassis provides shielding and heat dissipation without fans. Four HDMI 2.0 inputs, two USB-C ports and four USB 3.0 ports handle video, data and peripheral connections in a compact 176 × 51 × 21 mm footprint. Stereo audio output separates sound from the HDMI path. LED indicators show the active port at a glance.
Replaces separate switch and splitter
This unit consolidates a video matrix and a USB hub into one box, removing cable clutter from dual-PC desks. The jump is worthwhile when you need true 2-in-2-out matrix routing instead of simple mirroring. Buyers who only need single-mirrored output or who require more than two computer ports should look elsewhere.
Highlights
- Control two computers with one keyboard and mouse
- Dual-monitor 4K 60 Hz output for crisp visuals
- Instant switching via push buttons or hotkeys
- USB 3.0 ports share peripherals like printers and drives
- Aluminium alloy shell resists interference and corrosion
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZK3-1 |
| Model | OZK3-1 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| Audio Features | with Audio |
| USB Features | with USB support |
| Application | KVM Matrix allows control 2 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 2 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another. |
| Features | Support HDMI 2.0b HDCP 2.3 Compliant with DVI to HDMI,DP to HDMI Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Supports Extended / Mirror mode Supports Crisscross/Matrix Mode |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI KVM USB Matrix 2 x USB data cable 1 x USB power cable 1 x IR Remote Control(Without AAA battery) 1 x User Manual |
Questions about this item
What does the HDMI 2.0b interface on the OZK3-1 cap at for 4K resolution?
The HDMI 2.0b ports support 3840 x 2160 at 60 Hz and also handle 1080p at 144 Hz.
What are the physical dimensions and weight of the OZK3-1 unit?
It measures 176 x 51 x 21 mm (5.43 x 5.35 x 1.46 inches) and weighs 9.52 ounces with an aluminium-alloy shell.
How do you install the OZK3-1 and what step is commonly missed?

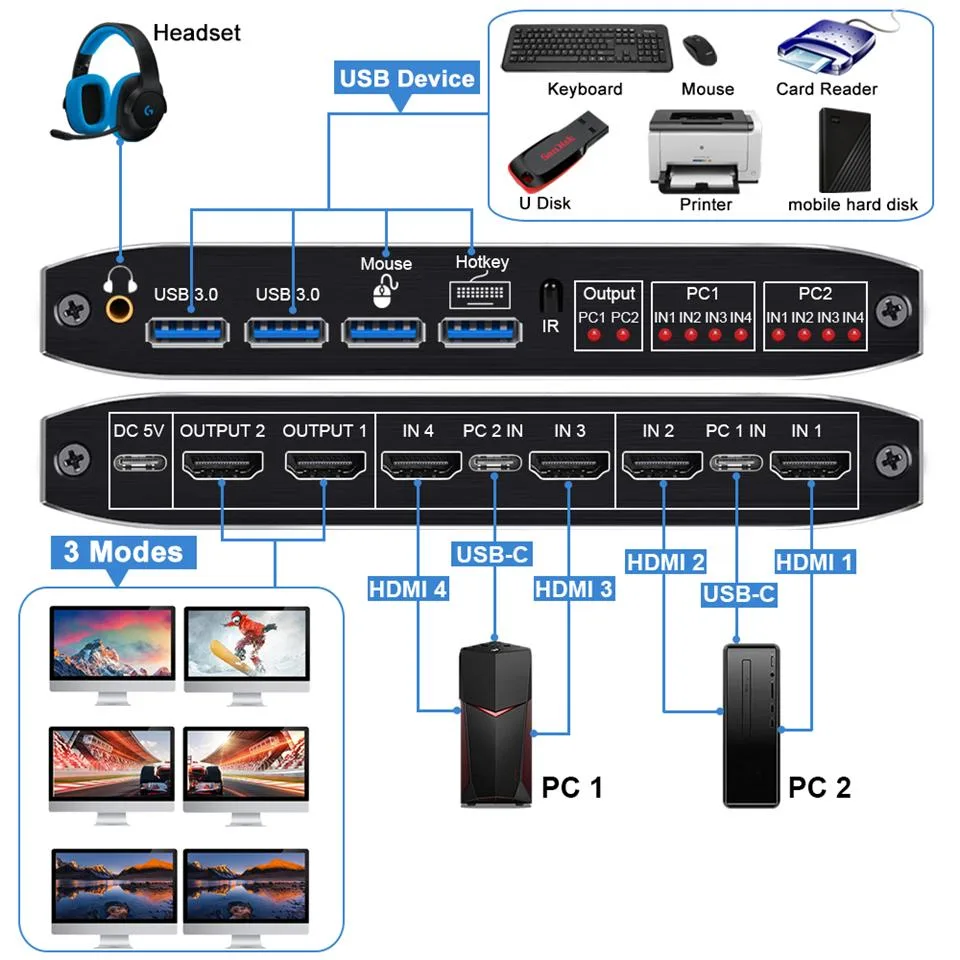

Connect each computer via its HDMI and USB-C cables, plug the two monitors into the HDMI outputs, attach the USB power cable, then press the front button or use hot-keys to switch; the step often missed is powering the unit with the supplied USB power cable.
