Jansicotek
Jansicotek OZJP3 4K 2x3 Video Wall Controller 6 HDMI Out professional video device
Splits one HDMI source across six screens in 14 layout modes with RS-232 and remote control
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out6 HDMI
- Specifications4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
- One HDMI input drives six HDMI displays simultaneously
- Fourteen preset layouts from 1×1 up to 6×1
- 4K 30 Hz output with 1080p 60 Hz input support
- SPDIF and 3.5 mm audio extraction ports included
- IR remote, front buttons and RS232 control options

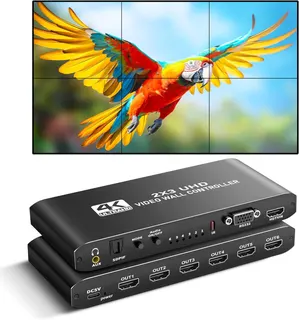

Jansicotek OZJP3 4K Video Wall Controller

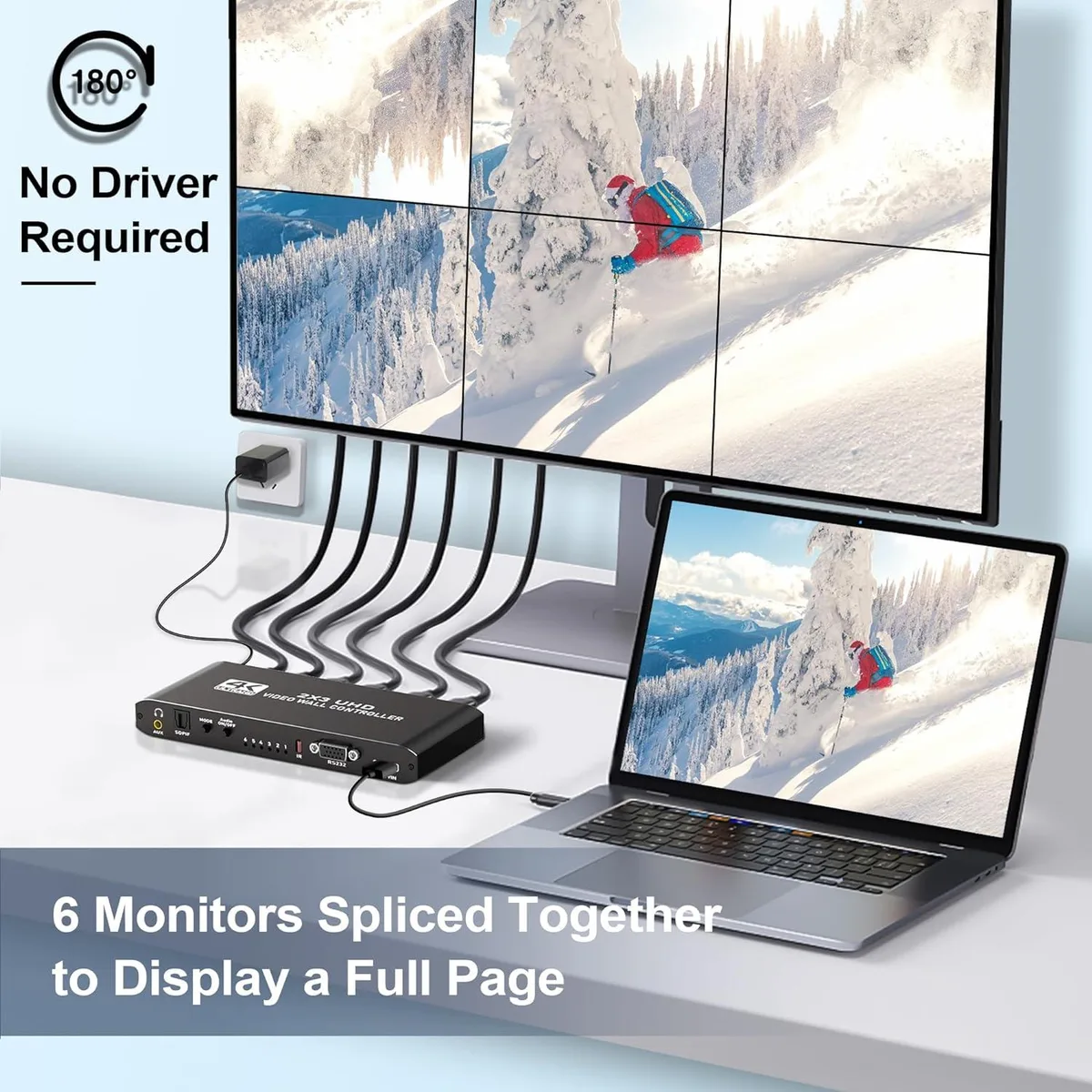

The Jansicotek OZJP3 is a professional 4K video wall controller that accepts one HDMI input and distributes it across six HDMI outputs. It enables the creation of large dynamic video walls using LCD splicing screens for digital signage, shopping mall exhibitions, video conferencing and security monitoring. The unit includes a remote control, RS232 interface, SPDIF and 3.5 mm audio extraction ports, and a 5 V 2.1 A power adapter.
Suited for installers building fixed 2x3

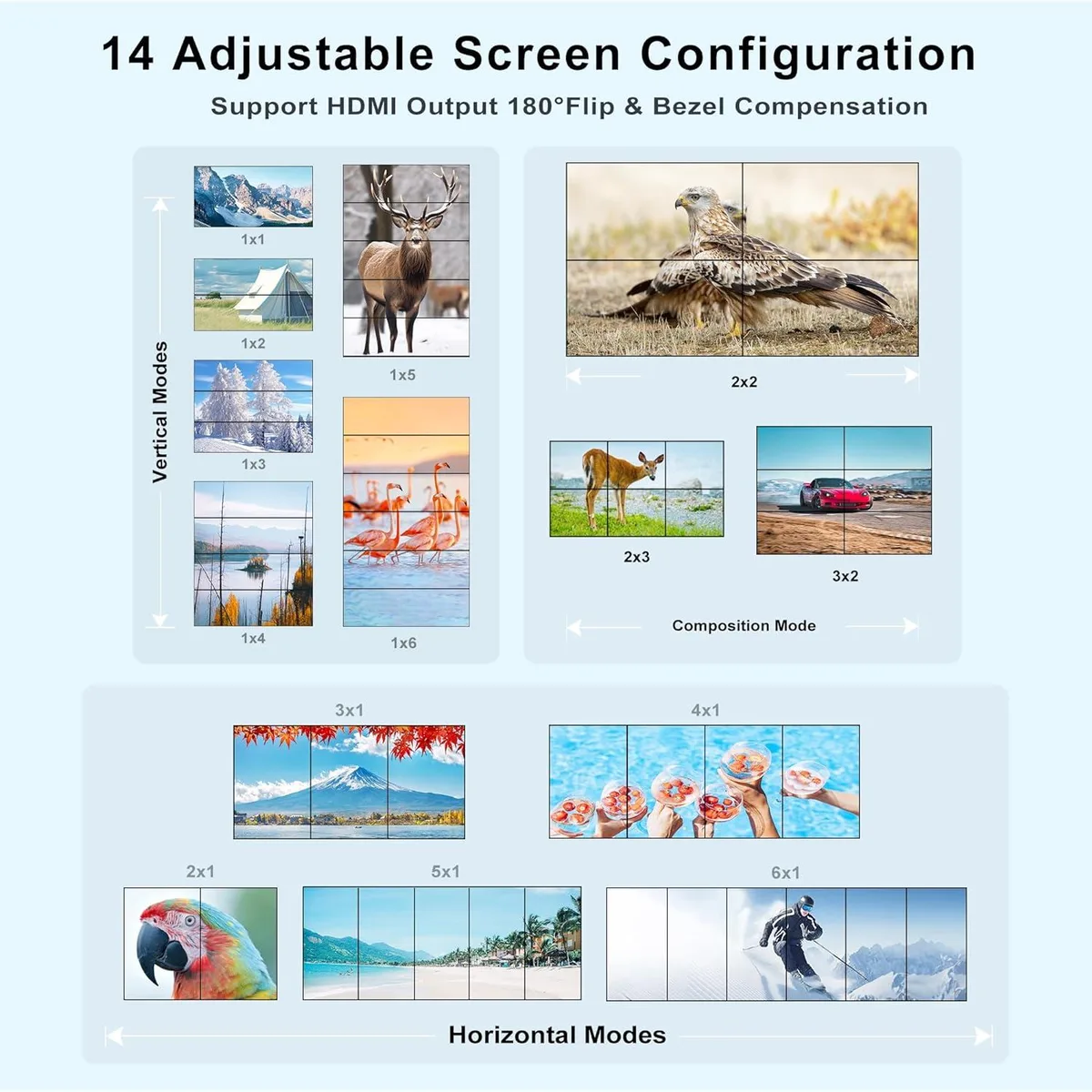

This controller suits integrators who need to split a single 4K source across up to six displays in 14 preset layouts such as 1x6, 2x3 or 3x2, switched by remote, front-panel button or RS232 command. It is not for buyers who require multiple independent input sources, HDMI 2.0 bandwidth for 4K at 60 Hz, or HDCP 2.2 protected content playback.
Sustained operation at 4K 30 Hz output
Under continuous load the processor maintains stable 4K 30 Hz output across all six HDMI ports with RGB444 24-bit colour and embedded audio extraction via SPDIF and 3.5 mm jack. The fanless metal chassis relies on passive cooling, so adequate ventilation in the rack or cabinet is necessary to avoid thermal throttling during 24/7 signage or monitoring duty cycles.
Highlights
- One HDMI input drives six HDMI displays simultaneously
- Fourteen preset layouts from 1×1 up to 6×1
- 4K 30 Hz output with 1080p 60 Hz input support
- SPDIF and 3.5 mm audio extraction ports included
- IR remote, front buttons and RS232 control options
Specifications
| Brand | Jansicotek |
|---|---|
| Model | OZJP3 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 6 HDMI |
| Specifications | 4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port This HDMI video wall controller can distribute one HDMI input signal device to 6 HDMI outputs display simultaneously, via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience. It is the ideal choice for shopping mall video exhibition, security monitor and other large screen splicing display. |
| Package Contents | 3x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1. |
Questions about this item
What source device do I need to connect to the single HDMI input?
Any device with an HDMI 1.4 output that can send 1920x1080 at 25, 30, 50 or 60 Hz or 3840x2160 at 24 or 30 Hz will work.
Will my existing 1080p monitors work with the six HDMI outputs?
Yes, each output can drive a 1920x1080 display at up to 60 Hz; the controller scales the 4K input down to 1080p per screen in the chosen layout.
How do I confirm the 2x3 splicing mode is active after powering on?
Press the MODE button until the on-screen indicator shows 2x3, or select 2x3 with the IR remote; the six connected displays will then show a single image split across the 2-by-3 grid.
