Jansicotek
Jansicotek OZJP2 3x3 Video Wall Processor 1 HDMI In 9 HDMI Out 1080P60Hz Output 4K30Hz Input RS232 13 Modes
Splits one HDMI source across nine 1080P60 displays in 13 layout modes with RS232 and remote control
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out9 HDMI
- Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
- Drives nine screens from one source with 1 HDMI in and 9 HDMI out
- Accepts 4K 30 Hz input and delivers 1080P 60 Hz output across all displays
- Choose from 13 layout modes including 3x3, 2x2 and 1x4 configurations
- Plug-and-play operation with RS-232 and infrared remote control included
- Transmits HDMI signal up to 100 feet with active cooling for stable performance

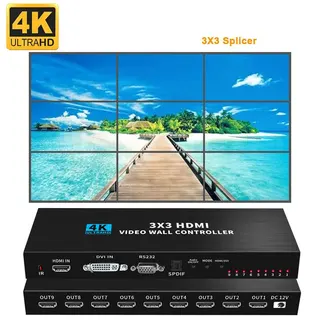

3×3 Video Wall Processor

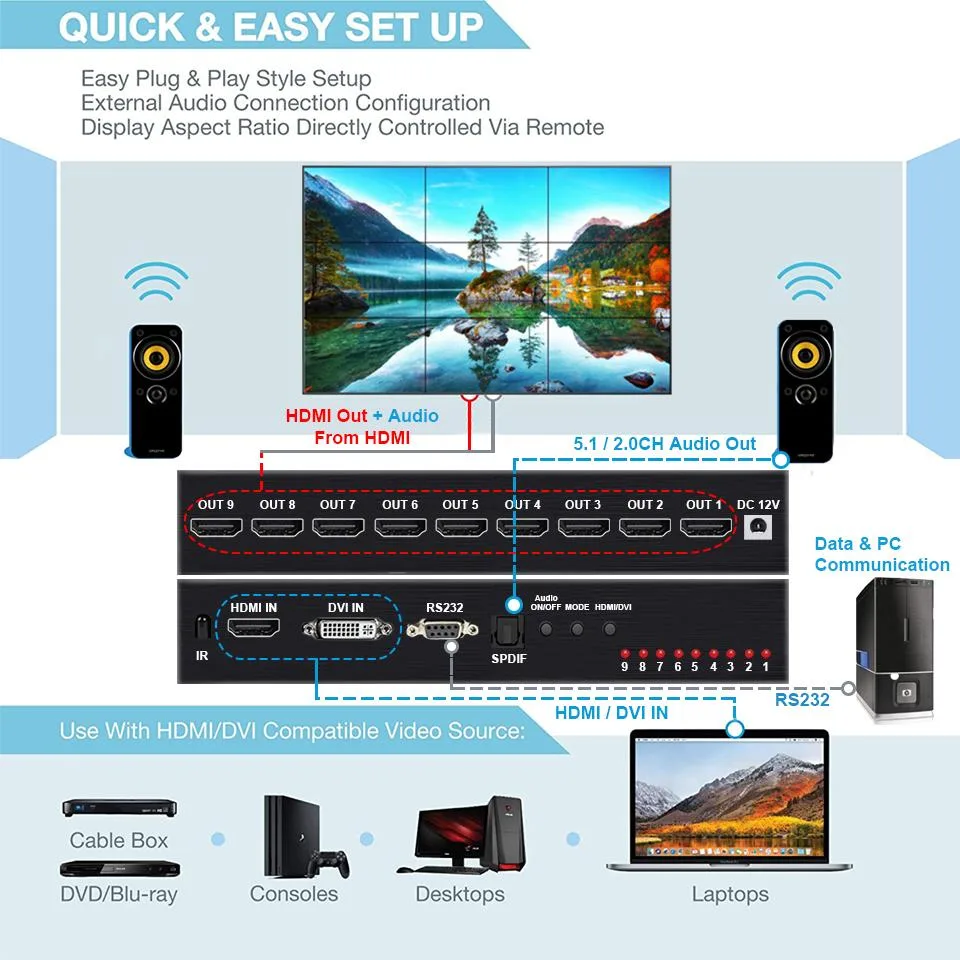

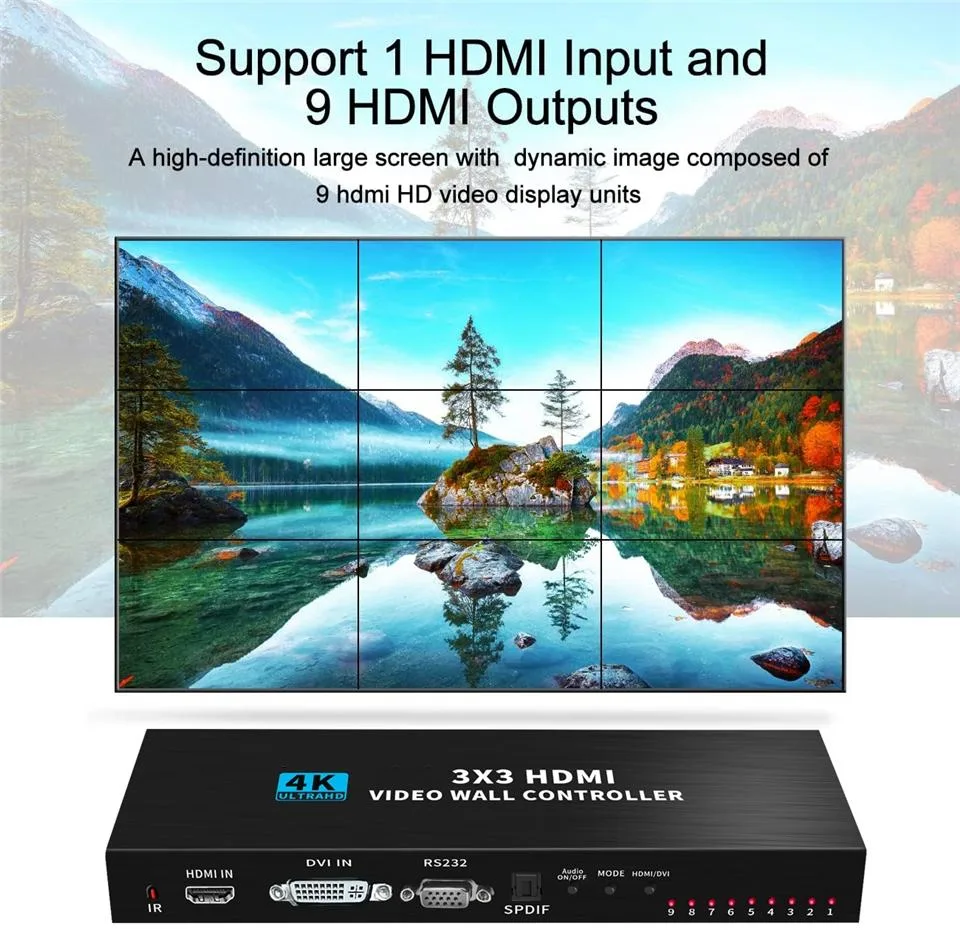

The Jansicotek OZJP2 splits a single HDMI or DVI source across nine displays in a 3×3 grid. It accepts 4K input at 30 Hz and delivers 1080p output at 60 Hz on each of the nine HDMI ports. Plug-and-play operation requires no driver installation, making it suitable for control rooms, digital signage and multi-screen presentations.
13 Display Modes for Flexible Layouts
The unit supports thirteen preset configurations including 1×1, 1×2, 1×3, 1×4, 2×1, 2×2, 2×3, 2×4, 3×1, 3×2, 3×3, 4×1 and 4×2. Users who need more than nine outputs, higher output resolutions or audio embedded in the HDMI stream should consider alternative processors. Audio is provided separately via an optical SPDIF connection.
Sustained Operation with Active Cooling
Built-in vents and fans maintain stable temperatures during continuous 24/7 use, preventing thermal throttling over long sessions. The HDMI 1.4 and HDCP 1.4 compliant input transmits signals up to 100 feet without quality loss when used with fully wired, shielded cables. RS232 and an infrared remote allow integration into automated control systems.
Highlights
- Drives nine screens from one source with 1 HDMI in and 9 HDMI out
- Accepts 4K 30 Hz input and delivers 1080P 60 Hz output across all displays
- Choose from 13 layout modes including 3x3, 2x2 and 1x4 configurations
- Plug-and-play operation with RS-232 and infrared remote control included
- Transmits HDMI signal up to 100 feet with active cooling for stable performance
Specifications
| Brand | Jansicotek |
|---|---|
| Model | OZJP2 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 9 HDMI |
| Specifications | 3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232 HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control . Support 1 HDMI-Compatible input Support input HDMI-Compatible / DVI Support 9 HDMI-Compatible outputs Support 1 x Optical SPDIF audio with 5.1CH audio Support input 4K 30Hz,1920x1080P,24/30/5 |
| Package Contents | 3x3 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1 |
Questions about this item
What source devices can I connect to the single HDMI input?
The HDMI input accepts HDMI 1.4 and HDCP 1.4 signals at 1920x1080P 60Hz or 3840x2160P 30Hz.
Can I keep using my existing 1080P monitors with this processor?
Each of the nine HDMI outputs delivers 1920x1080P at 60Hz, so existing 1080P displays work directly.
How do I verify the video wall is displaying correctly after setup?
Use the remote or RS232 to cycle through the 13 display modes and confirm each screen shows its assigned 1080P60Hz segment.
