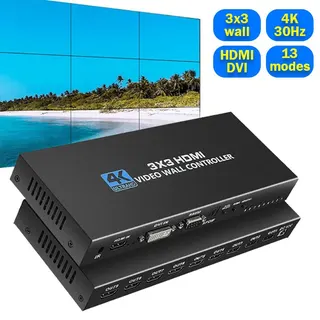

Compact black metal box with nine HDMI outputs and one input, remote included

Jansicotek

Jansicotek OZJP2 3x3 Video Wall Controller 9 HDMI Out

SKU CH-9MRW-X3SS4

Splits one 4K HDMI or DVI source across nine 1080p displays in 13 layouts with RS-232 and remote control

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out9 HDMI
  • Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
  • One 4K 30 Hz input drives nine 1080P 60 Hz outputs for large video walls
  • Thirteen preset display modes cover 3x3, 2x3, 2x4 and other splicing layouts
  • RS232 and infrared remote give full control without leaving the seat
  • Optical 5.1-channel audio output sends lossless sound to external speakers or amplifiers

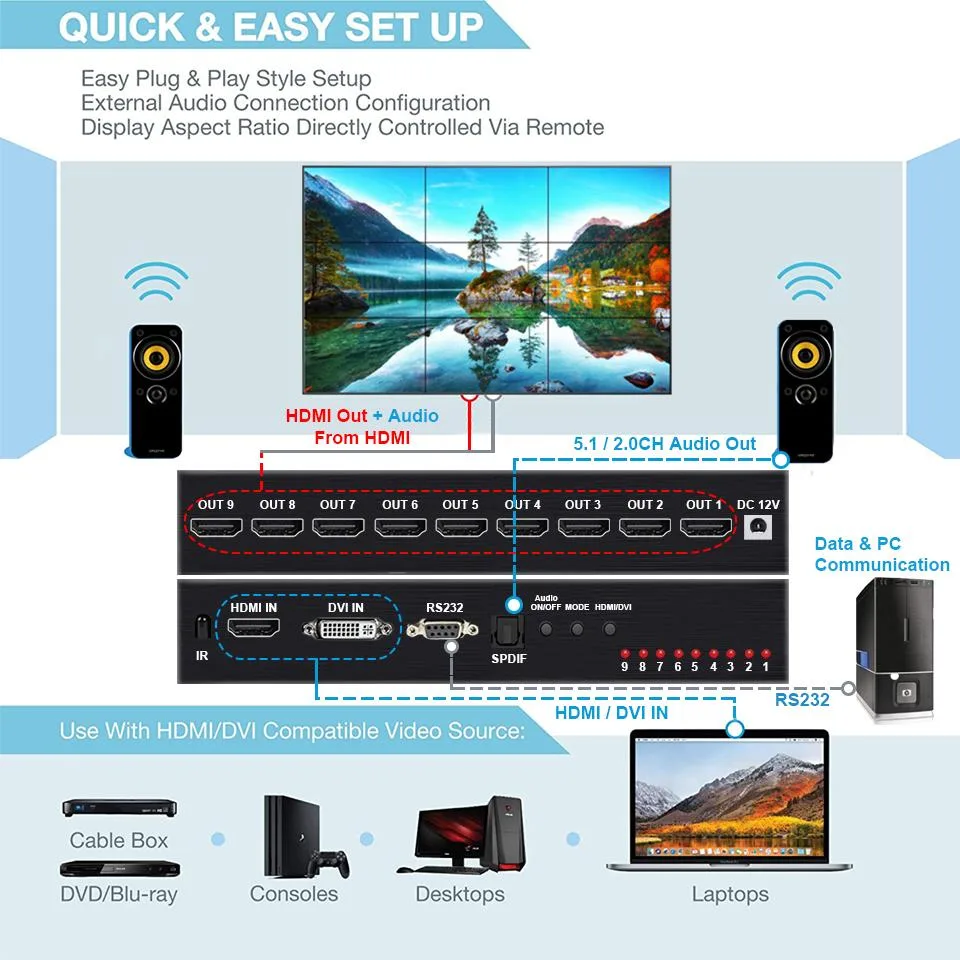

  • Plug-and-play setup with 180-degree rotation needs no software or app configuration

Nine-Screen Video Wall Controller

The Jansicotek OZJP2 splits a single HDMI or DVI source into nine independent 1080P@60Hz outputs for a 3x3 display array. It accepts 4K@30Hz input and includes RS232 control plus an infrared remote for configuration without software. The unit is aimed at installers building digital signage walls in hospitality, education, retail or corporate lobbies.

Upgrade From Single-Display Playback

Replaces a basic media player or PC output when content must span nine screens as one canvas. The jump is worth it when a venue needs bezel-corrected splicing across multiple LCD panels and centralised source switching. It does not suit buyers who need more than one input source or who require 4K resolution on each individual output panel.

Sustained Operation Behaviour

Continuous 1080P@60Hz output across all nine ports is maintained with HDCP 1.4 compliance and 5.1-channel optical audio pass-through. The 5V/2.1A power supply and fanless chassis support 24/7 duty cycles in climate-controlled racks. No thermal throttling or frame-drop behaviour is specified beyond the rated output format.

Highlights

  • One 4K 30 Hz input drives nine 1080P 60 Hz outputs for large video walls
  • Thirteen preset display modes cover 3x3, 2x3, 2x4 and other splicing layouts
  • RS232 and infrared remote give full control without leaving the seat
  • Optical 5.1-channel audio output sends lossless sound to external speakers or amplifiers
  • Plug-and-play setup with 180-degree rotation needs no software or app configuration

Specifications

BrandJansicotek
ModelOZJP2
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out9 HDMI
Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232
HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control .

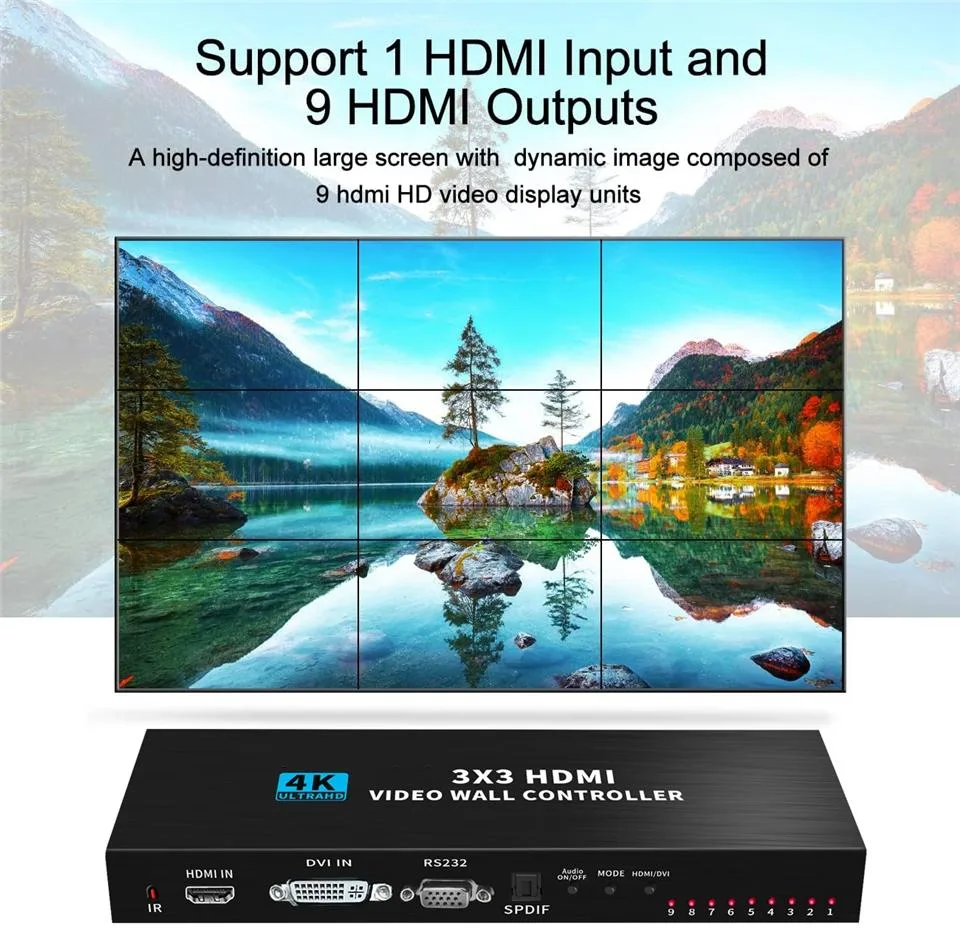

Support 1 HDMI-Compatible input
Support input HDMI-Compatible / DVI
Support 9 HDMI-Compatible outputs
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/5
Package Contents3x3 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

What rack or shelf space does the Jansicotek OZJP2 controller need?

The unit is a compact splicing box designed to sit on a shelf or equipment rack; allow room for nine HDMI cables, one HDMI or DVI input cable, the optical audio lead, the RS-232 link and the 5 V / 2.1 A power adapter.

Which step do installers most often miss when wiring the 3×3 wall?

Using fully-wired 19-pin shielded HDMI cables for every link; the supplier notes that most sync problems come from cables that do not carry all pins.

What ongoing upkeep does the 9-output video wall processor require?

No scheduled maintenance is defined; long-term care consists of keeping ventilation clear, checking that the 5 V / 2.1 A supply and all HDMI connections stay seated, and replacing the remote-control batteries when they run down.
