Rectangular black metal box with HDMI ports and remote

Jansicotek

Jansicotek OZJP2 3x3 Video Wall Controller 1 in 9 out 4K30Hz professional video device

SKU CH-XZ8E-6VHTM

Routes a single 4K30Hz HDMI source to nine 720p60Hz displays in 13 splicing layouts, controlled by front panel or IR remote

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out9 HDMI
  • Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
  • One source drives nine screens in a 3×3 wall
  • Thirteen layout modes cover 1×1 up to 4×2
  • 4K 30 Hz input scales to 1080p 60 Hz per display
  • RS-232 and IR remote give local or distant control
  • SPDIF optical audio carries sound alongside the video

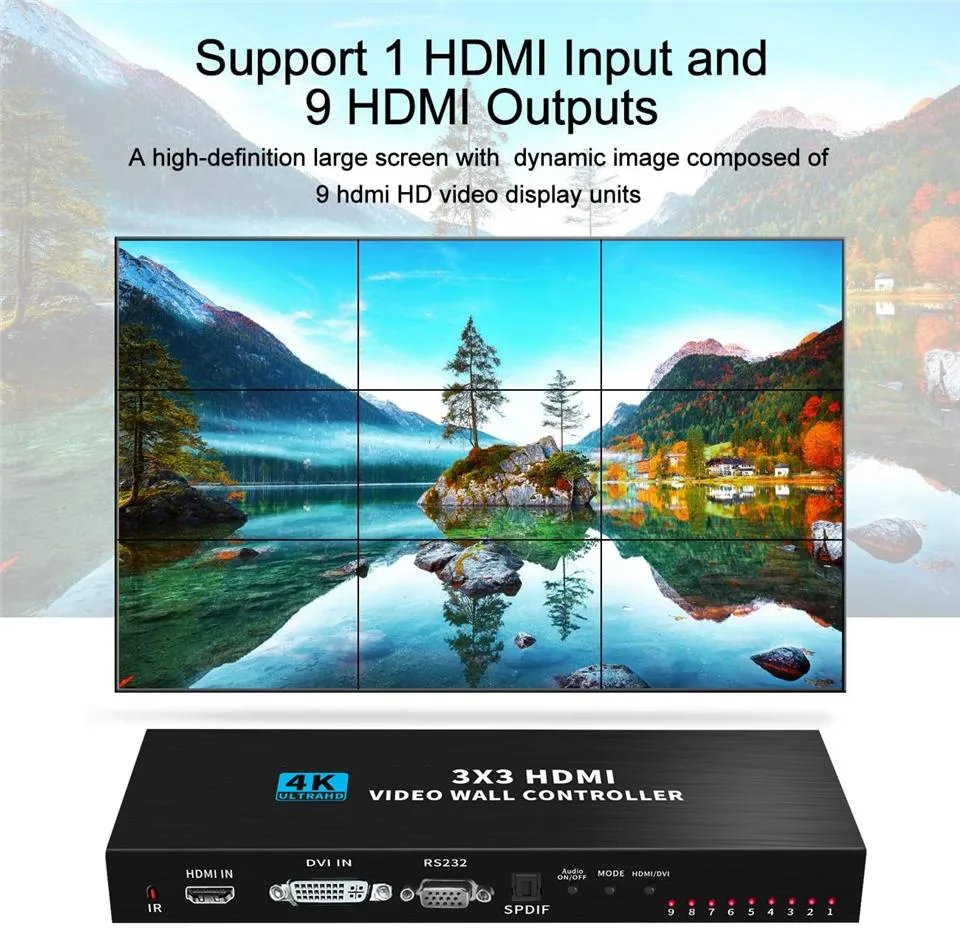

3x3 Video Wall Controller

The Jansicotek OZJP2 splits one HDMI or DVI source into nine HDMI outputs for a 3x3 display array. It handles input resolutions up to 3840x2160 at 30Hz and delivers 1280x720 at 60Hz on each screen. The unit suits control rooms, digital signage and conference walls that need a single image across multiple panels. Thirteen splicing modes cover layouts from 1x1 through 4x2.

Installation Notes

Connect the source with a fully wired 19-pin HDMI cable and link all nine displays before powering the 5V 2.1A adapter. Switch between layouts using the front panel buttons or the infrared remote. Most sync problems trace back to cables that lack full pin wiring or adequate shielding. The box includes the controller, remote without battery, power supply and a user manual.

Sustained Operation

Output resolution is fixed at 1280x720 60Hz regardless of the input frame rate, so the scaler runs continuously at a steady load. HDMI 1.4 and HDCP 1.4 compliance are maintained throughout extended sessions. RS232 and optical SPDIF audio paths remain active for integration with automation and sound systems. The controller is not for users who need per-output 4K resolution or higher than 60Hz refresh on the displays.

Highlights

  • One source drives nine screens in a 3×3 wall
  • Thirteen layout modes cover 1×1 up to 4×2
  • 4K 30 Hz input scales to 1080p 60 Hz per display
  • RS-232 and IR remote give local or distant control
  • SPDIF optical audio carries sound alongside the video

Specifications

BrandJansicotek
ModelOZJP2
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out9 HDMI
Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232
HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control .
Support 1 HDMI-Compatible input
Support input HDMI-Compatible / DVI
Support 9 HDMI-Compatible outputs
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/5
Package Contents3x3 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

How do I confirm the OZJP2 is outputting 1080P at 60Hz to all nine screens after setup?

Use the IR remote or front-panel buttons to cycle through the 13 splicing modes; each display should show a 1920x1080P 60Hz signal with no dropouts.

What accessories ship with the OZJP2 and which items must I source myself?

The box contains the controller, IR remote (no battery), 5V 2.1A power adapter and user manual; you must supply nine HDMI cables with all 19 pins wired and an optical cable if you want SPDIF audio.

Which splicing mode should I choose for a 3x3 wall versus a 2x4 layout?

Select 3x3 mode for a nine-screen square or 2x4 mode for an eight-screen rectangle; both are among the 13 preset modes switched via remote or panel buttons.
