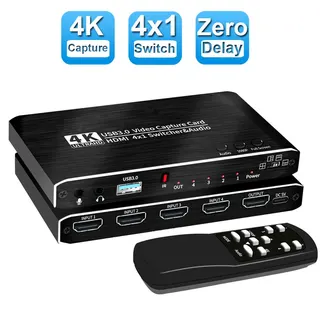

Black rectangular capture card with four HDMI inputs, one HDMI output, USB 3.0 port, mic jack and audio out, LED indicator

Jansicotek

Jansicotek OZC7 4x1 HDMI Capture Card 4K@30Hz

SKU CH-N35Y-3CXMQ

Captures four HDMI sources at 4K 30 Hz with seamless switching and passes 1080p 60 Hz over USB 3.0

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture four HDMI sources at once with 4K@30Hz pass-through
  • Record or stream at 1080p 60fps over USB 3.0
  • Switch instantly between five view modes via IR remote
  • Mix microphone audio with HDMI sound on a single output
  • Driver-free operation works with any third-party capture software

What it is

The Jansicotek OZC7 is a 4x1 HDMI capture card that accepts four HDMI sources and a microphone, then delivers video over USB 3.0 at up to 1080@60fps while passing 4K@30Hz through its HDMI loop-out. It is built for streamers, educators and conference hosts who need to switch between several cameras or consoles without installing drivers.

Who it suits and who should look elsewhere

It suits creators who record or stream from multiple HDMI devices such as game consoles, cameras or a Nintendo Switch and want seamless switching via an IR remote. It is not for users who need 4K capture over USB, nor for anyone who requires more than four HDMI inputs or a dedicated line-level audio input beyond the single microphone jack.

The deciding specification

USB 3.0 capture tops out at 1080@60fps while the HDMI loop-out passes 4K@30Hz. If your workflow demands 4K recording into the computer, this card will not meet that need.

Highlights

  • Capture four HDMI sources at once with 4K@30Hz pass-through
  • Record or stream at 1080p 60fps over USB 3.0
  • Switch instantly between five view modes via IR remote
  • Mix microphone audio with HDMI sound on a single output
  • Driver-free operation works with any third-party capture software

Specifications

BrandJansicotek
SeriesOZC7
ModelOZC7
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes

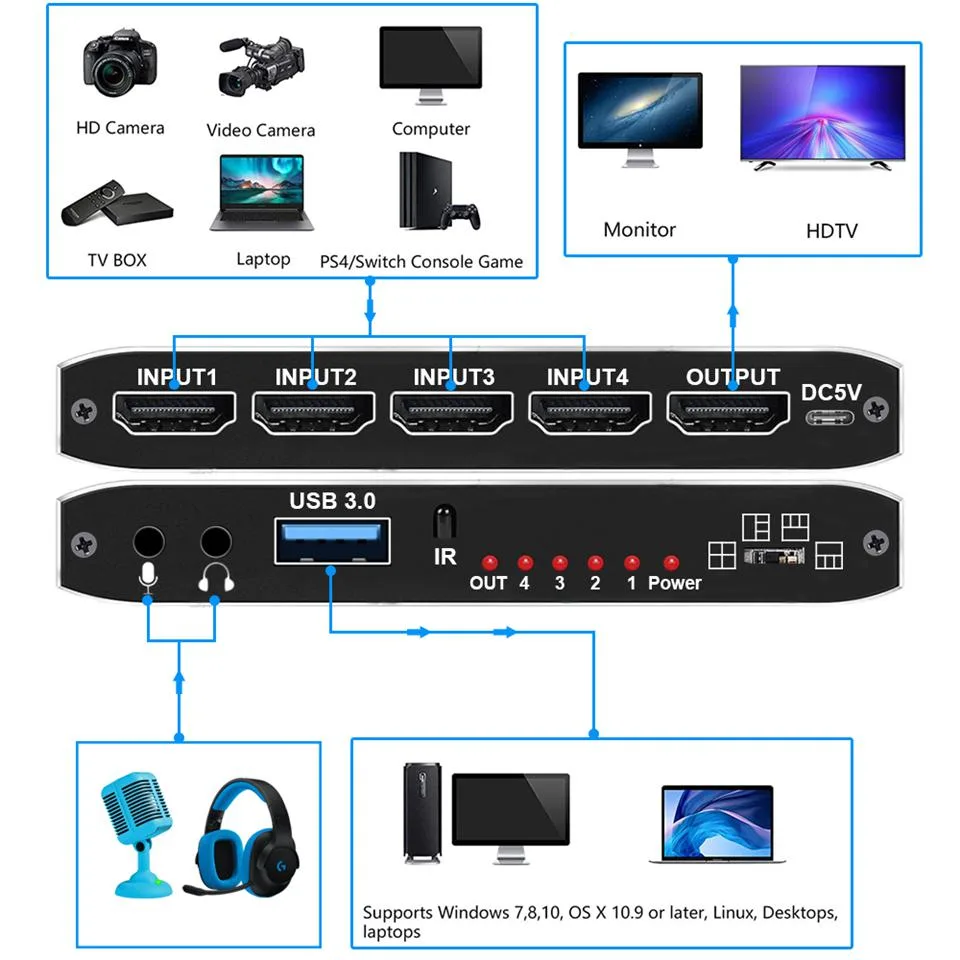

SpecificationInput: HDMI Port x 4, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@30Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24,MJPEG
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Supp

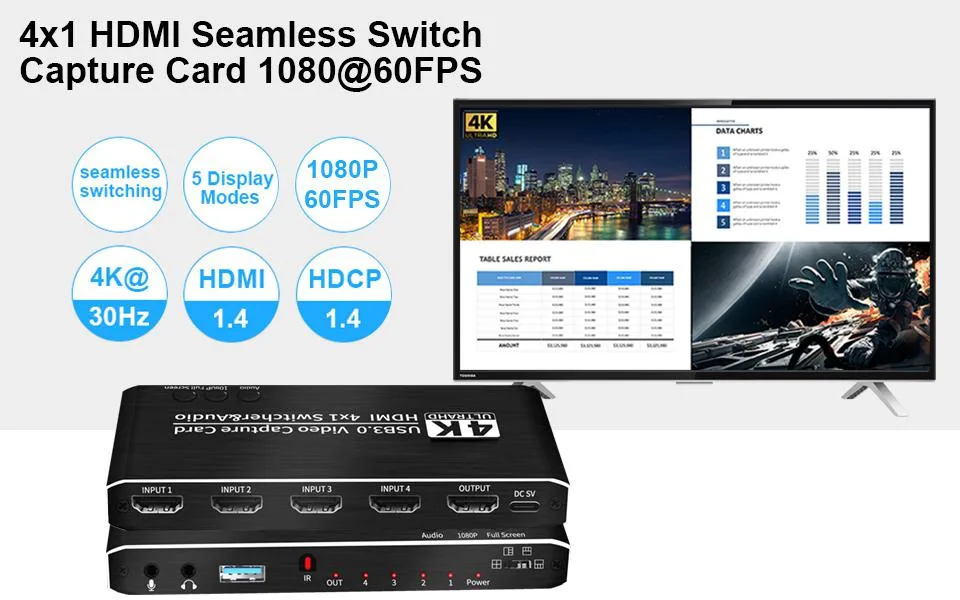

Feature4K Ultra Game Capture Card: The 4x1 video capture card supports 4K@30fps pass through for HDMI 1.4 input and output. The USB 3.0 output is maximum to 1080@60fps, the max HDMI input and output is up 4K@30Hz. four HDMI input interfaces,which can be inserted in to HDMI video sources individually or at the same time,without mutual influence,video capture is very smooth and no delay.
4 IN 1 Seamless HDMI Switch: 4 Port Video Capture Card/ HDMI Switch allows up to 4input devices to be connected, and it is equipped with a wireless remote control to seamlessly switch, avoiding continuous unp
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4 port HDMI Switch Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

What cables and accessories come in the box with the Jansicotek OZC7?

The package includes the 4-port HDMI switch capture card, a USB 3.0 to USB 3.0 cable, a USB 3.0 to Type-C cable, an IR remote control, and a user manual.

Which resolution and frame-rate combination should I pick for recording gameplay on a PC?

The USB 3.0 output captures at up to 1080p 60 fps, while the HDMI loop-out passes 4K 30 Hz to a display; choose 1080p 60 for smooth recording or 4K 30 for monitoring.

What does the 4K 30 Hz headline figure mean when I connect this card to my computer?

The HDMI inputs and loop-out support 4K at 30 Hz, but the USB 3.0 capture stream tops out at 1080p 60 fps, so your recording software will receive 1080p even though the source is 4K.
