Black rectangular capture box with four HDMI inputs, one HDMI output, USB 3.0 port, mic jack, audio out, LED indicator and IR remote

Jansicotek

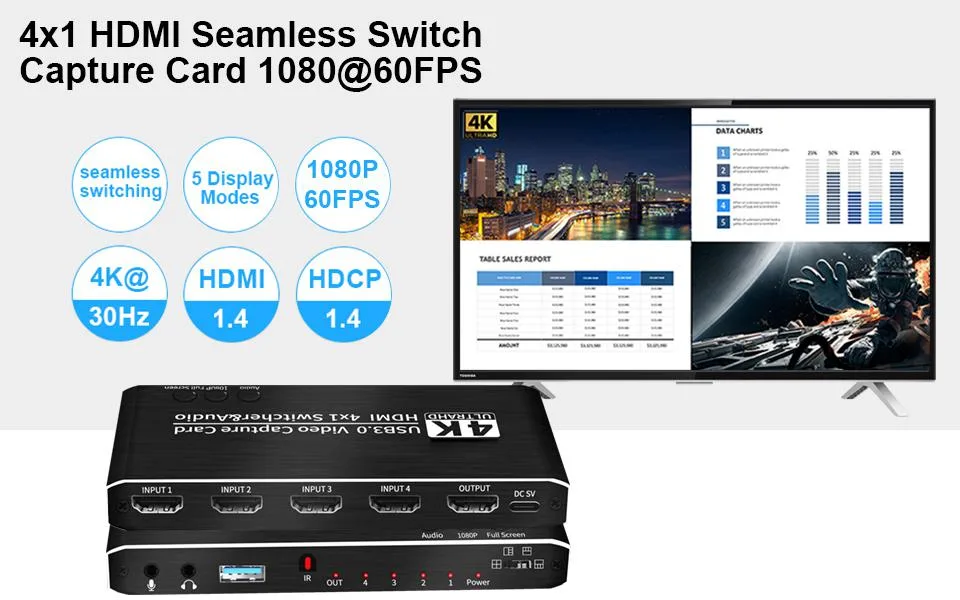

Jansicotek OZC7 4x1 HDMI Capture Card 4K 30fps video capturing device

SKU CH-CB05-9CGXN

Four HDMI sources switch into one USB 3.0 capture stream at 1080p60 while passing 4K30 through the loop-out

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Seamless 4K@30Hz pass-through via HDMI 1.4 with four inputs
  • USB 3.0 capture up to 1080@60fps for streaming and recording
  • Built-in mic port plus dedicated audio output for live commentary
  • Five view modes switched instantly by included IR remote
  • Compact 4.45 x 2.2 x .71 inch design weighing .352 ounces

Jansicotek OZC7 4x1 HDMI Capture

The Jansicotek OZC7 is a 4x1 HDMI capture card built for streamers, educators and professionals who need to switch between four HDMI sources. It accepts 4K at 30 Hz on every input and passes that signal through its HDMI loop-out while sending a 1080p 60 fps stream over USB 3.0 to a PC or Mac. A built-in microphone input and analogue audio output round out the I/O for live production.

Build integration: USB 3.0 host and HDMI displays

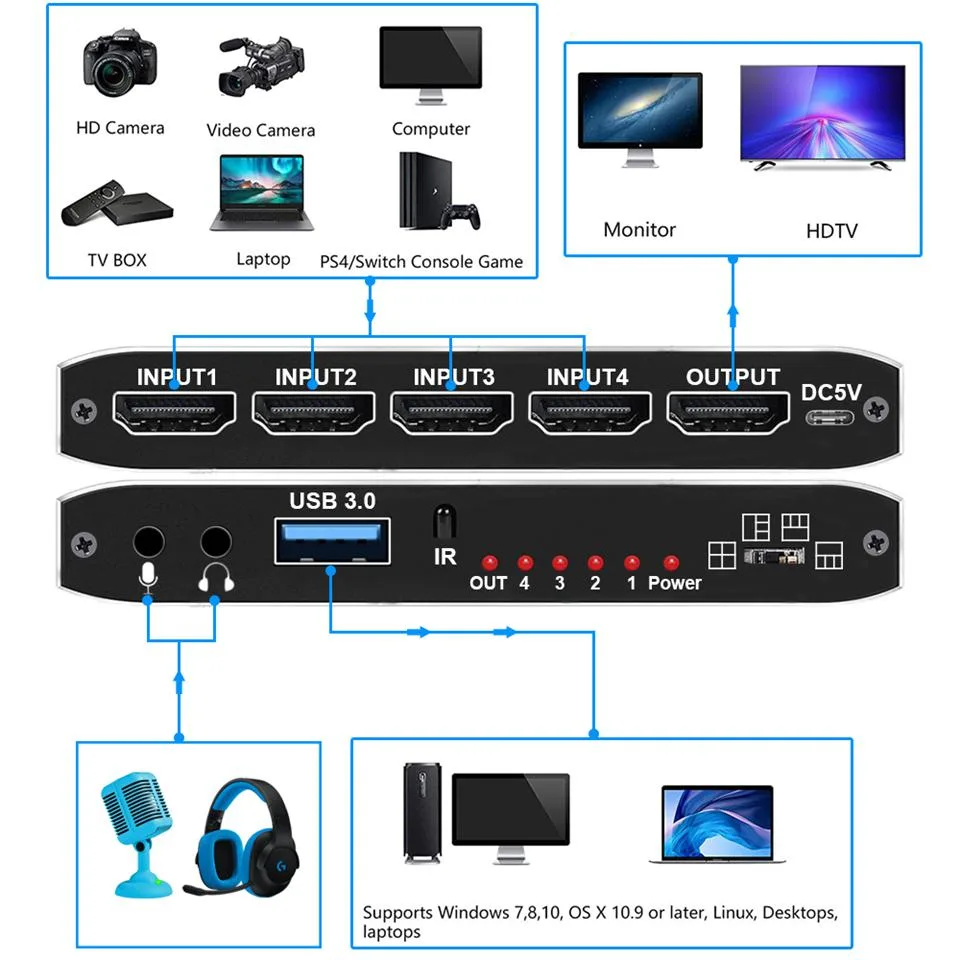

The card connects to the host via a single USB 3.0 port using the supplied Type-A or Type-C cable and requires no driver installation. Four HDMI inputs feed the internal seamless switcher, while one HDMI output mirrors the selected source to a local monitor or projector. The microphone jack and line-level audio output let you embed commentary or extract programme sound without extra adapters.

Upgrade path: from single-input capture

This unit replaces a basic one-input capture dongle when the workflow demands instant switching between multiple consoles, cameras or computers. The jump is worth it when you need five view modes, IR remote control and zero-latency HDMI pass-through at 4K 30 Hz. It does not serve users who require 4K 60 Hz recording or more than four simultaneous HDMI sources.

Highlights

  • Seamless 4K@30Hz pass-through via HDMI 1.4 with four inputs
  • USB 3.0 capture up to 1080@60fps for streaming and recording
  • Built-in mic port plus dedicated audio output for live commentary
  • Five view modes switched instantly by included IR remote
  • Compact 4.45 x 2.2 x .71 inch design weighing .352 ounces

Specifications

BrandJansicotek
SeriesOZC7
ModelOZC7
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes
SpecificationInput: HDMI Port x 4, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@30Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24,MJPEG
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Supp
Feature4K Ultra Game Capture Card: The 4x1 video capture card supports 4K@30fps pass through for HDMI 1.4 input and output. The USB 3.0 output is maximum to 1080@60fps, the max HDMI input and output is up 4K@30Hz. four HDMI input interfaces,which can be inserted in to HDMI video sources individually or at the same time,without mutual influence,video capture is very smooth and no delay.
4 IN 1 Seamless HDMI Switch: 4 Port Video Capture Card/ HDMI Switch allows up to 4input devices to be connected, and it is equipped with a wireless remote control to seamlessly switch, avoiding continuous unp
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4 port HDMI Switch Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

How long can the Jansicotek OZC7 run continuously before the USB 3.0 interface becomes the throughput limit?

The USB 3.0 output caps at 1080p60, so sustained capture is limited to that resolution and frame rate regardless of the 4K30 HDMI inputs.

Does the capture card generate noticeable heat or fan noise during all-day streaming sessions?

The unit has no fan and draws power from USB 3.0; it runs warm but stays silent during extended use.

Which cables and host ports must I already have to connect the OZC7 to a PC and four HDMI sources?

You need four HDMI cables for the inputs, one HDMI cable for the loop-out, and a free USB 3.0 Type-A or Type-C port on the computer; both USB cables are included.
