Small black rectangular capture box with three HDMI inputs, one USB 3.0 port, HDMI loop-out, microphone and audio jacks

Jansicotek

Jansicotek OZC6 3×1 HDMI 4K@60Hz video capturing device

SKU CH-H643-XVFWD

Captures three HDMI sources at 4K 60 Hz with USB 3.0 output up to 4K 30 Hz, adds microphone and audio I/O plus HDMI loop-out, and includes an IR remote

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture 4K at 60 Hz pass-through for smooth console play
  • Record at 4K 30 fps over USB 3.0 for high-quality streams
  • Switch three HDMI sources with IR remote for simple setup
  • Add live commentary via mic input and monitor through audio out
  • Compact 4.45 × 2.2 × .71 inch design fits any bag

Capture card for consoles and cameras

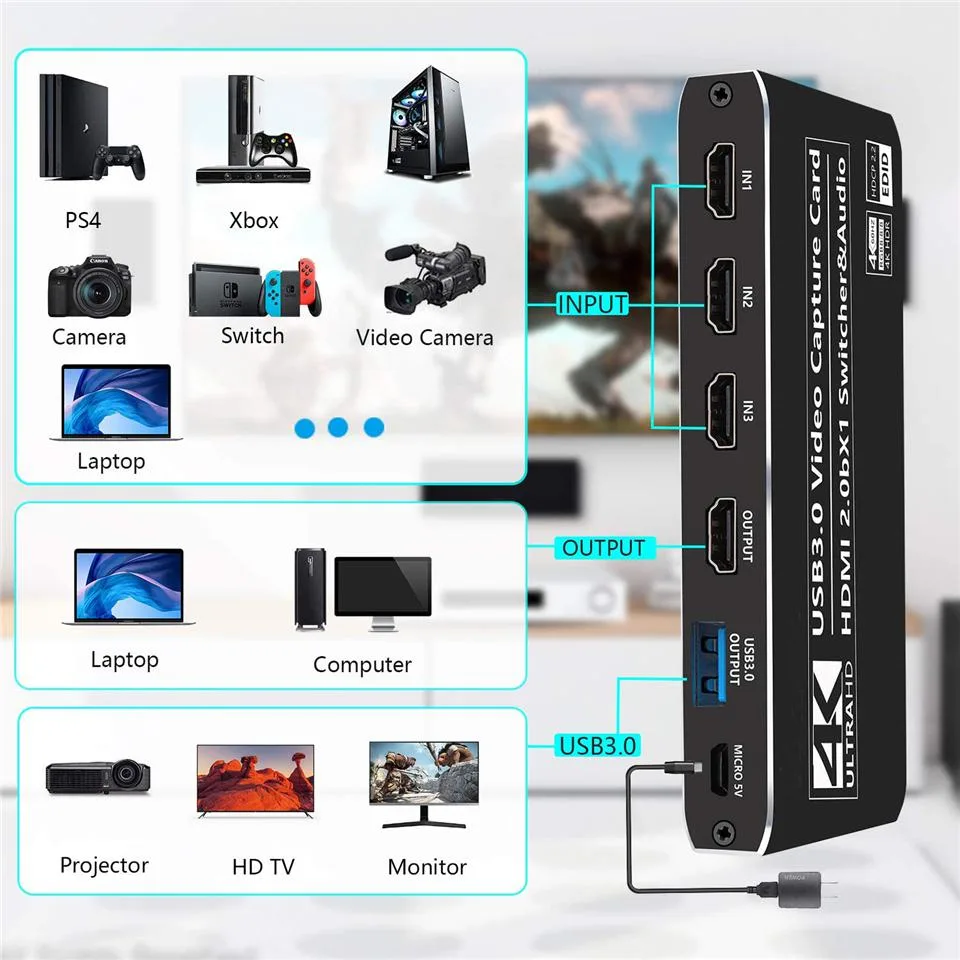

The Jansicotek OZC6 accepts three HDMI sources and one microphone, then streams the selected feed over USB 3.0 at up to 4K 30 fps. It suits streamers who switch between a game console, a camera and a media player without unplugging cables.

USB 3.0 limits capture to 4K 30 fps

The HDMI loop-out passes 4K 60 Hz 8:8:8 to a display, but the USB 3.0 path tops out at 4K 30 fps with YUY2 or RGB24 colour. HDCP 2.2 sources are supported, so protected content from modern consoles can be recorded.

Driver-free setup with IR switching

The device works with OBS Studio, VLC and other UVC applications on Windows, macOS and Linux without extra drivers. An IR remote selects the active HDMI input; the only common issue is forgetting to set the console output to 4K 30 fps or lower so the USB link can handle it.

Highlights

  • Capture 4K at 60 Hz pass-through for smooth console play
  • Record at 4K 30 fps over USB 3.0 for high-quality streams
  • Switch three HDMI sources with IR remote for simple setup
  • Add live commentary via mic input and monitor through audio out
  • Compact 4.45 × 2.2 × .71 inch design fits any bag

Specifications

BrandJansicotek
SeriesOZC6
ModelOZC6
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes

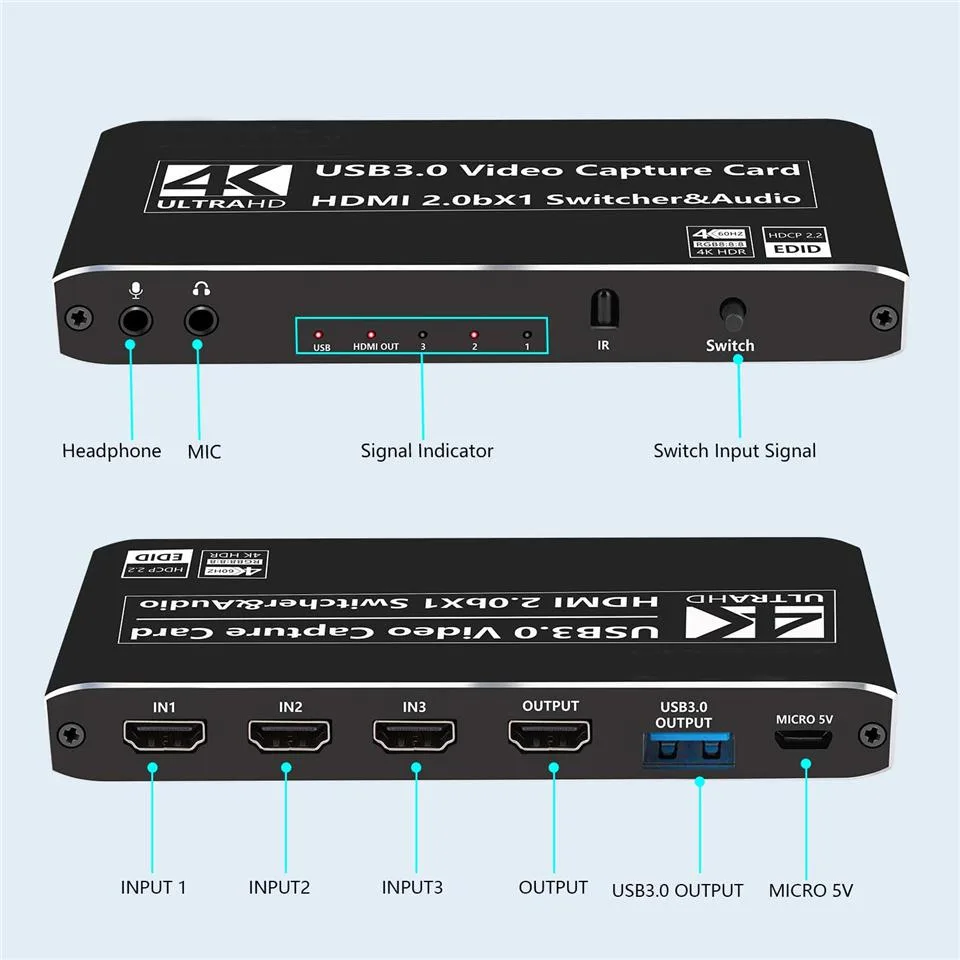

SpecificationInput: HDMI Port x 3, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@60Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Support 4K
FeatureEasy to carry and good compatibility: 4K@60Hz HD-MI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HD-MI input signal
4Kx2K With 30FPS,Support HDCP: The HD video capture card can support HDCP 4Kx2K with 30FPS and 1080P with 60FPS, it is very suitable to use it for game live streaming.
Faster Data Transmition: USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
ZERO Latency HD-MI Loopout: There is no latency when you use th
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4K@60Hz HDMI Audio Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x HDMI to HDMI Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

Which HDMI input should I use for a 4K@60Hz source?

Any of the three HDMI inputs accept 4K@60Hz signals, so choose the port that best matches your cable routing.

What frame rate will I see in OBS when capturing 4K video?

The USB 3.0 output caps capture at 4K@30fps even though the HDMI loop-out passes 4K@60Hz through to the display.

Does the USB 3.0 connection limit the capture resolution or frame rate?

Yes, USB 3.0 bandwidth restricts the capture path to a maximum of 4K@30fps while the HDMI pass-through remains at 4K@60Hz.
