Rectangular black HUD unit with 3.5in LCD screen and OBD2 cable attached

Jansicotek

Jansicotek KW206 OBD2 HUD measurement tool 3.5in LCD 34 data sets

SKU CH-DGMP-4HG7V MPN KW206

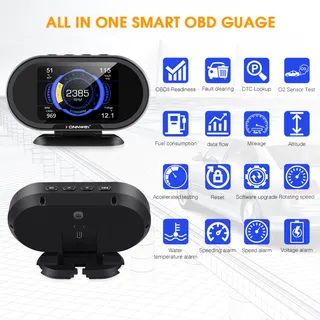

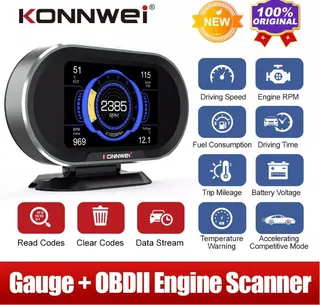

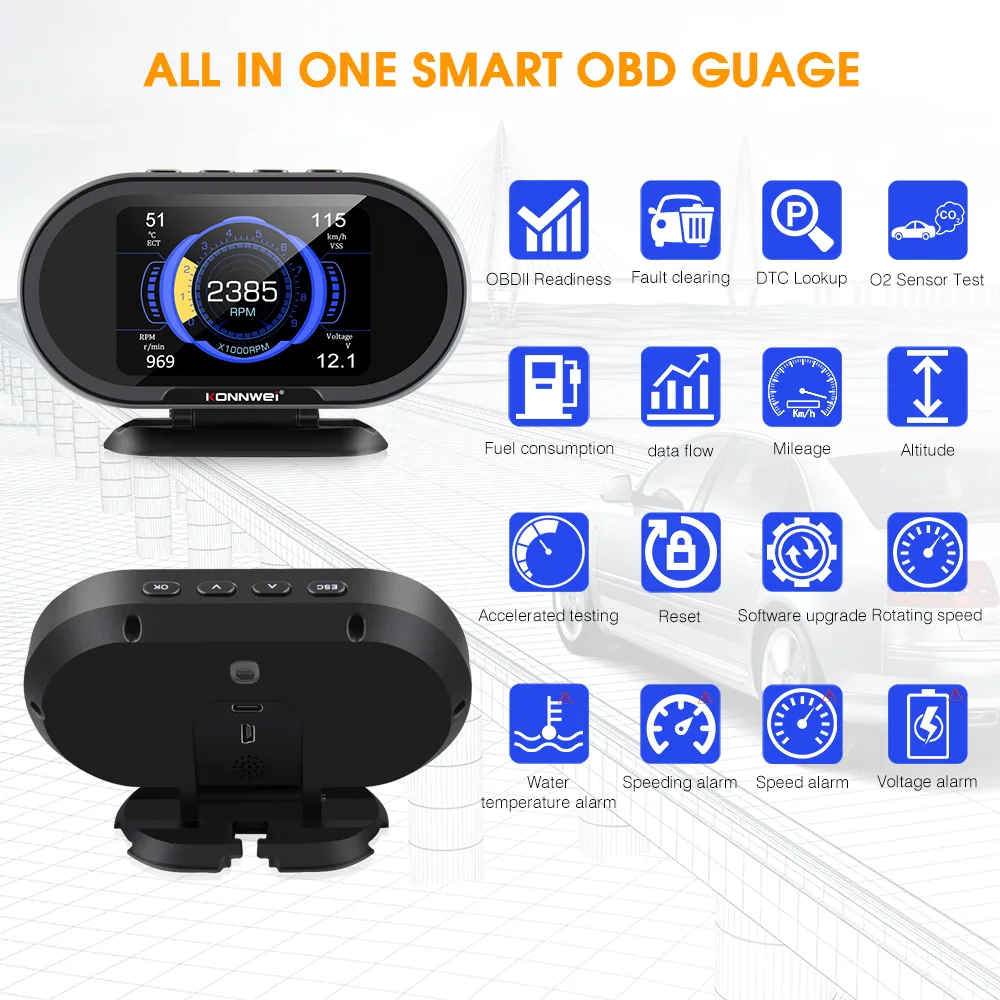

Projects 34 real-time vehicle parameters on a 3.5in LCD head-up display with OBDII diagnostics and customisable alerts

  • Size/Dimensions5.35 x 3.46 x 2.2 inches
  • Item Count1*KONNWEI KW206 Auto Diagnostic Scanner 1*User's Manual in E
  • Energy Star QualifiedEnergy Star Qualified
  • Selling UnitSet
  • TypeTest Equipment
  • FeaturesKW206 OBDII Code reader Function and Features : 1. Works on
  • 5-inch LCD projects 34 live data sets onto the windshield so you keep eyes on the road
  • Reads and clears OBD-II trouble codes to diagnose check-engine lights without a workshop visit
  • Adjustable over-speed, coolant-temperature and voltage alarms warn you before damage occurs

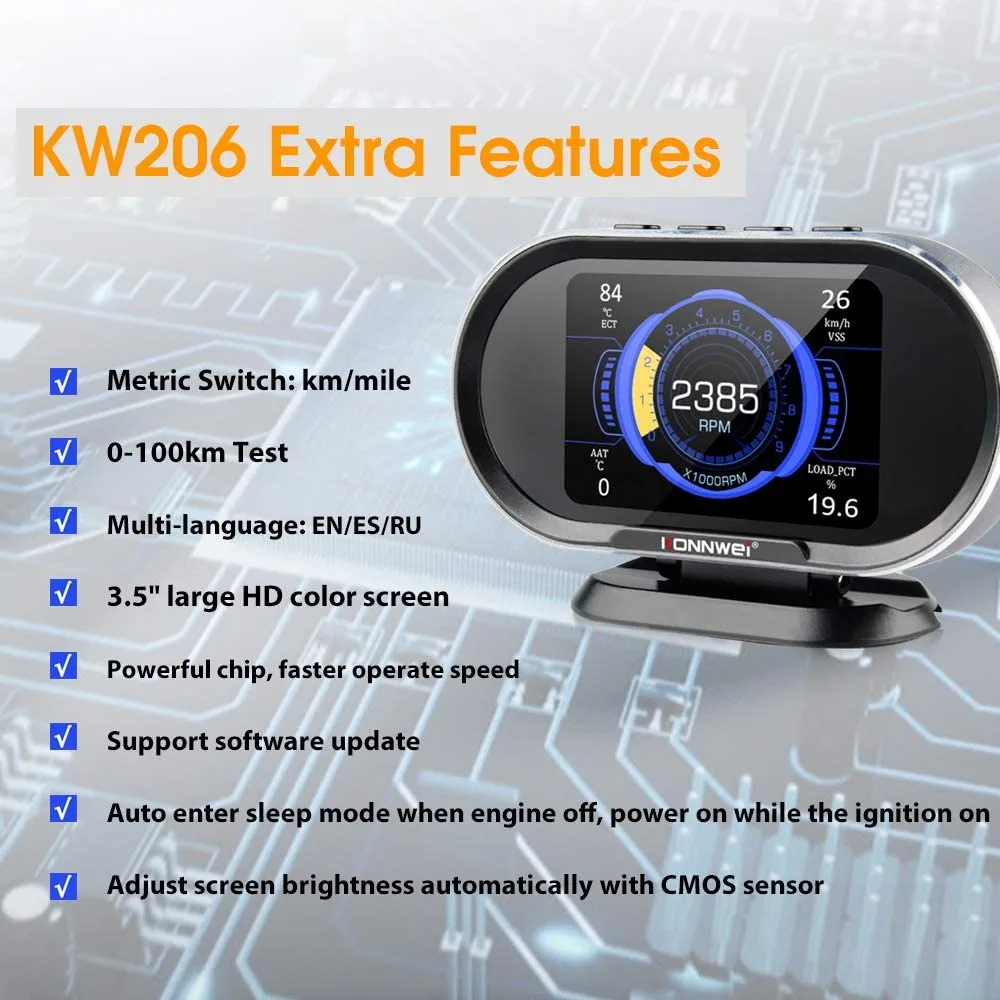

  • 0-100 km/h timer records acceleration performance for tuning or track days
  • Switches between metric and imperial units per parameter to match driver preference

Windshield HUD for OBD2 vehicles

The Jansicotek KW206 projects a 3.5in digital LCD onto the windshield so drivers see real-time parameters without looking down. It works on all OBDII-enabled gasoline and diesel cars and shows 34 data sets including fuel level, engine load and oxygen sensor readings. A one-click readiness key gives quick access to emission status.

Sustained data logging and diagnostics

The unit continuously streams live OBDII data in text format while recording 0-100km acceleration times. It reads and clears trouble codes across every supported protocol including J1850 dual protocol during extended drives. Imperial and metric units can be switched globally or per parameter without interrupting the session.

Alerts and power in daily use

Over-speed, coolant temperature and voltage warnings trigger audible alarms that are fully user-definable. The device draws power directly from the OBD2 port so no separate supply is needed. Its compact 5.35 x 3.46 x 2.2 inch body stays cool and silent during normal operation.

Highlights

  • 5-inch LCD projects 34 live data sets onto the windshield so you keep eyes on the road
  • Reads and clears OBD-II trouble codes to diagnose check-engine lights without a workshop visit
  • Adjustable over-speed, coolant-temperature and voltage alarms warn you before damage occurs
  • 0-100 km/h timer records acceleration performance for tuning or track days
  • Switches between metric and imperial units per parameter to match driver preference

Specifications

BrandKonnwei
ModelKW206
Size/Dimensions5.35 x 3.46 x 2.2 inches
Item Count1*KONNWEI KW206 Auto Diagnostic Scanner
1*User's Manual in English
1*OBD2 Cable
1*USB Cable
Energy Star QualifiedEnergy Star Qualified
Selling UnitSet
TypeTest Equipment
FeaturesKW206 OBDII Code reader Function and Features :
1. Works on ALL OBD II Enabled vehicles, both Gasoline and Diesel cars - domestic and imported.
2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.
3. Bright color coded LEDS indicators and built-in speaker provide both visual and audible tone for readiness verification
4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
5. Easily determines the cause of the Check Engine Light(MIL)
6. Turns off Check Engine Lig

Questions about this item

Does the 3.5in LCD produce audible noise or noticeable heat during continuous use?

The KW206 has no fan or moving parts, so it runs silently and stays cool while drawing power from the OBD-II port.

What must the vehicle already have for the KW206 to function?

The car needs an OBD-II compliant diagnostic socket; the tool supports all standard OBD-II protocols including J1850 dual protocol and ATTPS.

Will the 34 data sets display correctly on a vehicle that uses the older J1850 protocol?

Yes, the KW206 supports J1850 dual protocol among its full OBD-II command set, so the 34 real-time parameters are available on those vehicles.
