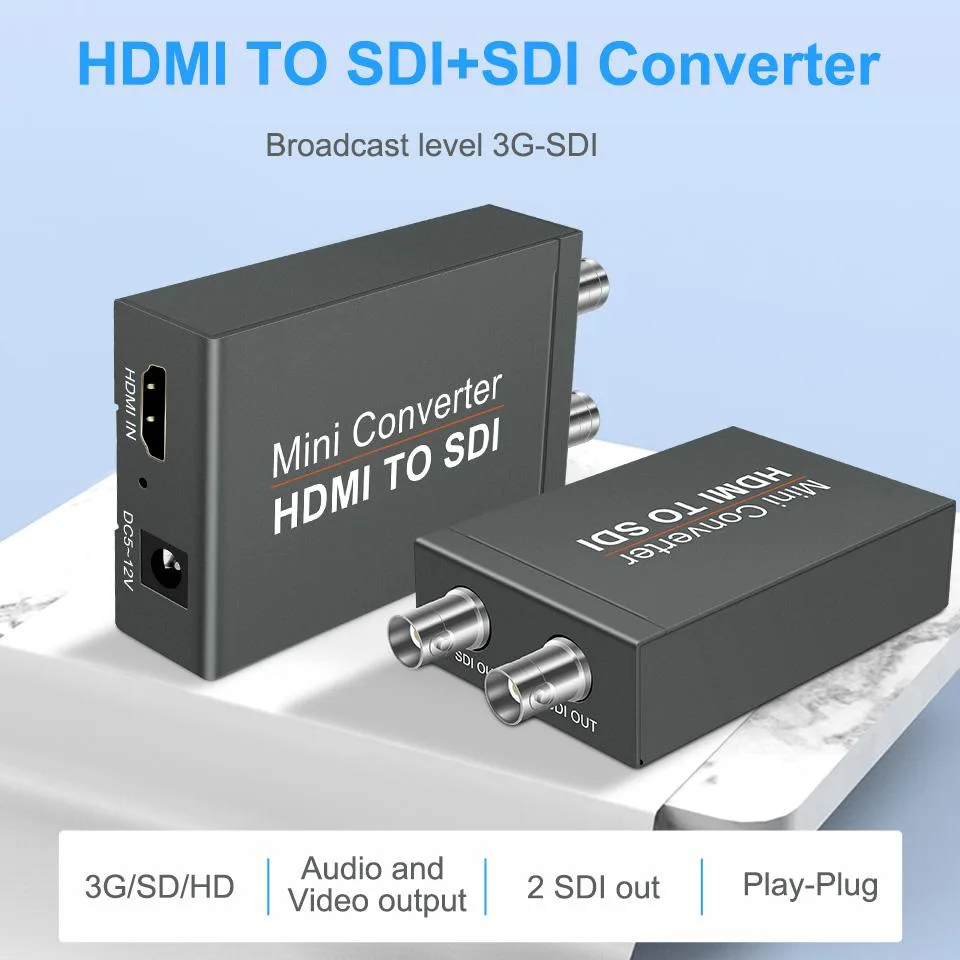

Black compact box with HDMI input and two SDI outputs

Jansicotek

Jansicotek HDMI2SDI 1 HDMI In 2 SDI Out video capturing device

SKU CH-EJ0H-S8HX3

Converts one HDMI input to two SDI outputs at up to 1080p 60Hz with embedded audio and 100-metre 3G-SDI reach

  • InterfaceHDMI to SDI
  • FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Converts HDMI to dual SDI outputs for broadcast workflows
  • Supports 1080p at 24, 25, 30, 50, 60 Hz frame rates
  • Embedded audio and video stay perfectly synchronised
  • Transmits 3G-SDI up to 100 metres without signal loss
  • Operates without an external power supply for portability

What it is

The Jansicotek HDMI2SDI converts a single HDMI source into two simultaneous SDI outputs, making it suitable for broadcast, conferencing, security and multi-display installations where SDI cabling is preferred.

Dual SDI output

One HDMI input carries video up to 1080p at 24, 25, 30, 50 or 60 Hz and the unit replicates that signal on two SDI ports at 2.970 Gbit/s with embedded audio, so a camera feed or graphics output reaches two SDI monitors or recorders without a distribution amplifier.

Sustained operation

The converter draws power from the USB cable provided, requires no external adapter, and includes built-in ESD protection so the 2.970 Gbit/s link remains stable during long sessions such as live production, teaching or monitoring without thermal throttling or signal degradation.

Highlights

  • Converts HDMI to dual SDI outputs for broadcast workflows
  • Supports 1080p at 24, 25, 30, 50, 60 Hz frame rates
  • Embedded audio and video stay perfectly synchronised
  • Transmits 3G-SDI up to 100 metres without signal loss
  • Operates without an external power supply for portability

Specifications

BrandJansicotek
SeriesHDMI2SDI
ModelHDMI2SDI
InterfaceHDMI to SDI
FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz

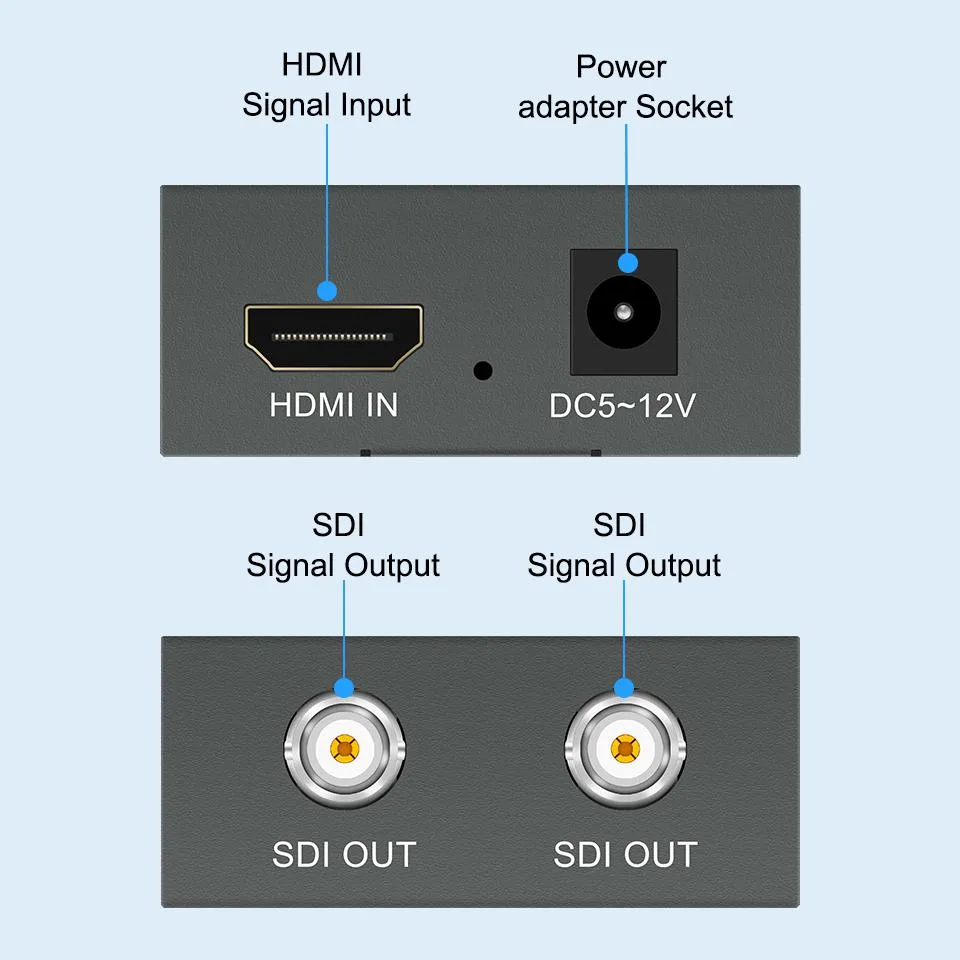

HDMI1 In
SDI2 Out
LED IndicatorYes
DisplayThis HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display
Power SupplyNO need external power supply
Feature1.Supports 1ch HDMI input, 2ch SDI output
2.Embedded audio and image synchronization output
3.Support HDMI 1.3, HDCP1.3
4.Built-in ESD protection circuitry can effectively prevent electrostatic damage
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x HDMI to SDI Converter
1 x Power Adapter
1 x Uuse Manual
OptionHDMI - 1080p

Questions about this item

What does the 1080P headline resolution mean when I connect this converter to my camera and monitors?

The unit accepts HDMI up to 1080p at 24, 25, 30, 50 or 60 Hz and mirrors it to two SDI outputs at the same frame rates, so your camera feed appears on both SDI displays without scaling.

Which SDI standard does the 2.970 Gbit/s bit-rate correspond to and what cable lengths does it allow?

The 2.970 Gbit/s rate is 3G-SDI, supporting up to 100 metres; it also handles HD-SDI at 1.485 Gbit/s for 200 metres and SD-SDI for 300 metres.

What physical space and power do I need to mount the 5.83 x 4.49 x 2.44 inch box?

The converter measures 5.83 by 4.49 by 2.44 inches, weighs 7.8 ounces and draws power from the included USB cable, so no external power brick is required.
