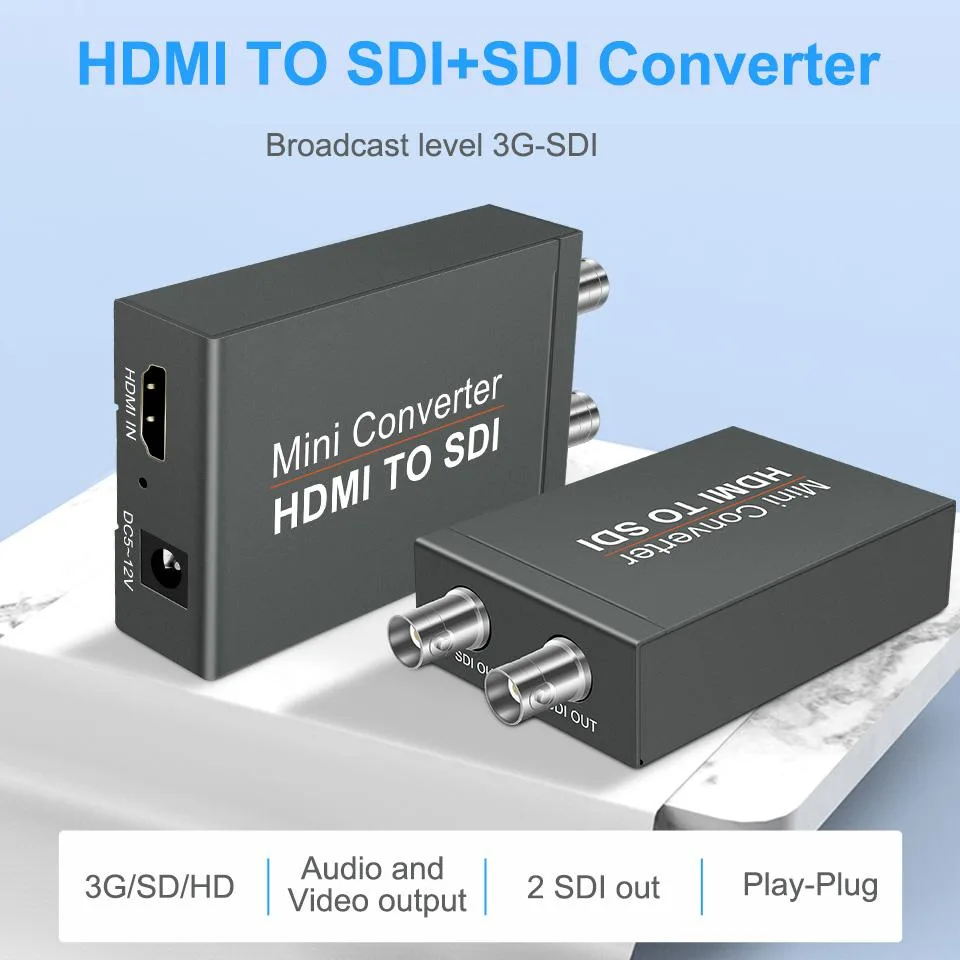

Small black box with one HDMI port and two SDI ports

Jansicotek

Jansicotek HDMI2SDI 1×HDMI 2×SDI 1080p video capturing device

SKU CH-H1PR-FW7WM

Converts one HDMI input into two SDI outputs at up to 1080p with embedded audio and transmission distances up to 300 metres

  • InterfaceHDMI to SDI
  • FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Converts HDMI to dual SDI with 2.97 Gbit/s throughput
  • Supports 1080p at 24, 25, 30, 50 and 60 Hz
  • One HDMI input drives two SDI outputs simultaneously
  • Transmits 3G-SDI up to 100 metres without external power
  • Embedded audio and video stay in sync with ESD protection

What it is

The Jansicotek HDMI2SDI converter takes a single HDMI source and distributes it to two SDI displays. It accepts HDMI input formats from 480P through 1080p at 24, 25, 30, 50 and 60 Hz plus common PC resolutions up to 1680×1050. Embedded audio travels with the video and both outputs run at 2.970 Gbit/s for lossless signal quality.

Who it suits and who should look elsewhere

Broadcasters, educators and AV installers who need to feed one HDMI camera or player to dual SDI monitors up to 100 metres away at 3G-SDI rates will find this compact unit fits the workflow. Buyers who require 4K resolution, HDR metadata pass-through or more than two SDI outputs cannot use this device.

The deciding specification

Maximum supported output resolution is 1080p at 60 Hz over two SDI connectors with a 2.970 Gbit/s bit rate. If your project demands higher resolution or additional outputs, this converter will not meet the requirement.

Highlights

  • Converts HDMI to dual SDI with 2.97 Gbit/s throughput
  • Supports 1080p at 24, 25, 30, 50 and 60 Hz
  • One HDMI input drives two SDI outputs simultaneously
  • Transmits 3G-SDI up to 100 metres without external power
  • Embedded audio and video stay in sync with ESD protection

Specifications

BrandJansicotek
SeriesHDMI2SDI
ModelHDMI2SDI
InterfaceHDMI to SDI
FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz

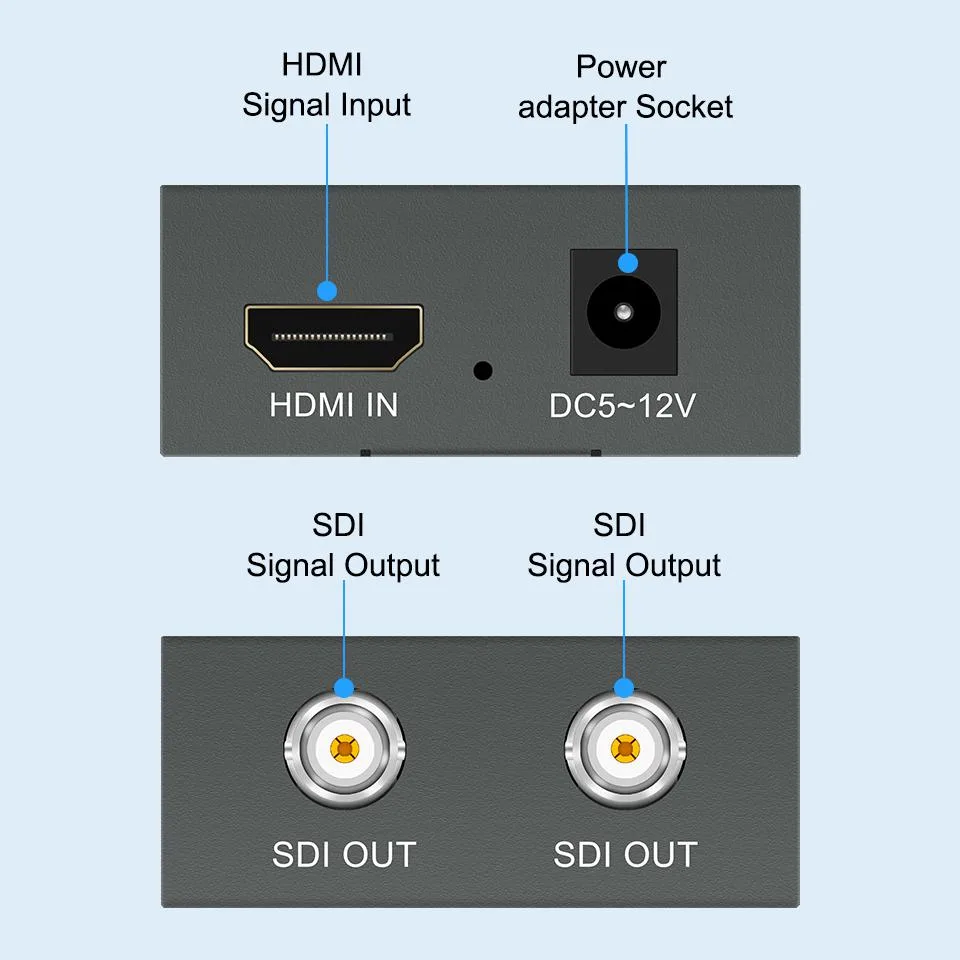

HDMI1 In
SDI2 Out
LED IndicatorYes
DisplayThis HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display
Power SupplyNO need external power supply
Feature1.Supports 1ch HDMI input, 2ch SDI output
2.Embedded audio and image synchronization output
3.Support HDMI 1.3, HDCP1.3
4.Built-in ESD protection circuitry can effectively prevent electrostatic damage
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x HDMI to SDI Converter
1 x Power Adapter
1 x Uuse Manual
OptionHDMI - 1080p

Questions about this item

What HDMI and SDI standards does this converter handle, and what bitrate does the SDI link actually run at?

It accepts HDMI 1.3 with HDCP 1.3 and outputs two 3G-SDI streams at 2.970 Gbit/s, plus HD-SDI at 1.485 Gbit/s and SD-SDI.

What are the unit's exact dimensions and weight so I can check rack or bracket fit?

The chassis measures 5.83 x 4.49 x 2.44 inches and weighs 7.8 ounces.

Does the box include a power adapter or only a USB cable, and which connector does the unit expect?

A power adapter is included in the package along with a USB power cable; the unit draws power through its DC input.
