Two compact metal boxes with HDMI, USB and RJ45 ports, linked by a single Cat6 cable

Jansicotek

Jansicotek HDMI KVM USB Extender 1080p 60m PoC CAT6

SKU CH-MZNY-EC12T

Extends HDMI, USB keyboard and mouse signals up to 60 metres over a single Cat6 cable with zero-latency 1080p video, PoC power and local HDMI loop-out

  • Device TypeTransceiver
  • StandardsIEEE-568B
  • Transfer Rate10 Gbps
  • Power AdapterDC 12V/1A
  • FeatureLong range transmission:up to 60m/196ft over a single AWG23
  • Package ContentsHDMI KVM extender transmitter x1 HDMI KVM extender receiver
  • Extend HDMI up to 60 metres over one CAT6 cable
  • Power both units from a single 12 V adapter via PoC
  • Local HDMI loop-out on the transmitter for a nearby display
  • Control the source with USB keyboard and mouse from the remote end
  • Uncompressed 1080p 60 Hz video with zero latency

HDMI KVM USB Extender 1080p 60m

This Jansicotek extender transmits HDMI video, USB keyboard and mouse signals, and audio up to 60 metres over a single CAT6 cable. It supports resolutions up to 1920x1080 at 60 Hz with 3D and HDR, plus LPCM, Dolby Digital and DTS audio formats. The built-in PoC function powers the receiver through the cable so only one 12 V power adapter is required. A local HDMI loop output on the transmitter lets you keep a monitor at the source.

Installation uses one CAT5e

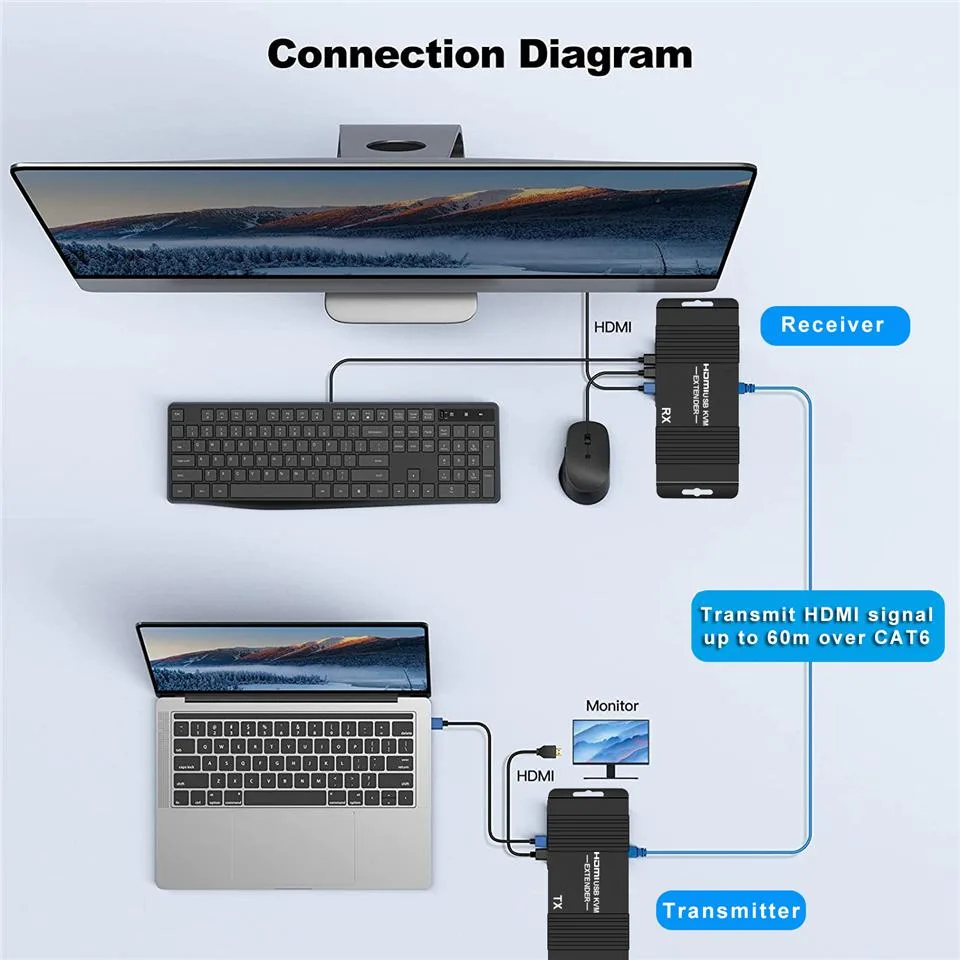

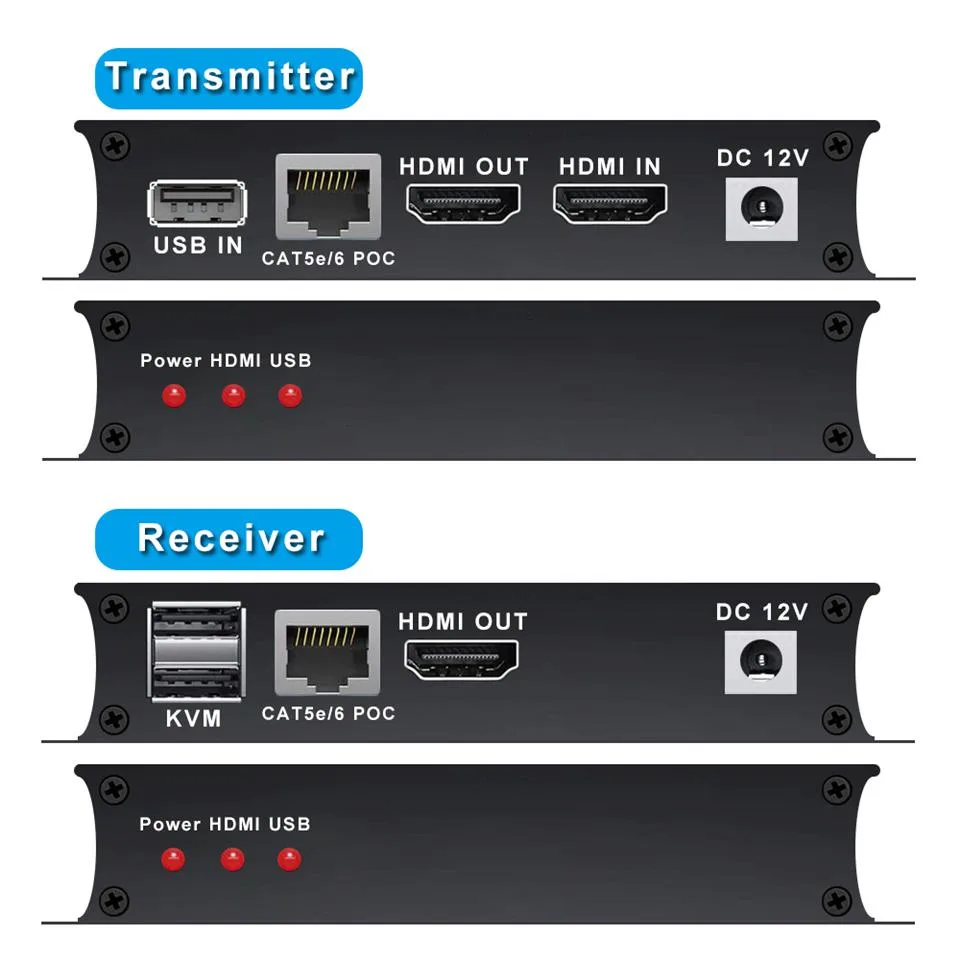

Connect the transmitter to the HDMI source and USB host, link the receiver to the display and peripherals, then run the cable between the two units. The transmitter accepts a Type-B USB link to the PC while the receiver provides USB ports for a wired or wireless keyboard and mouse. Common issues include exceeding the 60 metre limit on CAT6, using cables below AWG23 gauge, or mismatched wiring standards that break the 100 ohm impedance requirement.

Verify your source outputs 1080p at 60 Hz or lower

The extender handles 576p, 720p and 1080p at 60 Hz but does not support higher refresh rates or 4K resolutions. Ensure the HDMI source and display are HDCP 1.4 compliant and that the USB host only needs HID-class keyboard and mouse traffic. Confirm you have a solid CAT5e or CAT6 patch cable up to the rated distance: 40 metres on CAT5, 50 metres on CAT5e, or 60 metres on CAT6.

Highlights

  • Extend HDMI up to 60 metres over one CAT6 cable
  • Power both units from a single 12 V adapter via PoC
  • Local HDMI loop-out on the transmitter for a nearby display
  • Control the source with USB keyboard and mouse from the remote end
  • Uncompressed 1080p 60 Hz video with zero latency

Specifications

Device TypeTransceiver
StandardsIEEE-568B
Transfer Rate10 Gbps
Power AdapterDC 12V/1A
FeatureLong range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
POC function:Power over CAT cable,only need one power adapter;
HDMI loop out function:The transmitter with one HDMI local loop out;
Uncompressed mode:ZERO Delay,No loss;
KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
Male to male:one TX to one RX applicataion;
Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
Built-in autom
Package ContentsHDMI KVM extender transmitter x1
HDMI KVM extender receiver x1
Power adapter x1
User manual x1

Questions about this item

How do I verify the extender is passing 1080p60 video and USB HID signals after connecting the Cat6 cable?

Check that the display shows 1920x1080 at 60 Hz with no artefacts and that a wired or wireless keyboard and mouse control the source PC from the receiver side; the link uses uncompressed zero-delay transmission so latency should be imperceptible.

Which items are included in the package and what extra cable must I provide?

The box contains one transmitter, one receiver, one 12 V/1 A power adapter and a user manual; you must supply a single AWG23 Cat5e or Cat6 patch cable up to the required distance.

Which cable category should I choose for a 50 metre run versus a 60 metre run?

Use Cat5e for runs up to 50 m (164 ft) and Cat6 for the full 60 m (196 ft) maximum; Cat5 is limited to 40 m (131 ft).
