Two small metal boxes with HDMI ports, LC fiber connectors, USB and power sockets, sold as a transmitter and receiver pair

Jansicotek

Jansicotek HDMI KVM Fiber Extender 4K 60Hz 20km Kit

SKU CH-WV5C-FQBRV

Extends uncompressed 4K 60Hz HDMI with USB KVM up to 20 km over single-mode LC fibre and 500 m over multi-mode, including bi-directional IR and HDMI loop-out

  • Device TypeTransceiver
  • Transfer Rate10Gbps
  • Power AdapterDC 12V/1A
  • FeatureLong range transmission:up to 20 km over a single-mode/Multi
  • Package ContentsHDMI extender Fiber transmitter ……………………1 pcs HDMI extender
  • Uncompressed 4K 60 Hz video up to 20 km over single-mode fiber
  • Zero-latency transmission with 10 Gbps throughput for real-time monitoring
  • Remote USB keyboard and mouse control across the link
  • Bi-directional IR pass-through for source or display control
  • HDMI loop-out on transmitter for local monitoring

4K 60Hz KVM Fiber Extender Kit

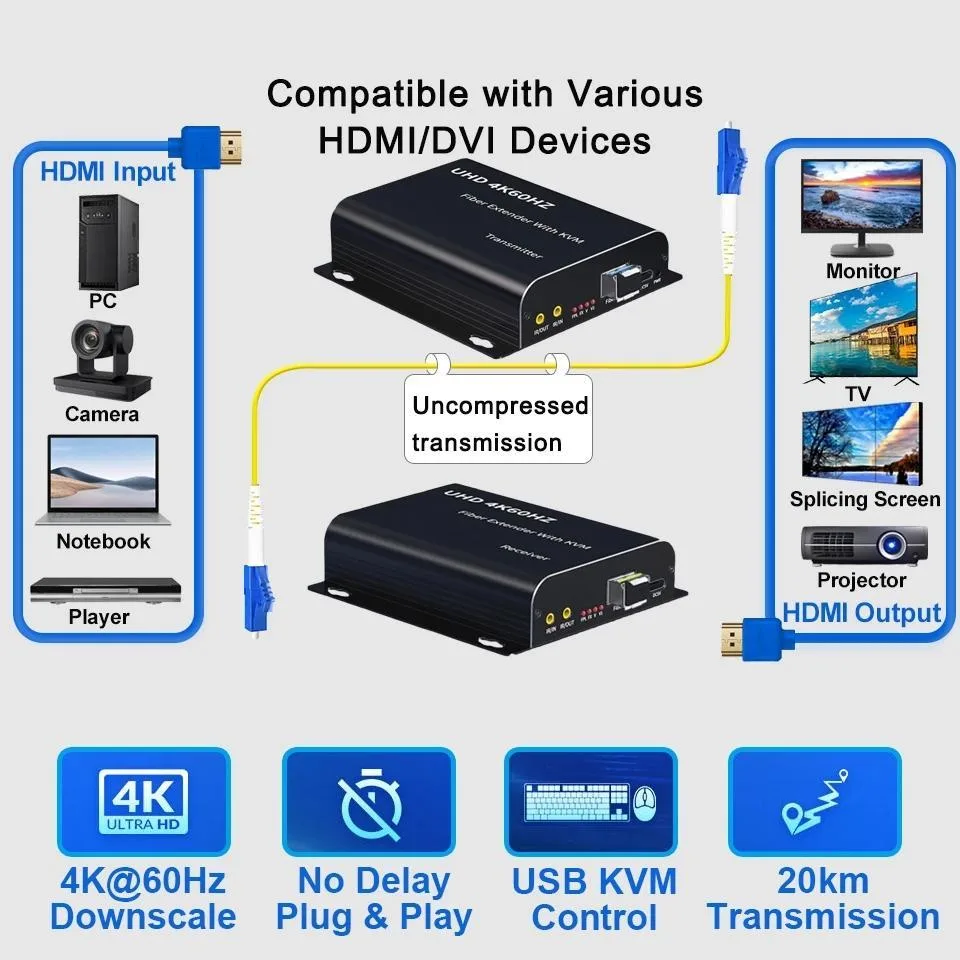

This Jansicotek kit extends HDMI video, audio, USB KVM and IR control over a single LC fiber optic cable up to 20 km on single-mode or 500 m on multimode fiber. It delivers uncompressed 4K 60Hz and 1080p 120Hz signals with zero latency. The transmitter includes an HDMI loop output for a local display. Two SFP modules, a USB data cable and two 12V power adapters are included.

Suits installers needing long-range 4K extension

Ideal for security monitoring, broadcast, video conferencing, medical imaging, digital signage, home theatre and industrial automation where uncompressed 4K 60Hz must travel beyond copper limits. Not for users who require HDMI 2.1 bandwidth or 4K 120Hz support. Not for setups without LC single-mode or multimode fiber infrastructure. Not for buyers needing IP-routable KVM over standard Ethernet switches.

20 km single-mode reach decides fit

The kit transmits 3840×2160 60Hz 4:4:4 uncompressed over one LC single-mode fiber up to 20 km (12.4 mi) or multimode up to 500 m (.31 mi). HDCP 2.2 and HDMI 2.0b compliance protect premium content. Bi-directional 20–60 kHz IR and USB HID keyboard/mouse pass-through enable full remote control. If the link distance exceeds 20 km on single-mode fiber, this extender cannot cover it.

Highlights

  • Uncompressed 4K 60 Hz video up to 20 km over single-mode fiber
  • Zero-latency transmission with 10 Gbps throughput for real-time monitoring
  • Remote USB keyboard and mouse control across the link
  • Bi-directional IR pass-through for source or display control
  • HDMI loop-out on transmitter for local monitoring

Specifications

Device TypeTransceiver
Transfer Rate10Gbps
Power AdapterDC 12V/1A
FeatureLong range transmission:up to 20 km over a single-mode/Multi-mode LC fiber optic cable;
Video resolution: 480P,720P,720i,1080i,1920*1080P@60/120Hz,4K@30/60Hz;
Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
Uncompressed,No loss,No delay;
Infrared control:Bi-directional 20~60 KHz IR romote control;
KVM Control:supports remote USB KVM control by keyboard & mouse;
HDMI Loop Out:The transmitter with one HDMI loop output;
Video standard:compliance with HDMI 2.0b and HDCP 2.2 standard;
Built-in automatic adjustment system: make the image smooth, clear and stable;
Built-in ESD protecti
Package ContentsHDMI extender Fiber transmitter ……………………1 pcs
HDMI extender Fiber receiver ……………………… 1 pcs
LC SFP Module………………………………........... 2 pcs
USB data cable .......……………………………….... 1 pcs
Power adapter ……………………………….... 2 pcs
User manual …………………………………..1 pcs

Questions about this item

Does the kit include the fiber cable, or must I buy LC singlemode or multimode cable separately?

The kit provides transmitter, receiver, two LC SFP modules, one USB data cable and two 12V/1A power adapters; fiber optic cable with LC connectors is not included and must be purchased separately.

Should I choose singlemode fiber for the full 20km reach or multimode for shorter runs?

Singlemode LC fiber supports up to 20km, while multimode LC fiber is limited to 500m; select singlemode for maximum distance or multimode for shorter indoor links.

Will 4K@60Hz remain uncompressed and latency-free over a 20km singlemode link?

Yes, the extender delivers uncompressed 3840x2160@60Hz with no loss or delay over singlemode fiber up to 20km, and also supports 1920x1080@120Hz.
