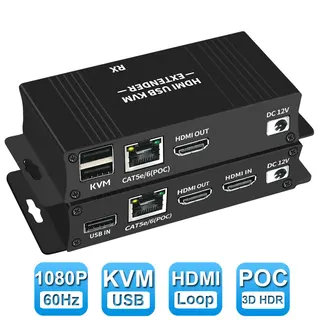

Two compact black network boxes with HDMI, USB and RJ45 ports, plus a power adapter

Jansicotek

Jansicotek HDMI KVM Extender 1080P 60m Cat6 POE Loop Out

SKU CH-9TC6-QE5BF

Extends 1080p HDMI, USB keyboard and mouse signals up to 60 metres over a single Cat6 cable with zero-latency transmission, Power over Cable and a local HDMI loop-out

  • Device TypeTransceiver
  • StandardsIEEE-568B
  • Transfer Rate10 Gbps
  • Power AdapterDC 12V/1A
  • FeatureLong range transmission:up to 60m/196ft over a single AWG23
  • Package ContentsHDMI KVM extender transmitter x1 HDMI KVM extender receiver
  • Extend video up to 60 m over one Cat6 cable
  • Power both units with a single 12 V adapter via POC
  • Control a remote PC with USB keyboard and mouse
  • Monitor locally through HDMI loop-out on the transmitter
  • Transmit 1080p 60 Hz uncompressed with zero latency

HDMI KVM Extender 60 m over Cat6

The Jansicotek HDMI KVM extender transmits 1080p video, audio and USB keyboard and mouse signals up to 60 metres over a single AWG23 Cat6 cable. It supports HDMI 1.4b, HDCP 1.4 and DVI compliant sources with a maximum pixel clock of 300 MHz and 10.2 Gbps data rate. Power over cable requires only one 12 V 1 A adapter at the transmitter.

Upgrade from short HDMI cables

This extender replaces direct HDMI runs limited to a few metres and adds remote USB control at distances up to 40 metres on Cat5, 50 metres on Cat5e or 60 metres on Cat6. The jump is worth it when the display and computer must sit in separate rooms or racks while keeping 1920 x 1080 at 60 Hz with zero compression and no added latency.

Plug-and-play Cat6 install

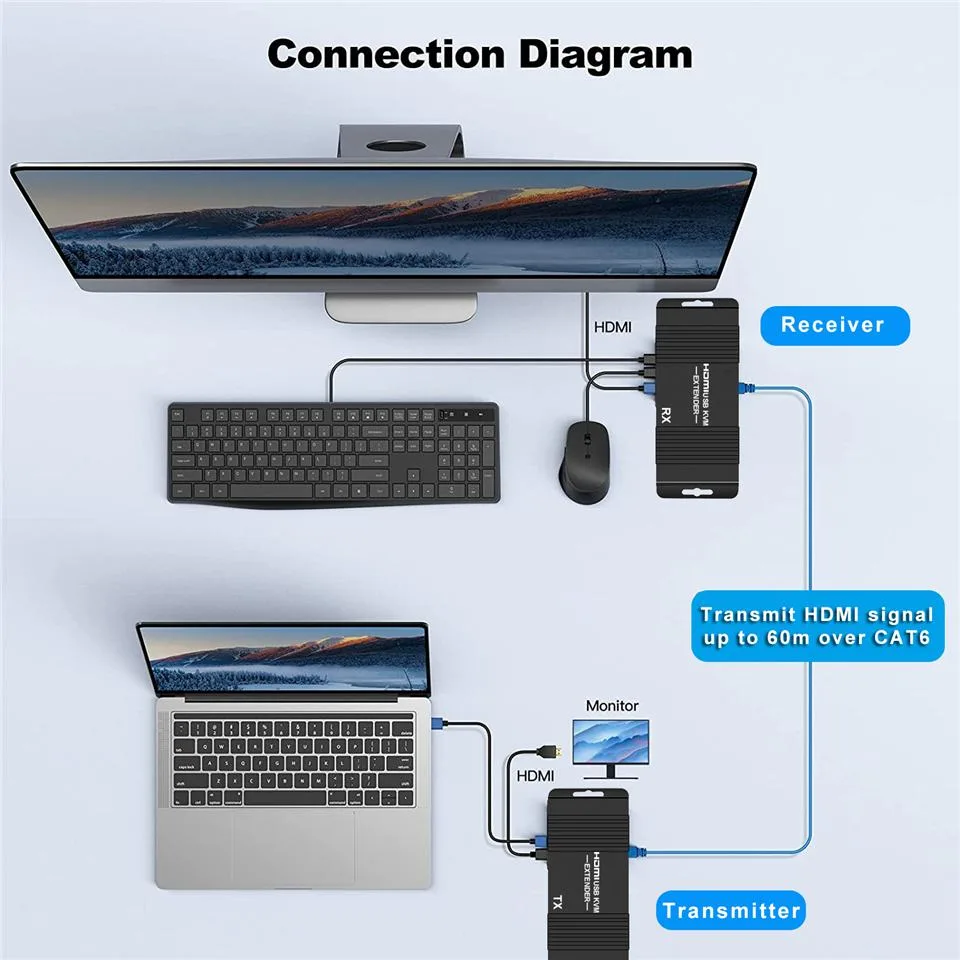

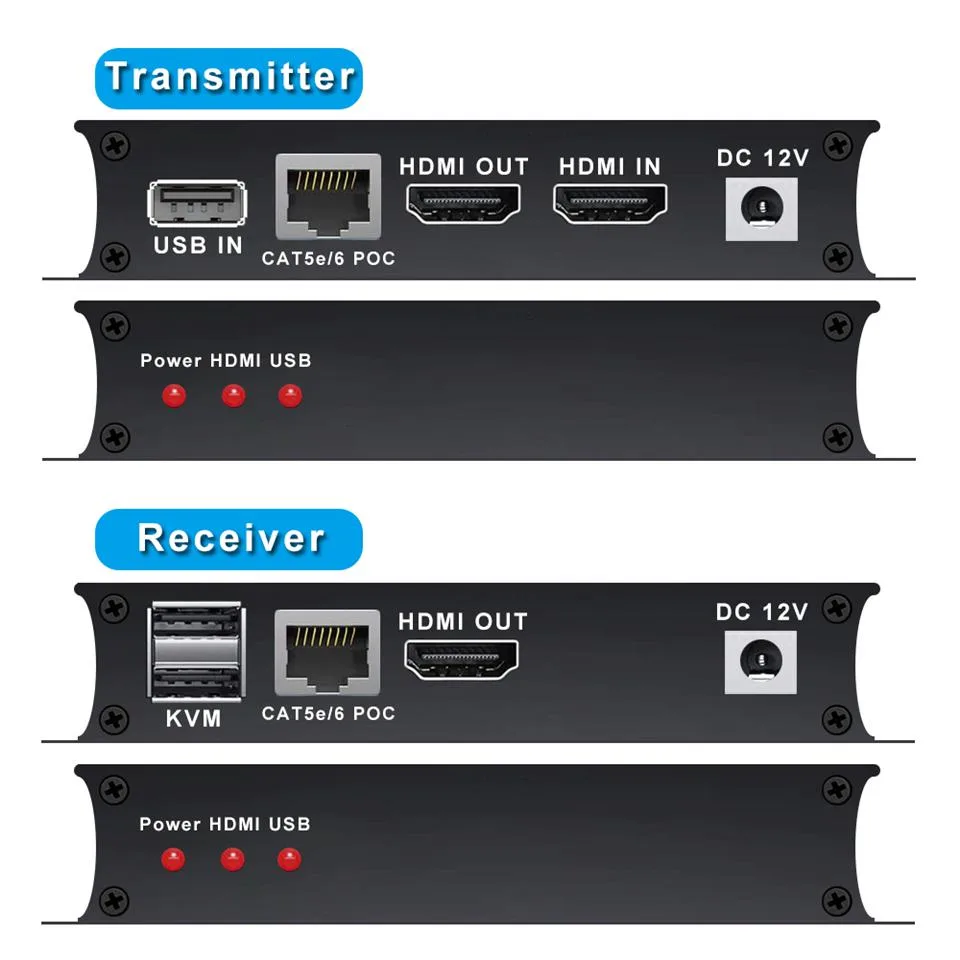

Connect the transmitter to the source with an HDMI cable and a USB Type-B cable, link transmitter and receiver with a single Cat5e or Cat6 patch cord, then attach the display and USB keyboard and mouse to the receiver. The transmitter also provides an HDMI loop-out for a local monitor. Most issues come from using cables below Cat5e spec or exceeding the stated distance limits for the cable grade chosen.

Highlights

  • Extend video up to 60 m over one Cat6 cable
  • Power both units with a single 12 V adapter via POC
  • Control a remote PC with USB keyboard and mouse
  • Monitor locally through HDMI loop-out on the transmitter
  • Transmit 1080p 60 Hz uncompressed with zero latency

Specifications

Device TypeTransceiver
StandardsIEEE-568B
Transfer Rate10 Gbps
Power AdapterDC 12V/1A
FeatureLong range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
POC function:Power over CAT cable,only need one power adapter;
HDMI loop out function:The transmitter with one HDMI local loop out;
Uncompressed mode:ZERO Delay,No loss;
KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
Male to male:one TX to one RX applicataion;
Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
Built-in autom
Package ContentsHDMI KVM extender transmitter x1
HDMI KVM extender receiver x1
Power adapter x1
User manual x1

Questions about this item

What cable type and length does the 60 m link require?

Use a single AWG23 Cat6 cable up to 60 m; Cat5e reaches 50 m and Cat5 reaches 40 m.

Which end gets the 12 V 1 A adapter when using the POC function?

Connect the DC 12 V/1 A adapter to either the transmitter or the receiver; the other unit is powered over the Cat cable.

Does the local HDMI loop-out on the transmitter need a separate power supply?

No, the loop-out is driven by the transmitter which already receives power from the single 12 V adapter via POC.
