A pair of small metal boxes with HDMI ports and LC fiber connectors, plus power adapters and a USB cable

Jansicotek

Jansicotek HDMI Fiber Extender Kit 4K60 20km USB KVM Loop

SKU CH-BFM5-FZ7D5

Extends 4K@60Hz HDMI, USB KVM and bi-directional IR up to 20 km over single LC fiber with HDMI loop-out

  • Device TypeTransceiver
  • Transfer Rate10Gbps
  • Power AdapterDC 12V/1A
  • FeatureLong range transmission:up to 20 km over a single-mode/Multi
  • Package ContentsHDMI extender Fiber transmitter ……………………1 pcs HDMI extender
  • Extends 4K60 video up to 20 km over single LC fiber
  • USB KVM lets you control source remotely with keyboard and mouse
  • HDMI loop output mirrors signal locally at transmitter
  • Bi-directional IR passes remote commands both ways over same link
  • Uncompressed 10 Gbps transport with HDCP 2.2 and HDMI 2.0b compliance

Long-range HDMI fibre extender kit

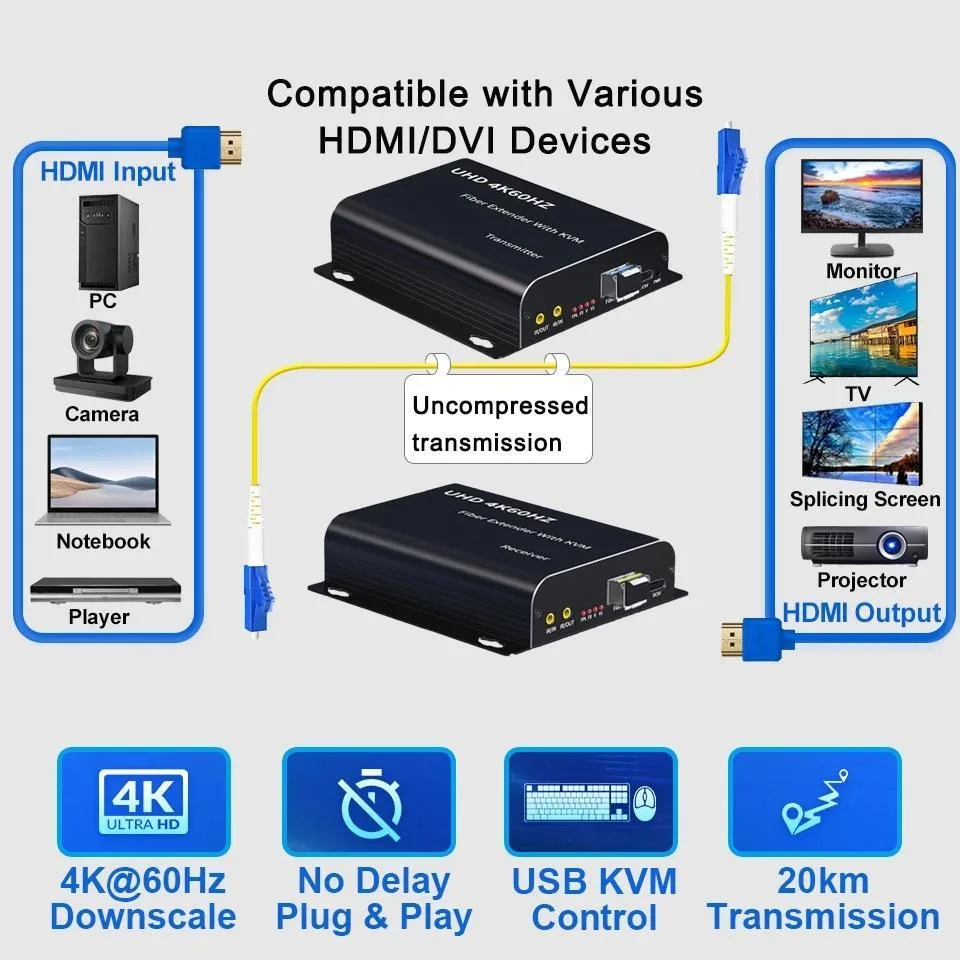

The Jansicotek kit extends HDMI video and audio up to 20 km over a single LC fibre cable. It delivers uncompressed 4K at 60 Hz or 1080p at 120 Hz with zero latency. USB KVM and bi-directional IR let operators control the source remotely. Two transceivers, two SFP modules and power adapters are included.

Maximum transmission distance 20 km

The decisive specification is the 20 km reach over single-mode or multi-mode LC fibre at 10 Gbps. This range covers campus, venue or campus-wide links without repeaters. Shorter runs work equally well, but the hardware is engineered for that full distance ceiling.

Plug-and-play with alignment care

Connect transmitter to source, receiver to display, link the LC fibre and apply the 12 V 1 A adapters. The built-in automatic adjustment stabilises the image. The common issue is fibre-end contamination or mismatched single-mode and multi-mode cables; clean connectors and verify cable type before powering up.

Highlights

  • Extends 4K60 video up to 20 km over single LC fiber
  • USB KVM lets you control source remotely with keyboard and mouse
  • HDMI loop output mirrors signal locally at transmitter
  • Bi-directional IR passes remote commands both ways over same link
  • Uncompressed 10 Gbps transport with HDCP 2.2 and HDMI 2.0b compliance

Specifications

Device TypeTransceiver
Transfer Rate10Gbps
Power AdapterDC 12V/1A
FeatureLong range transmission:up to 20 km over a single-mode/Multi-mode LC fiber optic cable;
Video resolution: 480P,720P,720i,1080i,1920*1080P@60/120Hz,4K@30/60Hz;
Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
Uncompressed,No loss,No delay;
Infrared control:Bi-directional 20~60 KHz IR romote control;
KVM Control:supports remote USB KVM control by keyboard & mouse;
HDMI Loop Out:The transmitter with one HDMI loop output;
Video standard:compliance with HDMI 2.0b and HDCP 2.2 standard;
Built-in automatic adjustment system: make the image smooth, clear and stable;
Built-in ESD protecti
Package ContentsHDMI extender Fiber transmitter ……………………1 pcs
HDMI extender Fiber receiver ……………………… 1 pcs
LC SFP Module………………………………........... 2 pcs
USB data cable .......……………………………….... 1 pcs
Power adapter ……………………………….... 2 pcs
User manual …………………………………..1 pcs

Questions about this item

What does 4K@60Hz mean when the extender is connected in a real installation?

The kit delivers uncompressed 3840x2160 video at 60 frames per second with 7.1-channel audio over a single LC fibre link up to 20 km, with zero added latency.

Which HDMI and HDCP versions does the link use, and what bandwidth does that cap in practice?

The transceivers comply with HDMI 2.0b and HDCP 2.2, limiting the video path to the 10 Gbps transfer rate stated for the fibre connection.

What physical connections and power does each unit need to fit and mount?

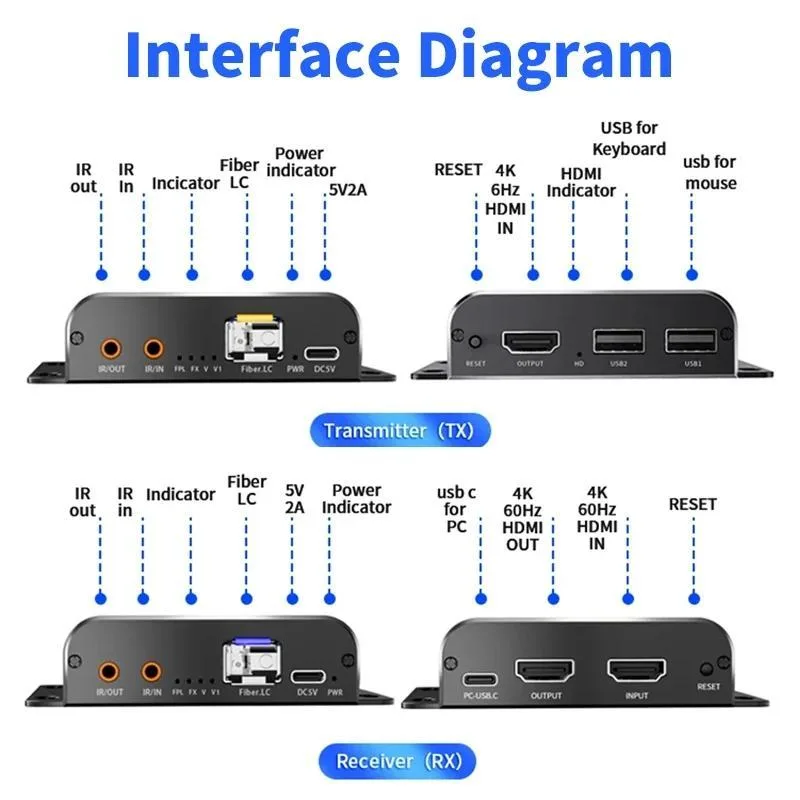

Each side uses an LC SFP module for fibre, one HDMI input or output plus an HDMI loop-out on the transmitter, a USB data cable for KVM, and a 12 V/1 A DC power adapter.
