Compact gray USB-C docking station with M.2 SSD slot, HDMI, SD/TF card reader and multiple USB ports

Jansicotek

Jansicotek EHB08 8-in-1 USB-C Docking Station with M.2 Enclosure

SKU CH-E97M-92N16

An 8-port USB-C dock adds 4K HDMI, 10 Gbps USB-A and USB-C ports, 100 W pass-through charging, SD and TF card slots, plus an M.2 enclosure for NVMe or SATA SSDs up to 2280 length

  • ColorGray
  • TypeUSB / Ethernet
  • StandardsUSB 3.1
  • Max Devices Supported8-Port
  • Thunderbolt 3Yes
  • Ports[8 in 1 Laptop Docking Station] include 1xPD100watts input,
  • Add an M.2 NVMe or SATA SSD up to 2280 for fast local storage
  • Charge the host laptop at up to 100 W while using all ports
  • Connect a 4K display at 30 Hz through the HDMI 1.4 output
  • Transfer files at up to 10 Gbps via USB 3.2 Gen 2 Type-A and Type-C
  • Read SD and TF cards directly with the built-in card reader

What this dock adds to a USB-C laptop

The Jansicotek EHB08 is an 8-in-1 USB-C docking station that combines an M.2 NVMe and SATA SSD enclosure with video, data and power ports. It suits mobile professionals who need extra storage, a 4K display connection and legacy card-reader support from a single compact hub.

Ports and expansion around the host

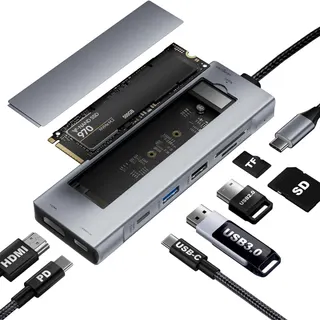

One upstream USB-C link carries 100 W Power Delivery to charge the host while driving a 4K HDMI output at 30 Hz, a 10 Gbps USB-C port, a 10 Gbps USB-A port, a 480 Mbps USB 2.0 port and an SD/TF card reader. The integrated M.2 slot accepts 2230, 2242, 2260 or 2280 drives and frees internal laptop bays for other upgrades.

Thermals, noise and power in daily use

The aluminium body passively dissipates heat from the SSD and controller without fans, so operation stays silent. Power draw scales with the attached drive and downstream devices; the 100 W PD input covers host charging and peripheral load, though SSDs larger than 1 TB may need an external supply for stable performance.

Highlights

  • Add an M.2 NVMe or SATA SSD up to 2280 for fast local storage
  • Charge the host laptop at up to 100 W while using all ports
  • Connect a 4K display at 30 Hz through the HDMI 1.4 output
  • Transfer files at up to 10 Gbps via USB 3.2 Gen 2 Type-A and Type-C
  • Read SD and TF cards directly with the built-in card reader

Specifications

BrandJansicotek
SeriesEHB08
ModelEHB08
ColorGray
TypeUSB / Ethernet
StandardsUSB 3.1
Max Devices Supported8-Port
Thunderbolt 3Yes
Ports[8 in 1 Laptop Docking Station] include 1xPD100watts input, 1xUSB3.2 Gen2 10Gbps, 1xUSB 2.0 480Mbps, 1xType-C 10Gbps, 1xHDMI1.4 4K@30Hz, 1xM.2 SSD enclosure,SD/TF ports.
?
Transfer RateUp to 10 Gbps
Supported CardsSD/TF card reader
Operating System SupportedWindows 11/10/8.1/8/XP/7, macOS, iPad OS, Chrome OS, Linux
Dimensions5.1 x 1.4 x 0.7 inches
Weight2.65 ounces
Features"8-in-1 High-Performance USB-C Expansion: 8-in-1 USB-C Hub integrates M.2 NVMe/SATA SSD enclosure, PD100W fast charging port, 4K HDMI, 10Gbps USB-C, USB 3.2 Gen 2 ports, USB 2.0, and SD/TF card reader, catering to your various connection needs.
High-Speed Transfer and Wide Compatibility: Built-in M.2 NVMe/SATA SSD interface with a transfer rate of up to 10Gbps, read/write speeds of up to 900MB+/S, and compatibility with various SSD sizes, applicable to Windows, Mac OS, Linux, and Chromebook OS.
?
Package Contents8-in-1 USB C Docking Station

Questions about this item

What SSD lengths fit the built-in M.2 slot?

The enclosure accepts 2230, 2242, 2260 and 2280 form-factor M.2 drives, both NVMe and SATA.

How hot or noisy does the dock get during all-day operation?

The unit has no fan; it relies on its aluminium body for passive cooling, so it stays silent and warm to the touch under sustained 10 Gbps transfers and 100 W charging.

What host port and cable are required for the dock to function?

A host USB-C port that supports USB 3.1 or Thunderbolt 3 and a USB-C cable rated for at least 10 Gbps data and 100 W power delivery.
