Black rectangular box with six HDMI inputs, one output, front buttons and IR remote

Jansicotek

Jansicotek 4K HDMI Multiviewer Switch 6x1 with IR Remote Control

SKU CH-1J0D-SAMZE

A 6-input HDMI multiviewer that shows up to six sources simultaneously on one screen with eight layout modes and seamless switching via IR remote or front-panel buttons

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out6 HDMI
  • SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
  • Display six sources simultaneously on one screen with 6x1 multiview layout
  • Switch instantly between eight preset viewing modes via IR remote
  • Supports 4K resolution at 30Hz for sharp multi-source monitoring
  • Handles 24, 30, 36-bit colour depth for accurate video reproduction
  • Passes DTS-HD, Dolby TrueHD, Dolby AC3 and DSD audio formats intact

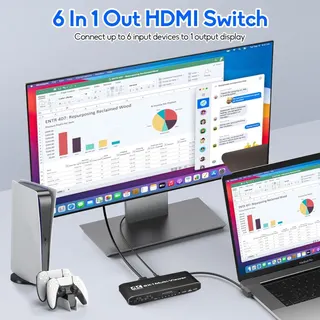

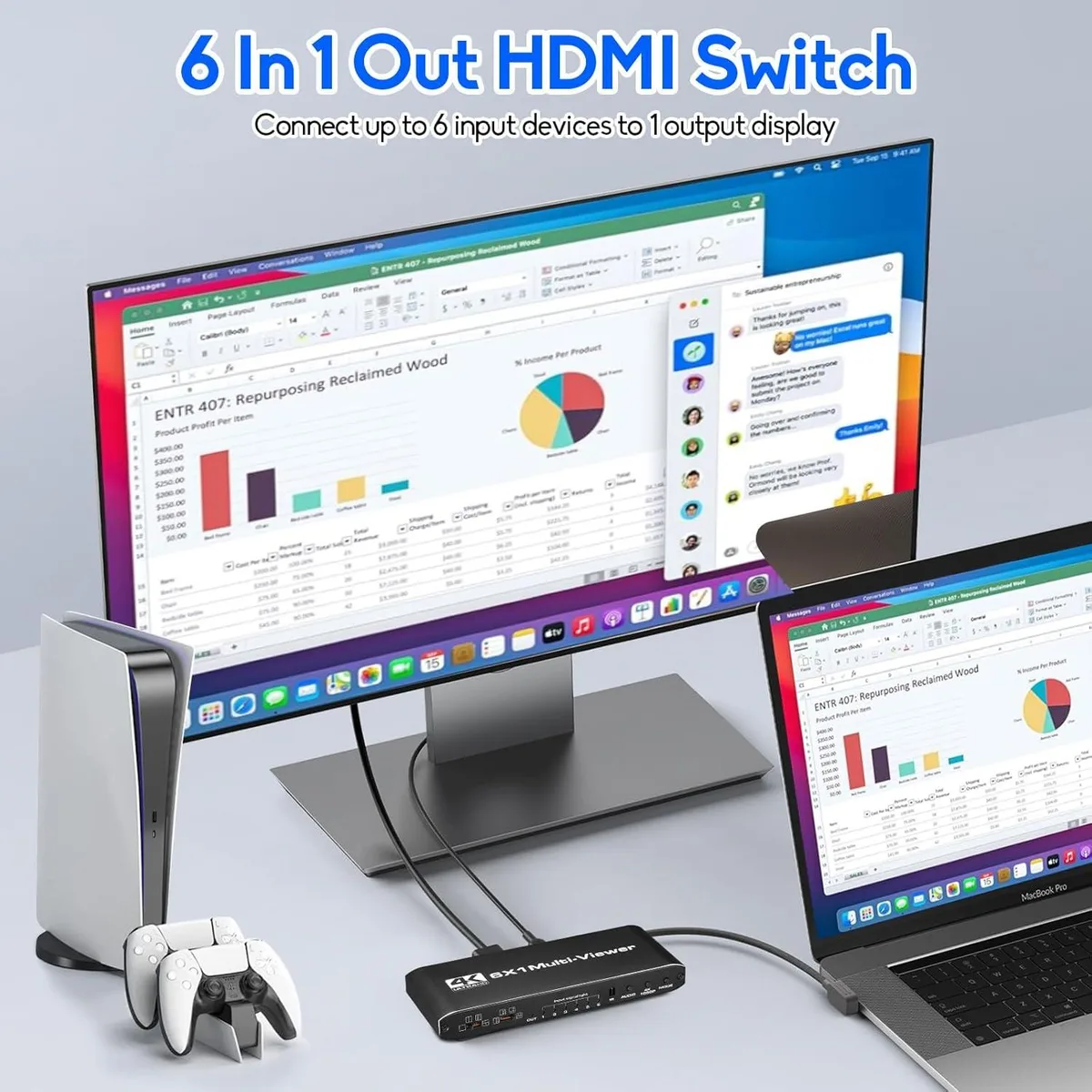

Six-Input HDMI Multiviewer

The Jansicotek 6x1 HDMI multiviewer combines six HDMI sources onto a single display with seamless switching. It supports 4K at 30 Hz, 1080p at 60 Hz and a range of legacy resolutions down to 480i. Eight preset layouts include full-screen, 2x1, 3x1, 4x1, 5x1 and 6x1 split views. Front-panel buttons and an IR remote provide flexible control for meeting rooms, control centres or multi-system streaming setups.

Replaces Separate Switch And Splitter

A single unit handles both source selection and simultaneous multi-view output, removing the need for a separate matrix switch and video wall processor. The jump is worth it when operators must monitor several PCs, consoles or cameras on one screen without latency between sources. It does not suit buyers who need independent routing of each input to different displays.

Sustained Multi-Channel Operation

The switcher maintains synchronous audio and video across all six inputs during continuous 24-bit, 30-bit or 36-bit colour operation. Seamless transitions between layouts avoid frame drops during extended sessions. A 5 V 2.1 A power adapter supplies stable current for uninterrupted performance in permanent installations.

Highlights

  • Display six sources simultaneously on one screen with 6x1 multiview layout
  • Switch instantly between eight preset viewing modes via IR remote
  • Supports 4K resolution at 30Hz for sharp multi-source monitoring
  • Handles 24, 30, 36-bit colour depth for accurate video reproduction
  • Passes DTS-HD, Dolby TrueHD, Dolby AC3 and DSD audio formats intact

Specifications

BrandESTONE
ModelOZJQF2
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out6 HDMI
SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i.
Support video color format:24bit/ 30bit/ 36bit.
Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD.
Support audio output format: LPCM,PCM2.
Max bandwidth:330Mhz.
Max bandrate: 10.2Gbps.
Input/Output TMDS signal:0.5~1.5V p-p(TTL).
Input/Output DDc signal: 5Volts p-p(TTL).
Input cable distance: =15mAWG24 HDM standard cable.
Output cable distance: =24mAWG24 HDMl standard cable.
Max working current: 12V/0.6A.
Package Contents6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

How many HDMI inputs and outputs does the unit provide for rack or desk mounting?

The switcher has six HDMI inputs and one HDMI output, so plan for seven cable connections at the rear panel.

What is the correct sequence to power up the six sources and the multiviewer so the EDID handshake succeeds?

Connect all six sources first, then attach the 5 V 2.1 A power adapter to the multiviewer, and finally power on each source device.

Which consumable item will need periodic replacement to keep the IR remote working?

The remote control ships without a battery; insert a standard coin cell and replace it when the control range noticeably shortens.
