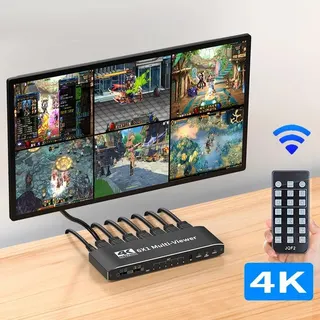

Black rectangular metal box with six HDMI inputs one output front buttons and IR sensor

Jansicotek

Jansicotek 4K HDMI Multiviewer 6x1 with IR Remote

SKU CH-3XP1-3M9AT

Displays six HDMI sources on one screen with eight viewing modes and seamless 4K30 switching via IR remote

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out6 HDMI
  • SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
  • View 6 HD sources simultaneously on one screen
  • Switch 6 inputs seamlessly via IR remote or front button
  • Supports 4K at 30 Hz and 1080p at 60 Hz
  • Handles 24, 30 and 36 bit colour depths
  • Transmits HDMI signals up to 15 m with 19+ 28 AWG cable

6-Input HDMI Multiviewer for Multi-Source Monitoring

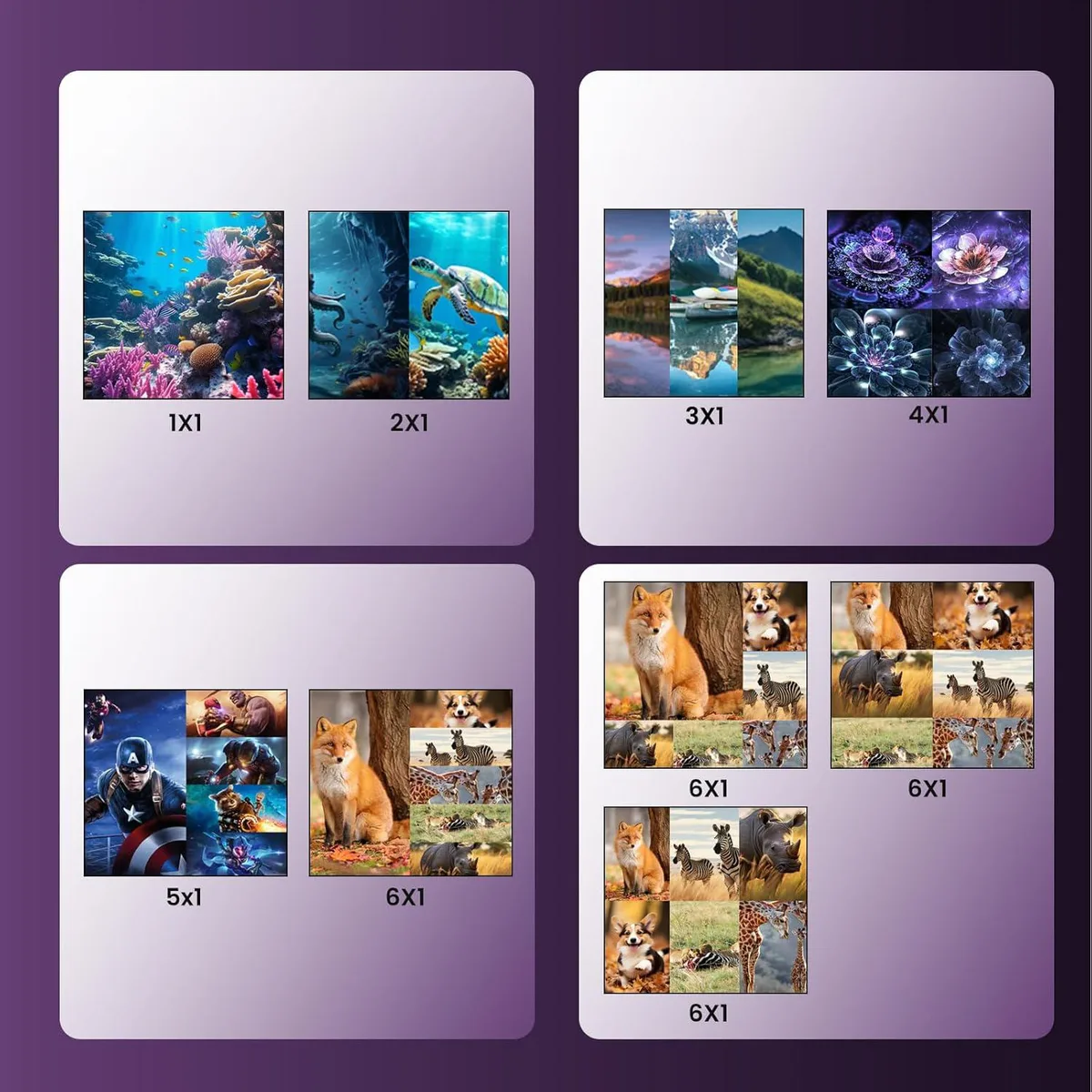

The Jansicotek 4K HDMI Multiviewer 6x1 accepts six HDMI sources and combines them onto a single display. It is built for control rooms, security desks and presentation setups where operators must watch several cameras or players at once. Eight preset layouts cover full-screen, 2x1, 3x1, 4x1, 5x1 and 6x1 arrangements. The unit ships new with an IR remote, a 5V/2.1A power adapter and a user manual.

Fits a Rack or Desk with Standard HDMI Cabling

Each of the six inputs and the single output uses a regular HDMI connector, so the device slots into existing cable runs without adapters. High-speed HDMI cables up to 15 metres are supported when using 19+ core, 28 AWG wire. The box only needs a nearby mains socket for the supplied power supply; it does not require a PC, software or network connection to operate. Front-panel buttons give local switching if the remote is misplaced.

Seamless Switching at 4K30

The scaler maintains sync when changing layouts, so video walls and monitoring walls stay glitch-free during long shifts. Output resolution can be set to 4K at 30 Hz or 1080p at 60 Hz, both with 24/30/36-bit colour depth. Audio passes through in DTS-HD, Dolby TrueHD, Dolby Digital or DSD formats without added latency. HDCP 1.4 compliance keeps protected content flowing across all six channels simultaneously.

Highlights

  • View 6 HD sources simultaneously on one screen
  • Switch 6 inputs seamlessly via IR remote or front button
  • Supports 4K at 30 Hz and 1080p at 60 Hz
  • Handles 24, 30 and 36 bit colour depths
  • Transmits HDMI signals up to 15 m with 19+ 28 AWG cable

Specifications

BrandESTONE
ModelOZJQF2
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out6 HDMI
SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i.
Support video color format:24bit/ 30bit/ 36bit.
Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD.
Support audio output format: LPCM,PCM2.
Max bandwidth:330Mhz.
Max bandrate: 10.2Gbps.
Input/Output TMDS signal:0.5~1.5V p-p(TTL).
Input/Output DDc signal: 5Volts p-p(TTL).
Input cable distance: =15mAWG24 HDM standard cable.
Output cable distance: =24mAWG24 HDMl standard cable.
Max working current: 12V/0.6A.
Package Contents6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

How many HDMI sources can the Jansicotek 4K HDMI Multiviewer 6x1 display simultaneously on one screen?

The multiviewer accepts six HDMI inputs and can show all six sources at once in its six-screen viewing mode, with additional 2x1, 3x1, 4x1 and 5x1 layouts available.

What is the maximum HDMI cable length supported for reliable 4K signal transmission?

High-speed HDMI cables up to 15 metres (19+1, 28 AWG) are supported for both input and output connections at 4K@30Hz.

Does the unit include a power supply, or must the buyer provide one separately?

A 5 V / 2.1 A power adapter is included in the package, so no separate power supply is required.
