Jansicotek

Jansicotek 4K HDMI KVM USB Extender Cat6 60m 18Gbps SFP transceiver

SKU CH-1GYY-KPW05

Extends 4K HDMI and USB keyboard-mouse control up to 60 metres over a single Cat6 cable with zero latency

  • Device TypeTransceiver
  • StandardsIEEE-568B
  • Transfer Rate18Gbps
  • Power AdapterDC 12V/1A
  • FeatureLong range transmission:up to 60m/196ft over a single AWG23
  • Package ContentsHDMI KVM extender transmitter x1 HDMI KVM extender receiver
  • Extend control 60 metres over one CAT6 cable
  • 4K@60Hz video with zero latency uncompressed
  • Keyboard and mouse operate remotely in sync
  • HDR10+ Dolby Vision Dolby Atmos pass-through
  • Single 12V adapter powers transmitter and receiver

4K HDMI KVM Extender over Cat6

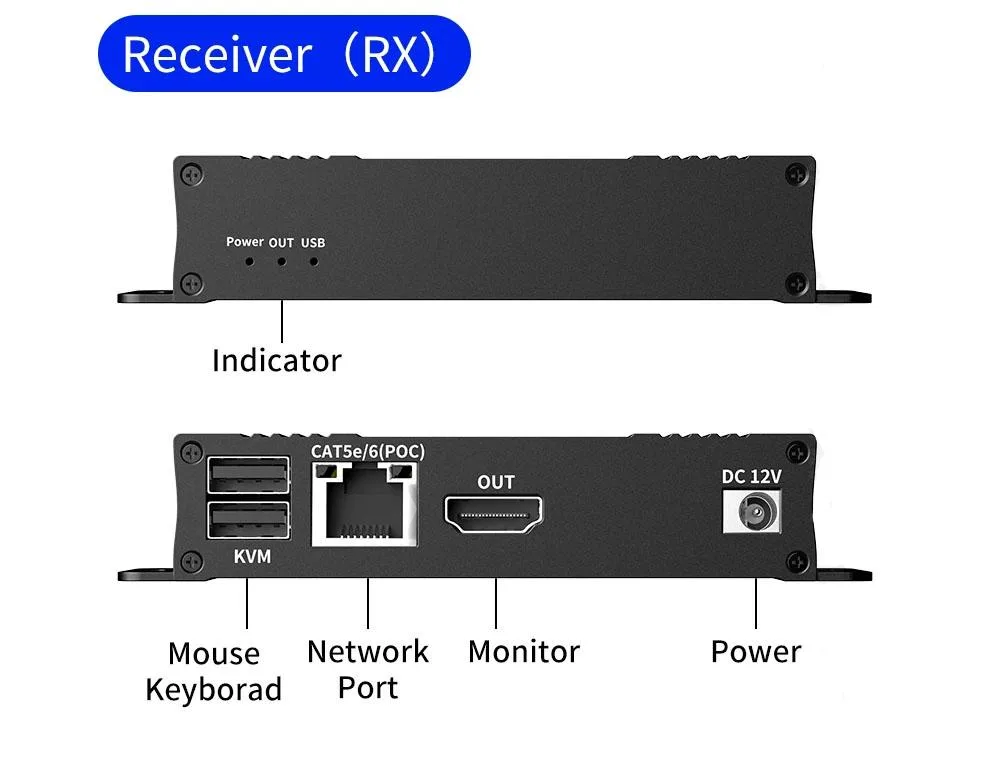

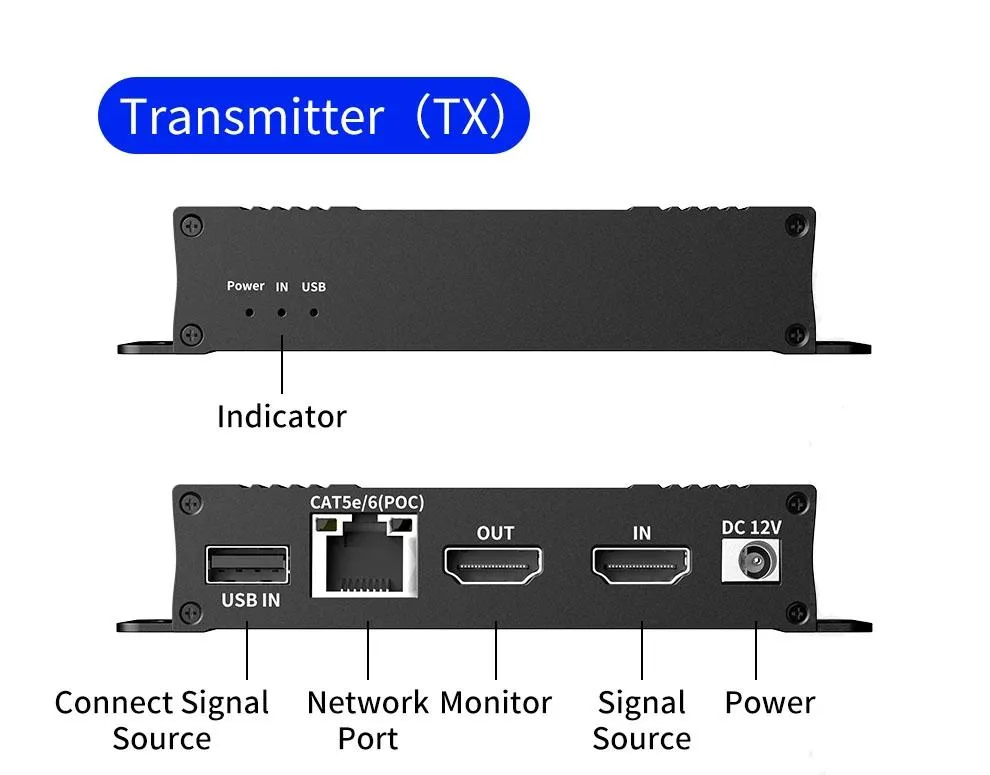

This Jansicotek transceiver extends HDMI video and USB keyboard and mouse signals up to 60 metres over a single AWG23 Cat6 cable. It delivers 4K resolution at 60 Hz with zero latency and supports HDR 10+, Dolby Vision and Dolby Atmos. The transmitter includes a local HDMI loop output for a nearby display. Power over cable requires only one 12 V adapter for the pair.

Cable and power requirements

Verify that you have a solid AWG23 Cat6 cable run no longer than 60 metres between the two units. The transmitter needs a DC 12 V 1 A supply; the receiver draws power through the same Cat6 link. Ensure both ends have an HDMI source or display and USB ports for keyboard and mouse. The extender follows IEEE-568B wiring and is plug-and-play with no software drivers.

Upgrades from short-range direct connections

This kit replaces a direct HDMI and USB cable when the computer and workstation must be separated by more than a few metres. It is worth the jump when you need uncompressed 4K 60 Hz video and responsive remote control across a room or between floors. It does not suit buyers who need multi-monitor KVM switching or fibre-optic distances beyond 60 metres.

Highlights

  • Extend control 60 metres over one CAT6 cable
  • 4K@60Hz video with zero latency uncompressed
  • Keyboard and mouse operate remotely in sync
  • HDR10+ Dolby Vision Dolby Atmos pass-through
  • Single 12V adapter powers transmitter and receiver

Specifications

Device TypeTransceiver
StandardsIEEE-568B
Transfer Rate18Gbps
Power AdapterDC 12V/1A
FeatureLong range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
Video resolution:Up to 576P,720P,1920x1080P@60Hz,3840x2160@60Hz;
HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12/24 Bit;
Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
POC function:Power over CAT cable,only need one power adapter;
HDMI loop out function:The transmitter with one HDMI local loop out;
Uncompressed mode:ZERO Delay,No loss;
KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
Male to male:one TX to one RX applicataion;
Video standard:compliance
Package ContentsHDMI KVM extender transmitter x1
HDMI KVM extender receiver x1
Power adapter x1
User manual x1

Questions about this item

What cables and accessories are included, and what must I buy separately?

The box contains a transmitter, a receiver, one 12V/1A power adapter and a user manual. You must supply your own AWG23 CAT6 cable up to 60m or 196ft for the link between the two units.

The specs list several resolutions up to 3840x2160@60Hz — which one should I choose for my 4K display?

Select 3840x2160@60Hz for full 4K 60Hz performance; the extender also supports 1920x1080@60Hz and lower resolutions such as 1280x720@60Hz if your source or display requires them.

The headline 18Gbps transfer rate is quoted — what does that mean for actual video quality on my screen?

18Gbps carries uncompressed 4K@60Hz with HDR 10+, Dolby Vision, 8/10/12/24-bit Deep Color and multi-channel audio including LPCM 7.1 and Dolby Atmos with zero latency.
